Wastegate Control Solenoid Valve: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

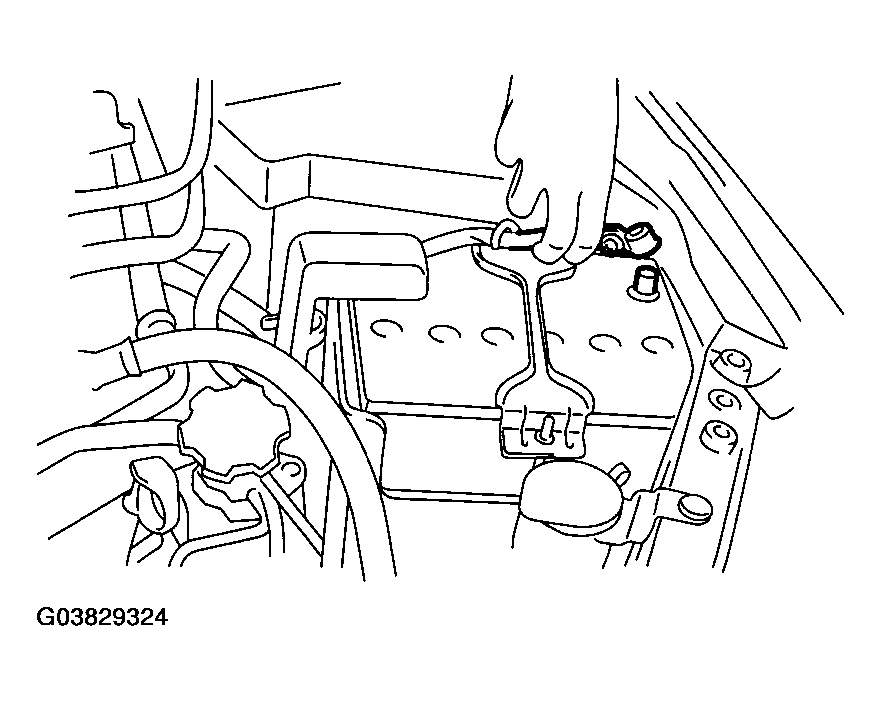

    Fig 1: Disconnecting Ground Cable From Battery
    G03829324Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from wastegate control solenoid valve (A).
  4. Disconnect the pressure hose (B) from waste-gate control solenoid valve.
  5. Remove the wastegate control solenoid valve from bracket.

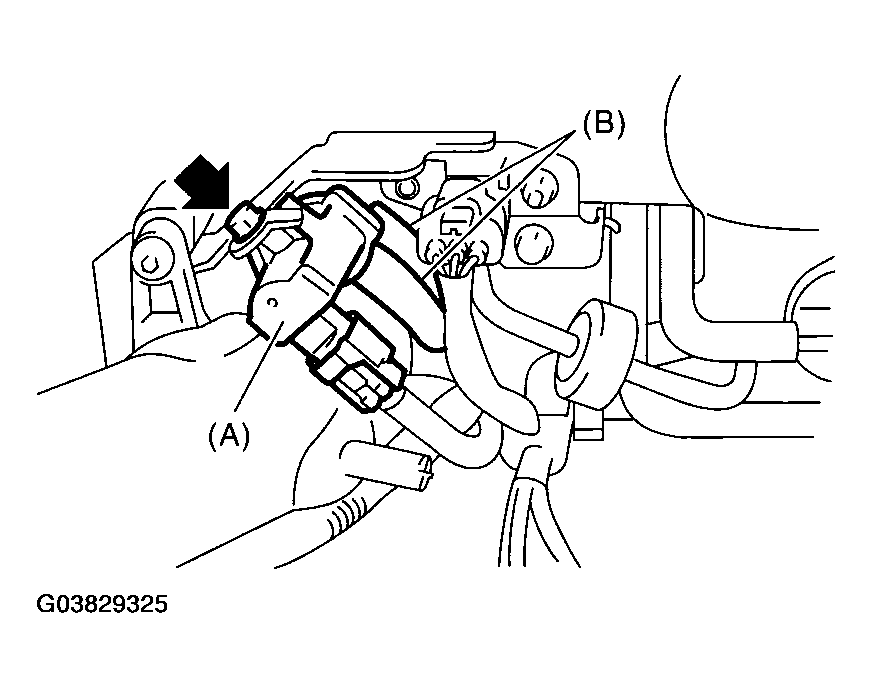

Fig 2: Removing Wastegate Control Solenoid Valve From Bracket
G03829325Courtesy of SUBARU OF AMERICA, INC.
