MT Gear Shift Lever: Disassembly

Remove the lock wires.

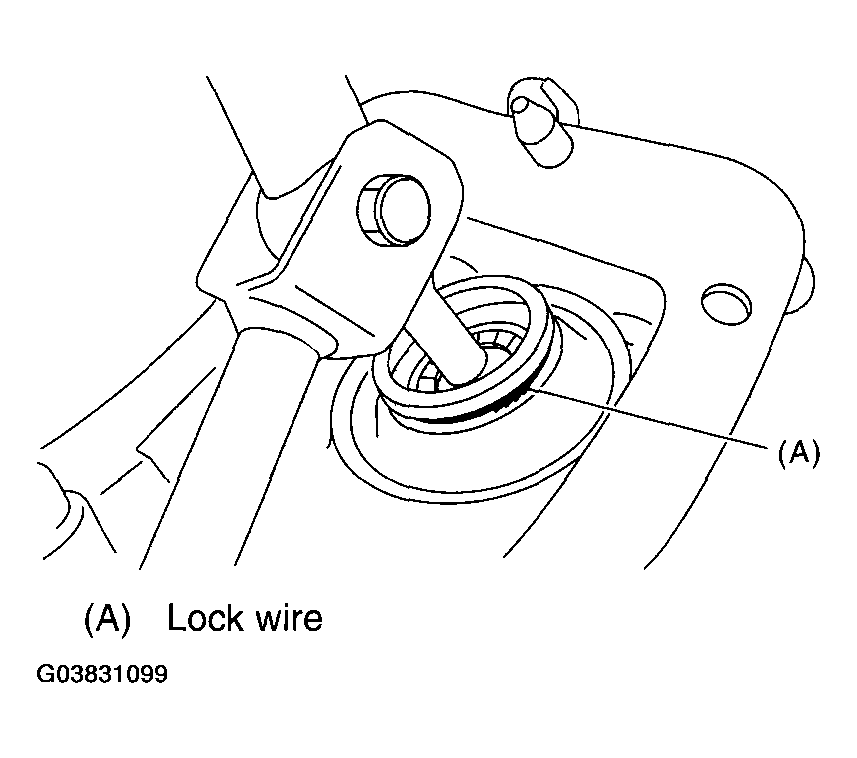

Fig 1: Removing Lock Wires
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

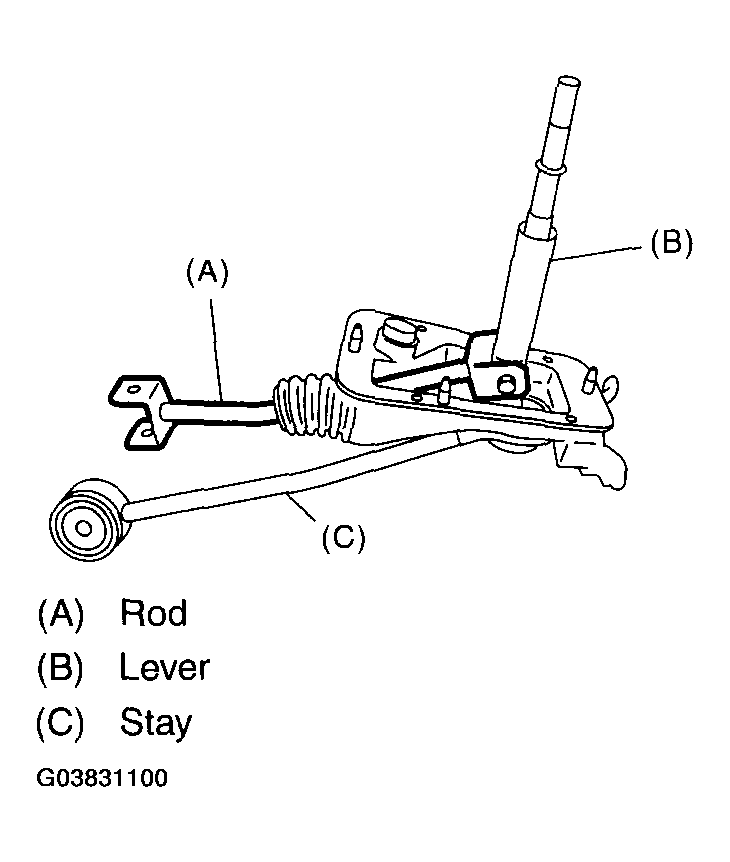

Fig 2: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

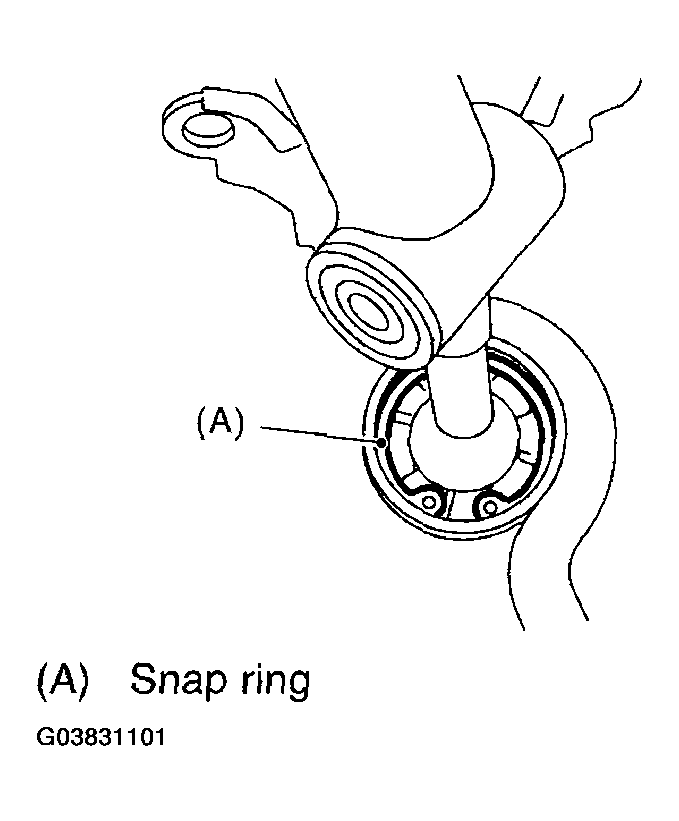

Fig 3: Removing Snap Ring From Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 4: Removing Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot, bushing and snap ring from gear shift lever.

Fig 5: Removing Boot Bushing And Snap Ring From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then remove the bushing and snap ring.

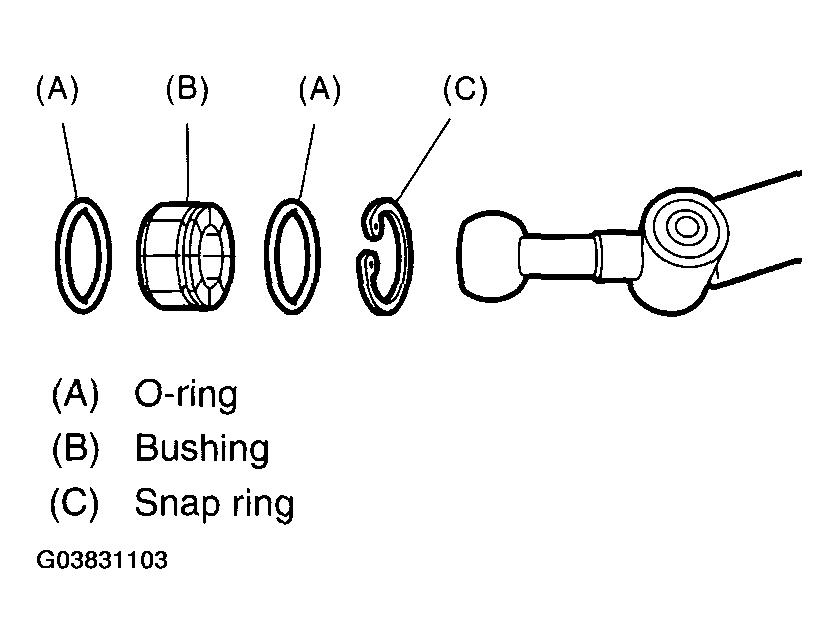

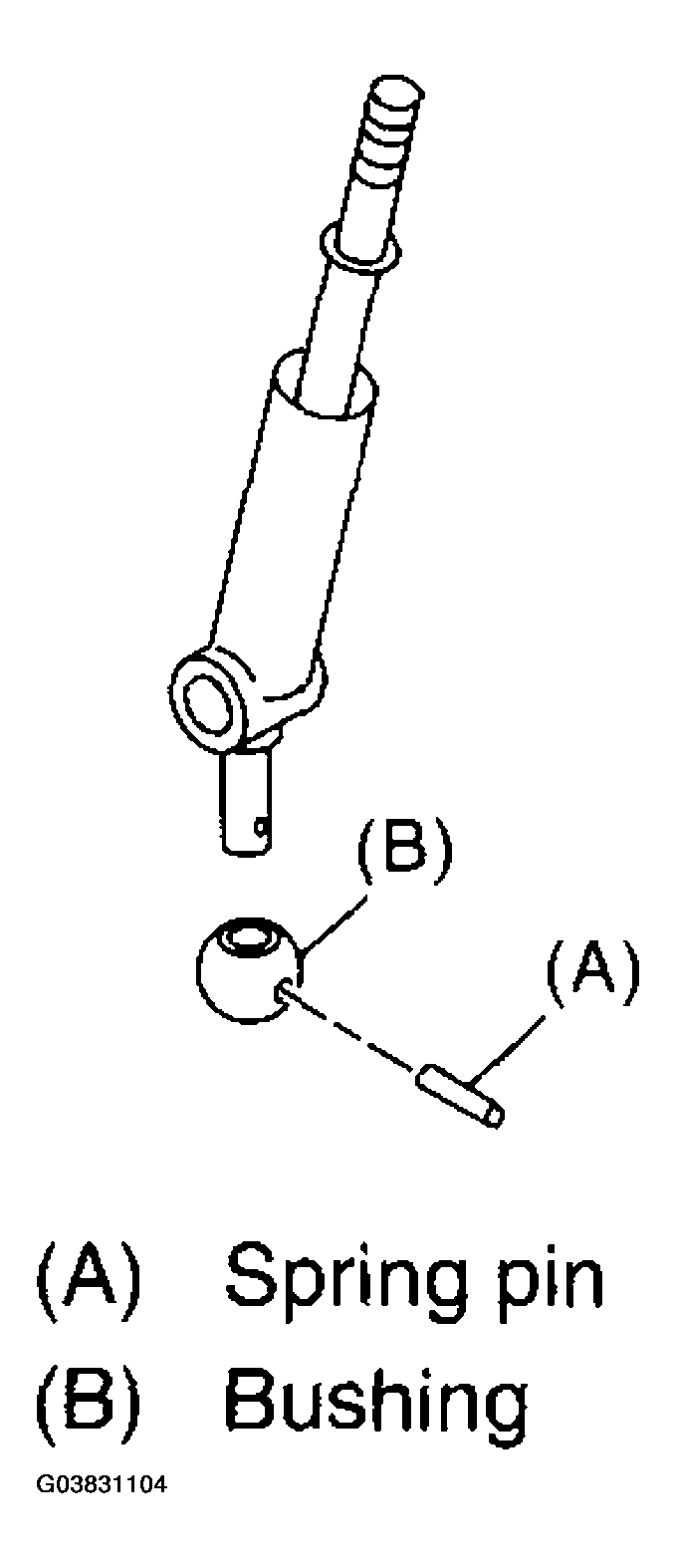

Fig 6: Removing Bushing And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from the joint.

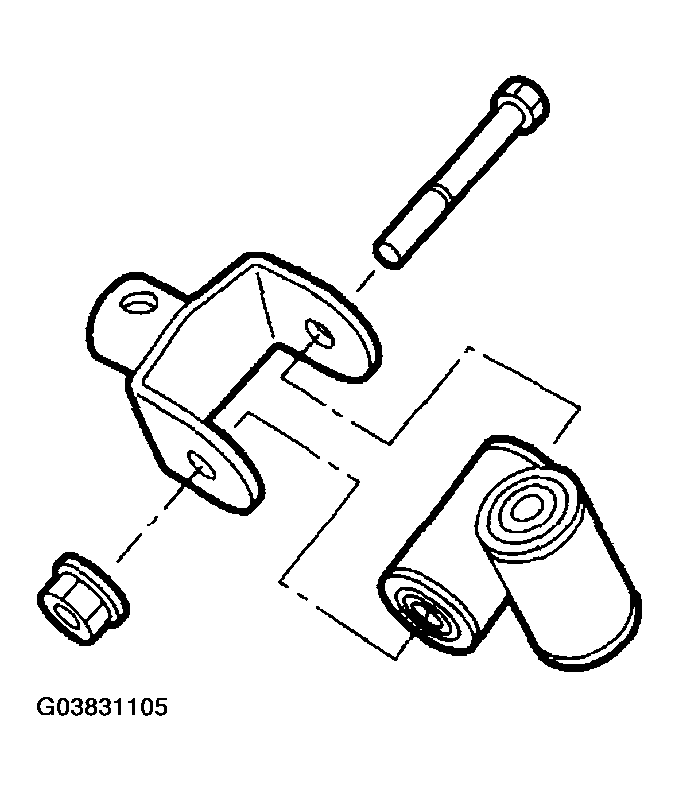

Fig 7: Removing Boss From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and spacer from boss

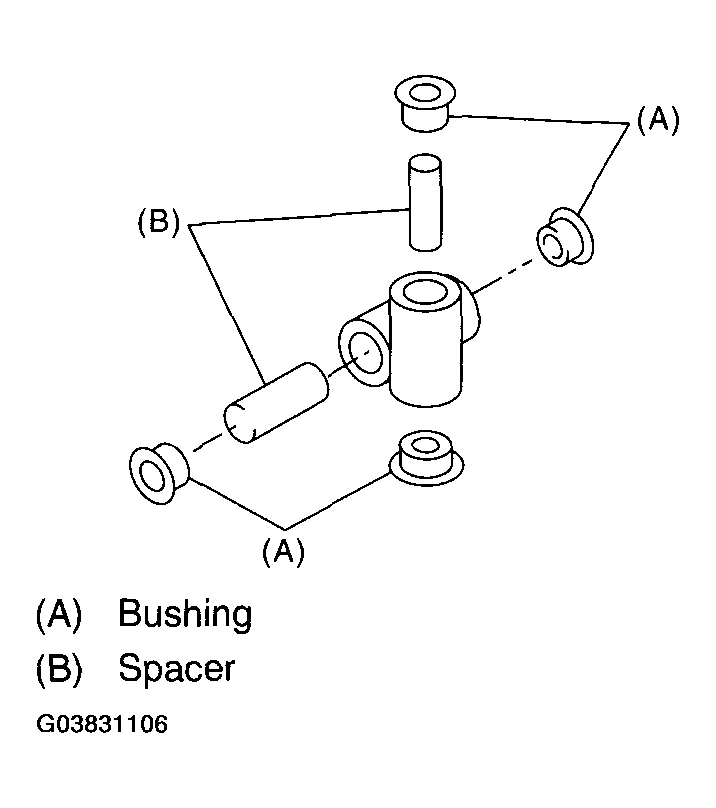

Fig 8: Removing Bushing And Spacer From Boss
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and cushion rubber from the stay.

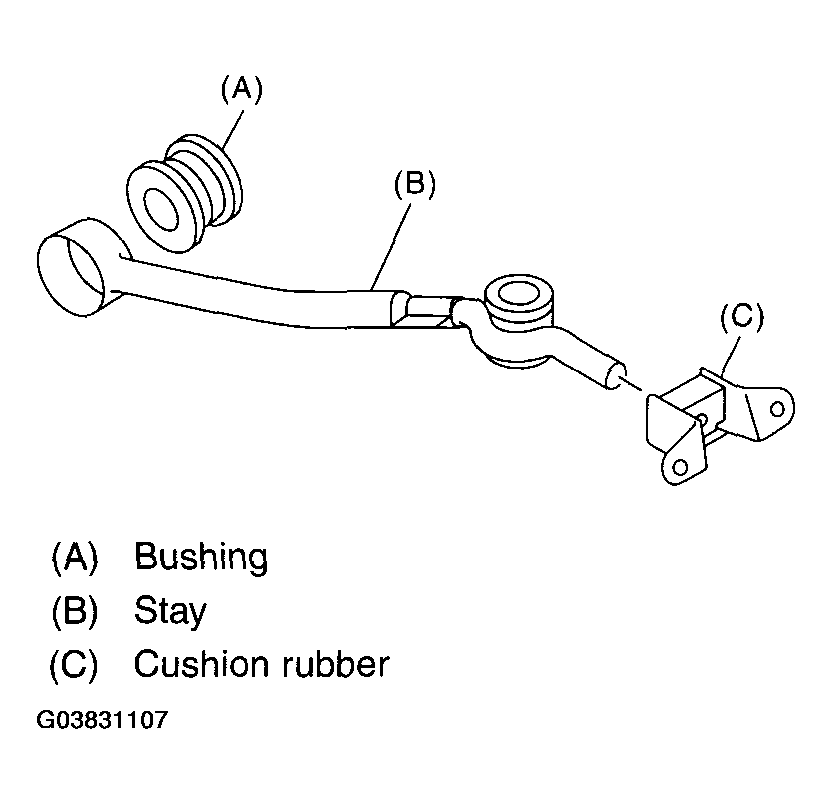

Fig 9: Removing Bushing And Cushion Rubber From Stay
