Camshaft Position Sensor: Removal

Disconnect the ground cable from battery.

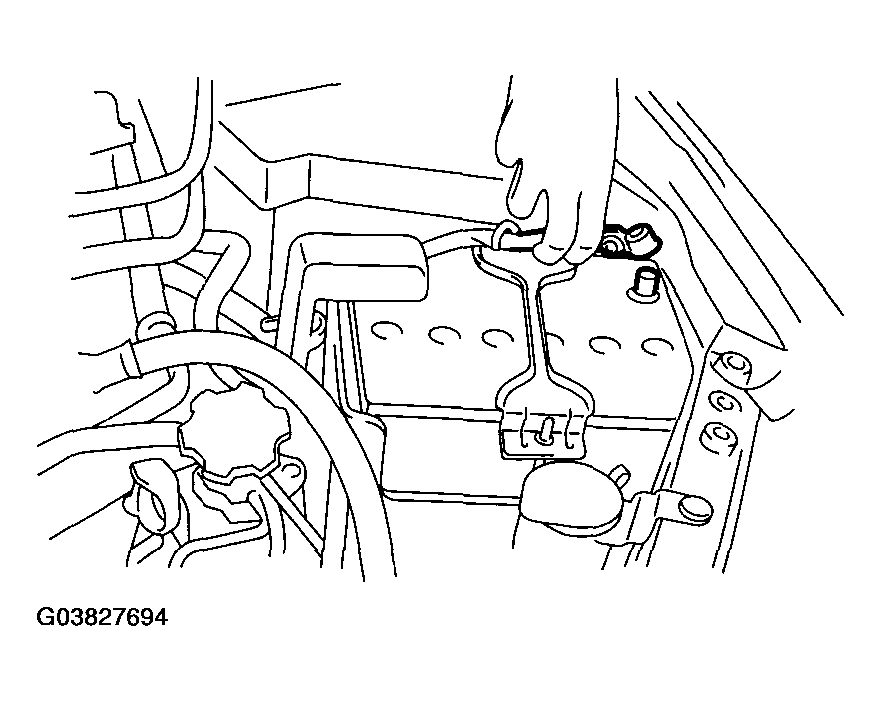

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor.

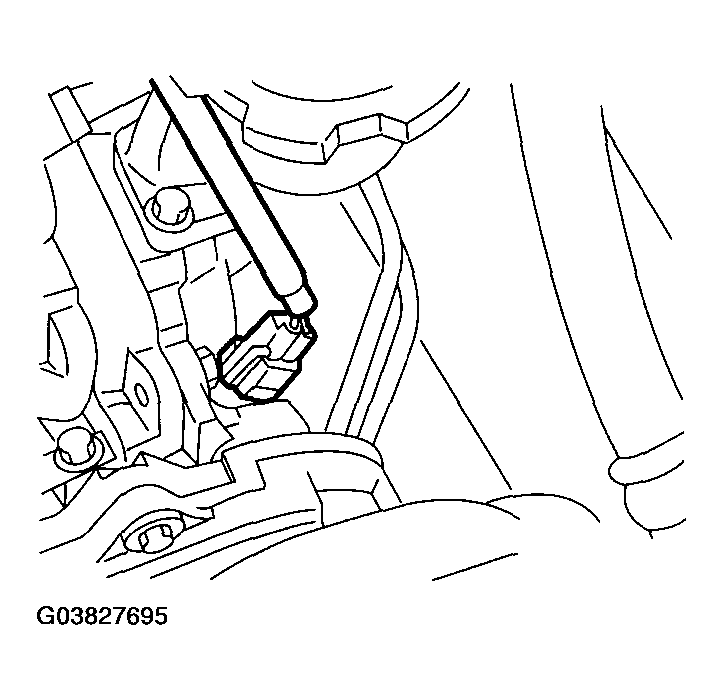

Fig 2: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs camshaft position sensor to the support.

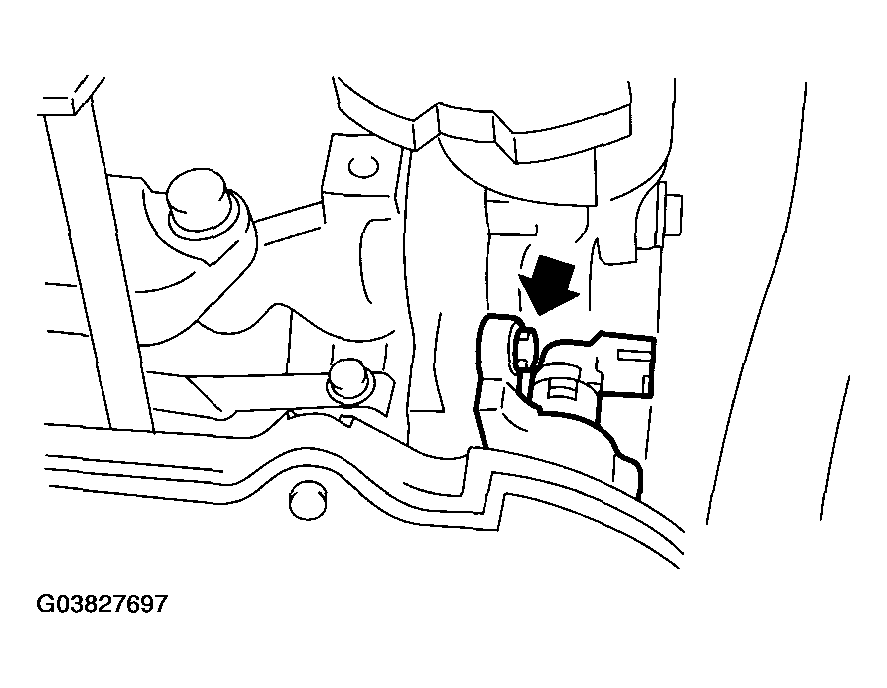

Fig 3: Removing Bolt Installing Camshaft Position Sensor To Support
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the camshaft position sensor support to camshaft cap LH.

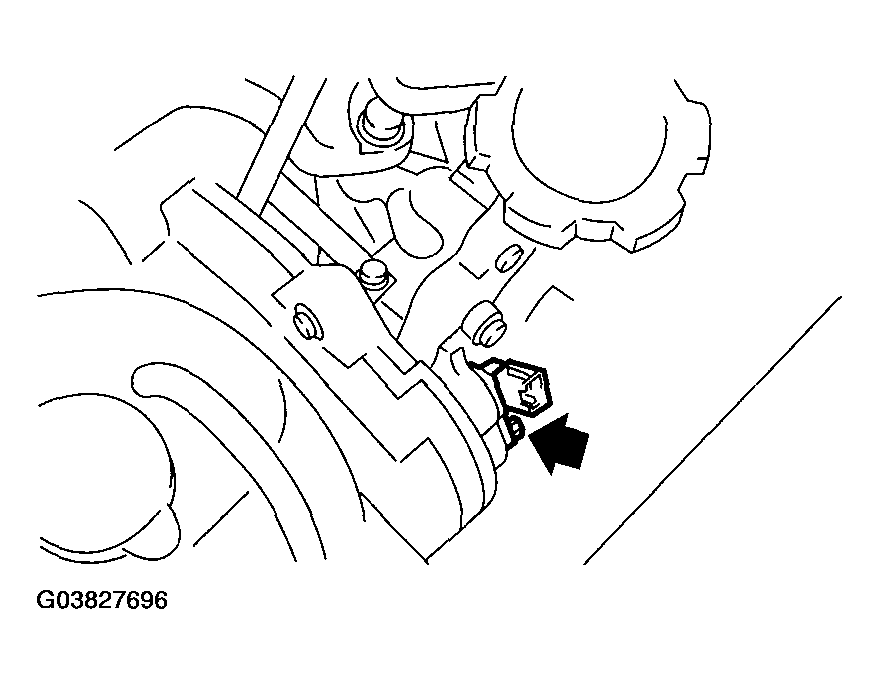

Fig 4: Removing Bolt Installing Camshaft Position Sensor Support To Camshaft Cap LH
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor and the support as a unit.
Remove the camshaft position sensor itself.

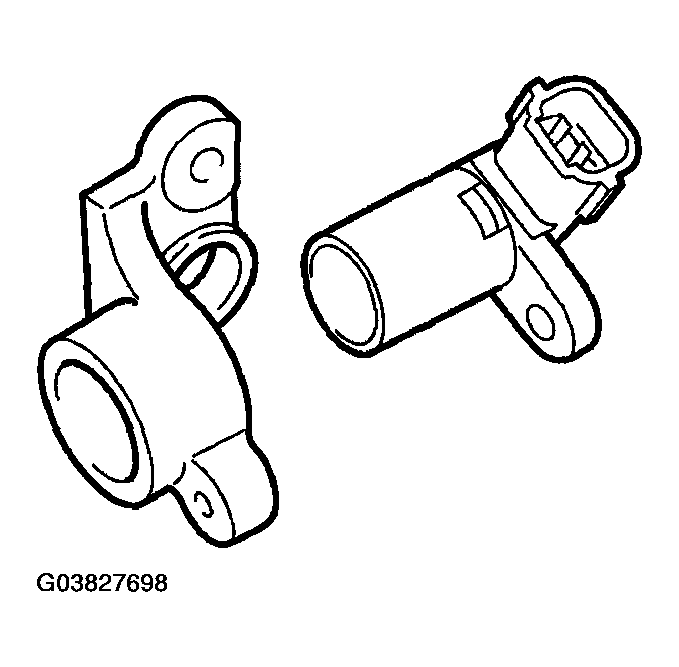

Fig 5: Removing Camshaft Position Sensor And Support
Courtesy of SUBARU OF AMERICA, INC.
