Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

1. Ensure the sealing portion is free from fuel or foreign particles before installation.
2. Tighten the nuts and bolts to specified torque in the order as shown in Fig 1 .

Tightening torque:

4.4 N.m (0.45 kgf-m, 3.2 ft-lb)

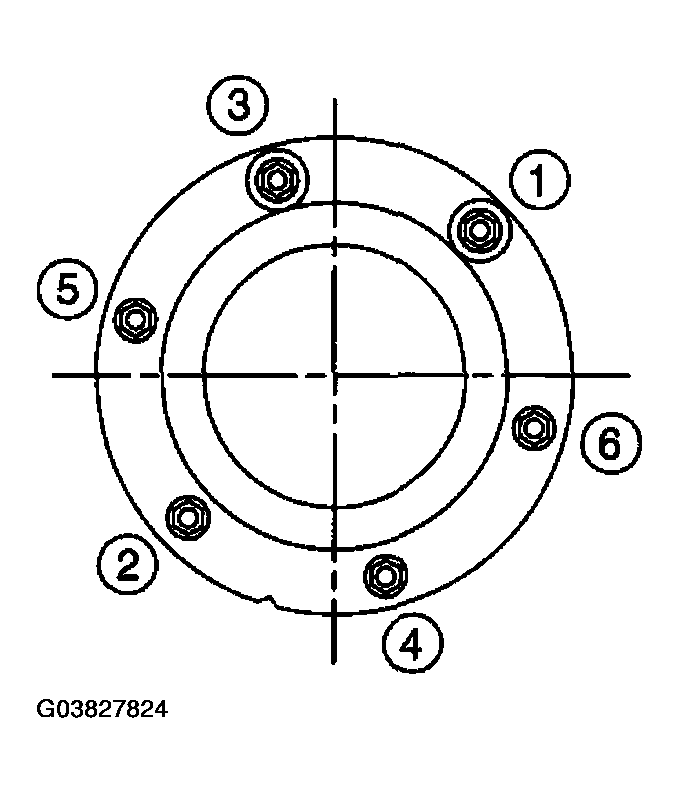

Fig 1: Identifying Order Of Tightening Nuts And Bolts To Specified Torque

Courtesy of SUBARU OF AMERICA, INC.

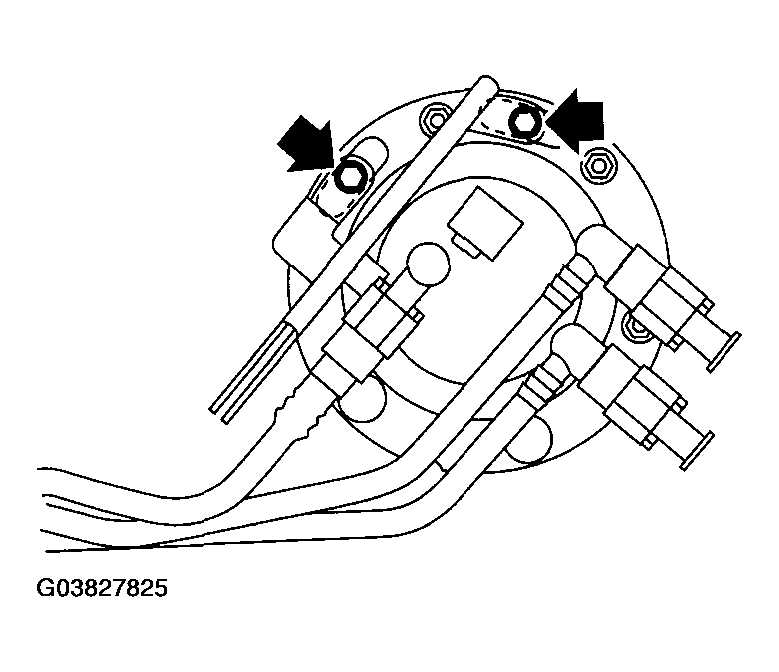

Fig 2: Tightening Nuts And Bolts To Specified Torque

Courtesy of SUBARU OF AMERICA, INC.
