Extension Case: Assembly

Press-fit new oil seal using ST and press.
ST 498057300 INSTALLER
Press-fit the dust cover.
Install the transfer clutch pipe to extension case without deforming the pipe.

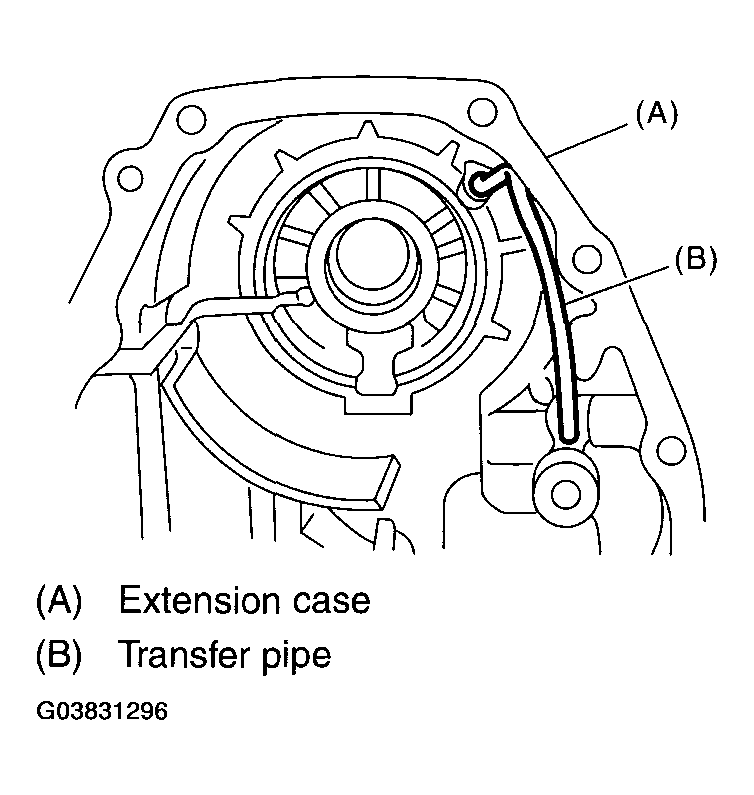

Fig 1: Installing Transfer Clutch Pipe To Extension Case Without Deforming Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly to the case.
NOTE:
- Be careful not to damage the seal ring.
- Press-fit the clutch assembly to bottom of bearing shoulder completely.

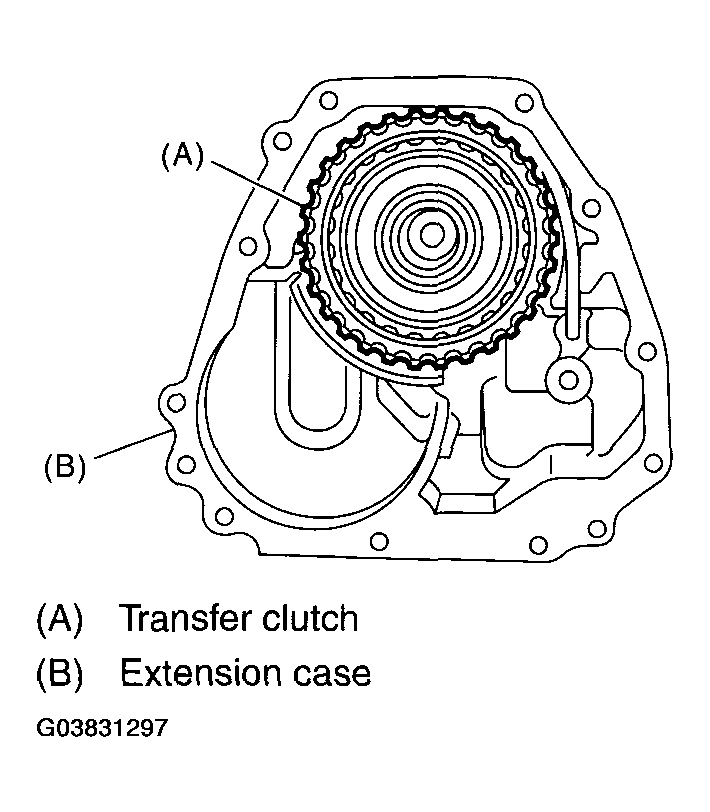

Fig 2: Fitting Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
