Fuel Filler Pipe

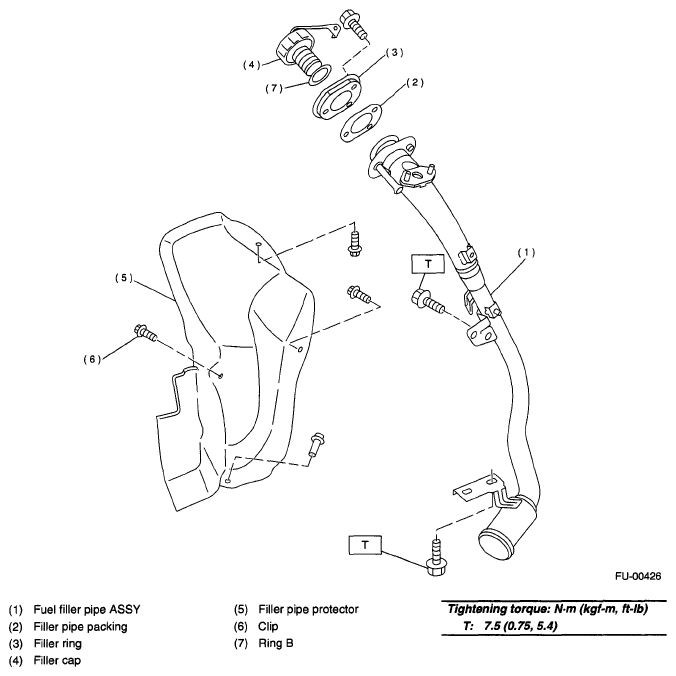

Fig 1: Fuel Filler Pipe Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
