Fuel Filler Pipe: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Drain fuel from fuel tank.
< Ref. to DRAINING FUEL , OPERATION, FUEL. >
Remove rear exhaust pipe and muffler.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

SUBARU CRC (Part No. 004301003)
1. Separate rear exhaust pipe from center exhaust pipe.

  Fig 1: Identifying Rear Exhaust Pipe And Center Exhaust Pipe
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove left and right rubber cushions.
  CAUTION: Be careful not to pull down muffler.

  Fig 2: Locating Left And Right Rubber Cushions
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove front rubber cushion and detach muffler assembly.

  Fig 3: Locating Front Rubber Cushion
  Courtesy of SUBARU OF AMERICA, INC.
Remove heat sealed cover.

Fig 4: Locating Heat Sealed Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Place transmission jack under sub frame.

Fig 5: Placing Transmission Jack Under Sub Frame
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds rear shock absorber to rear suspension arm.

Fig 6: Locating Rear Suspension Arm Bolt
Courtesy of SUBARU OF AMERICA, INC.

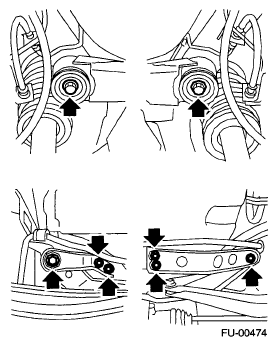

Remove bolts which hold rear sub frame on body.

Fig 7: Locating Rear Sub Frame Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the rear sub frame.
CAUTION: Be sure to lower sub frame slowly.

A = 150 mm (5.91 in)

Fig 8: Identifying Rear Sub Frame
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel filler pipe protector.

Fig 9: Identifying Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect air vent hose (A) and evaporation hose (B) from evaporation pipe assembly.
Disconnect evaporation hose (C) from pressure control solenoid valve.

Fig 10: Disconnecting Air Vent Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds evaporation pipe assembly on body.

Fig 11: Locating Evaporation Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect fuel filler hose.
Remove bolt which holds fuel pressure sensor on fuel filler pipe and remove bolt which holds fuel filler pipe on body.

Fig 12: Locating Fuel Pressure Sensor Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect canister hose from evaporation pipe assembly.

Fig 13: Disconnecting Canister Hose From Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect evaporation hose (O) from fuel filler pipe.

Fig 14: Disconnecting Evaporation Hose From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds fuel filler pipe to body.

Fig 15: Locating Fuel Filler Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel filler pipe from under side of the vehicle.
