Accelerator Pedal: Removal

  1. Disconnect ground cable from battery.
  2. Disconnect the connector.
  3. Remove the nuts which securing accelerator pedal assembly.

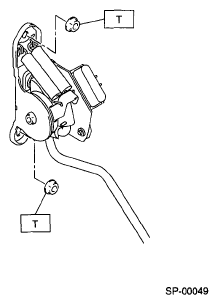

    Fig 1: Identifying Accelerator Pedal Assembly Nuts
    G04989812Courtesy of SUBARU OF AMERICA, INC.
