2.5L SOHC

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.
Clearing Trouble Codes
List of Diagnostic Trouble Code (DTC)

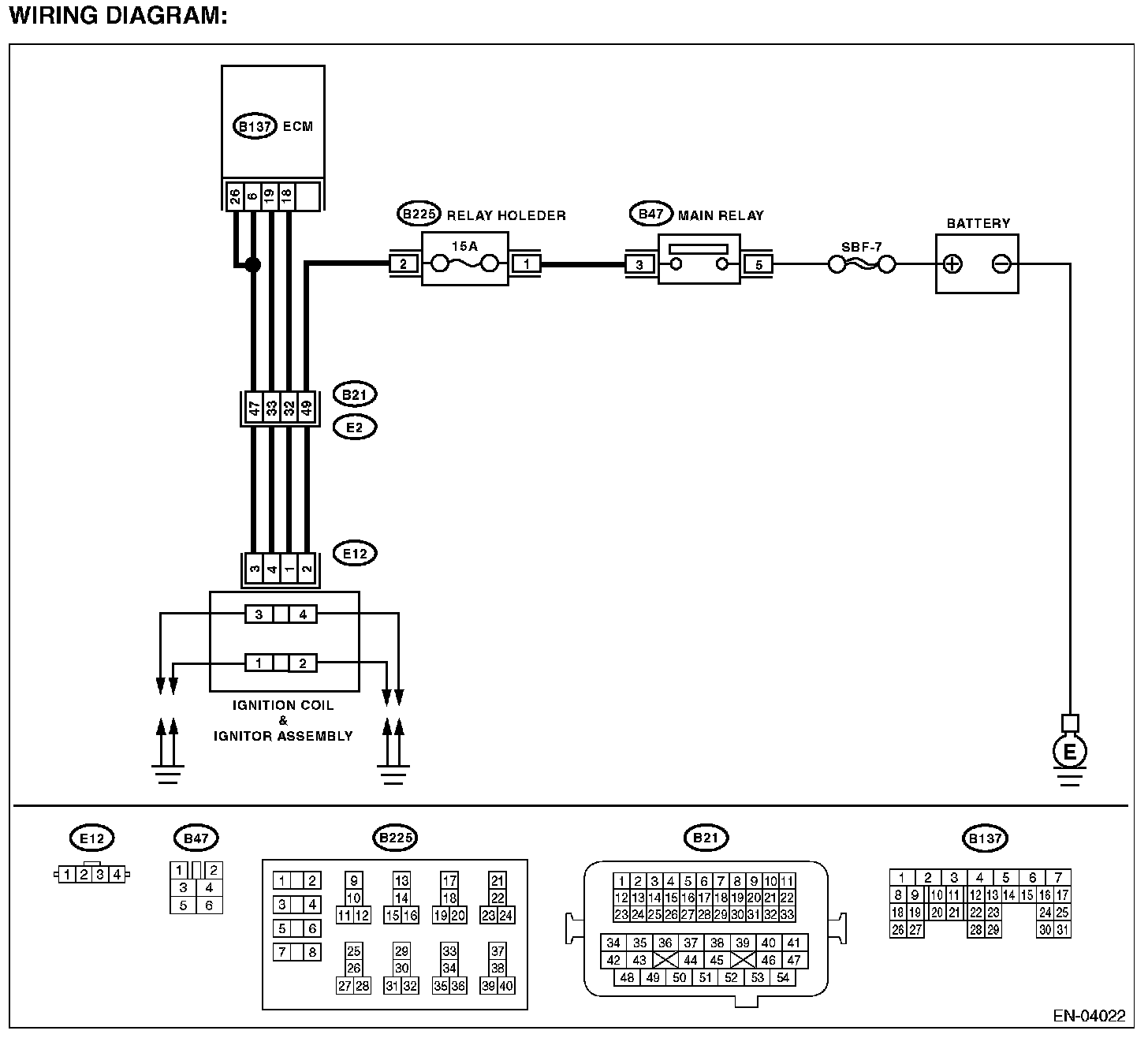

Wiring Diagram:

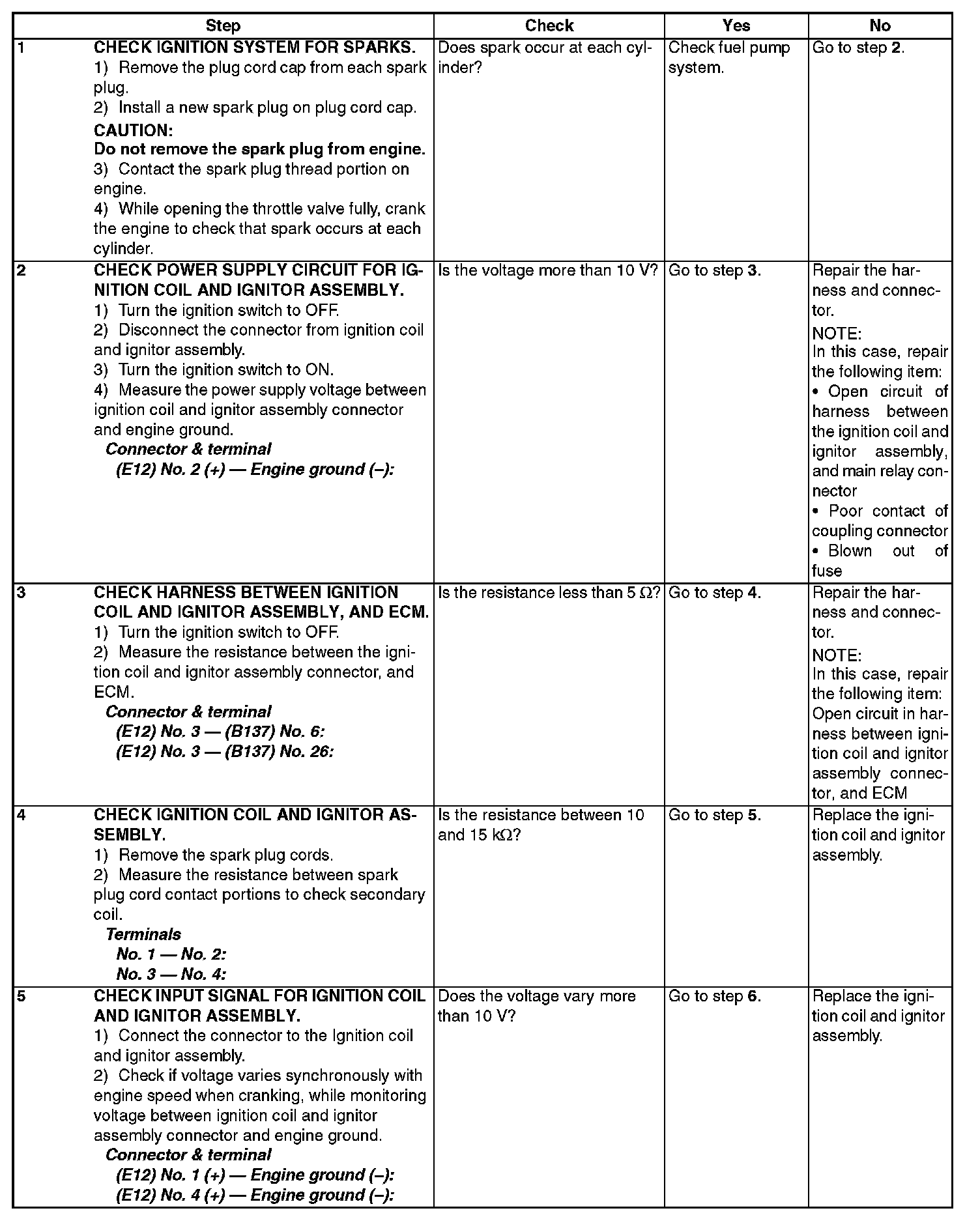

Step 1 - 5:

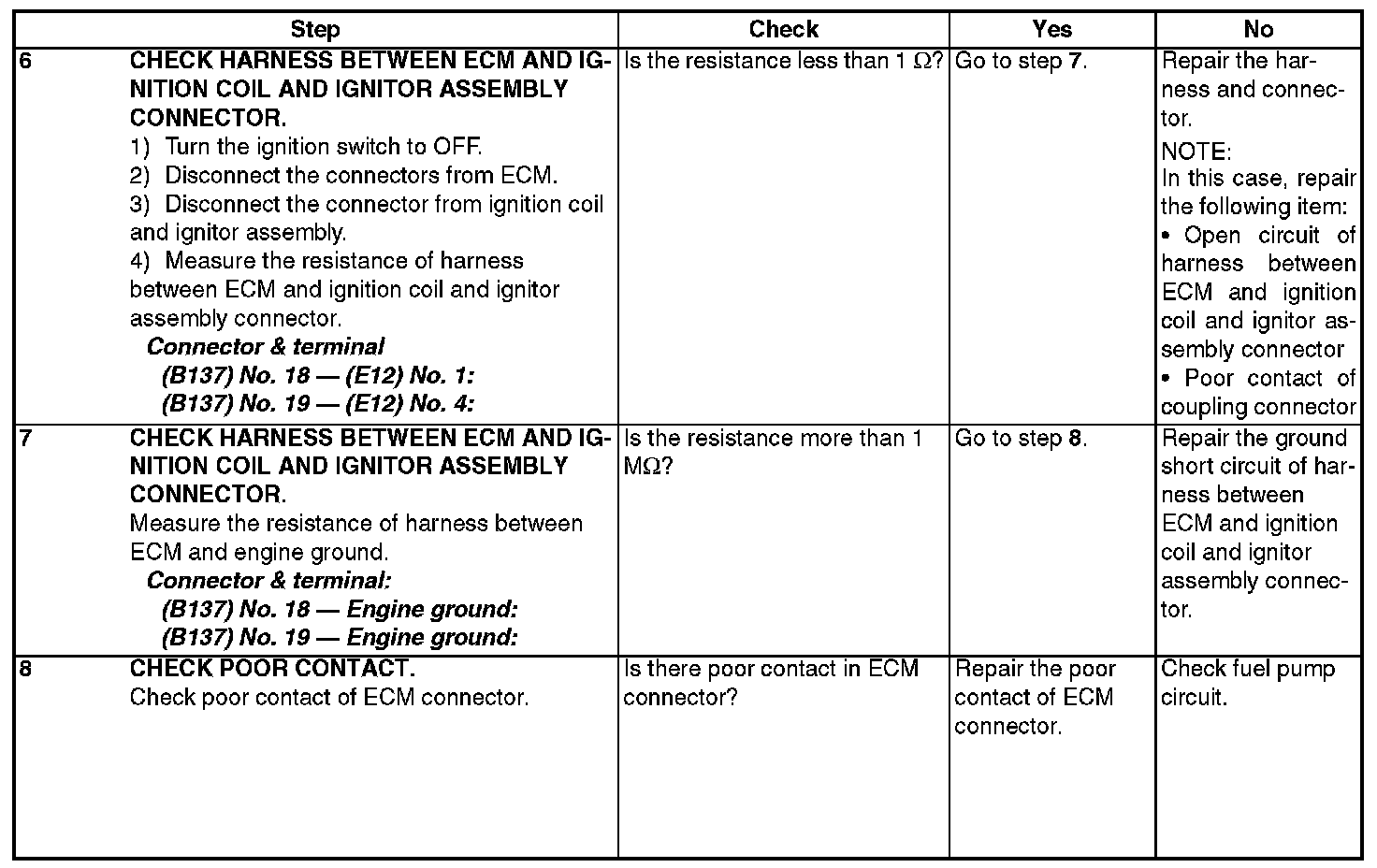

Step 6 - 8:
