Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

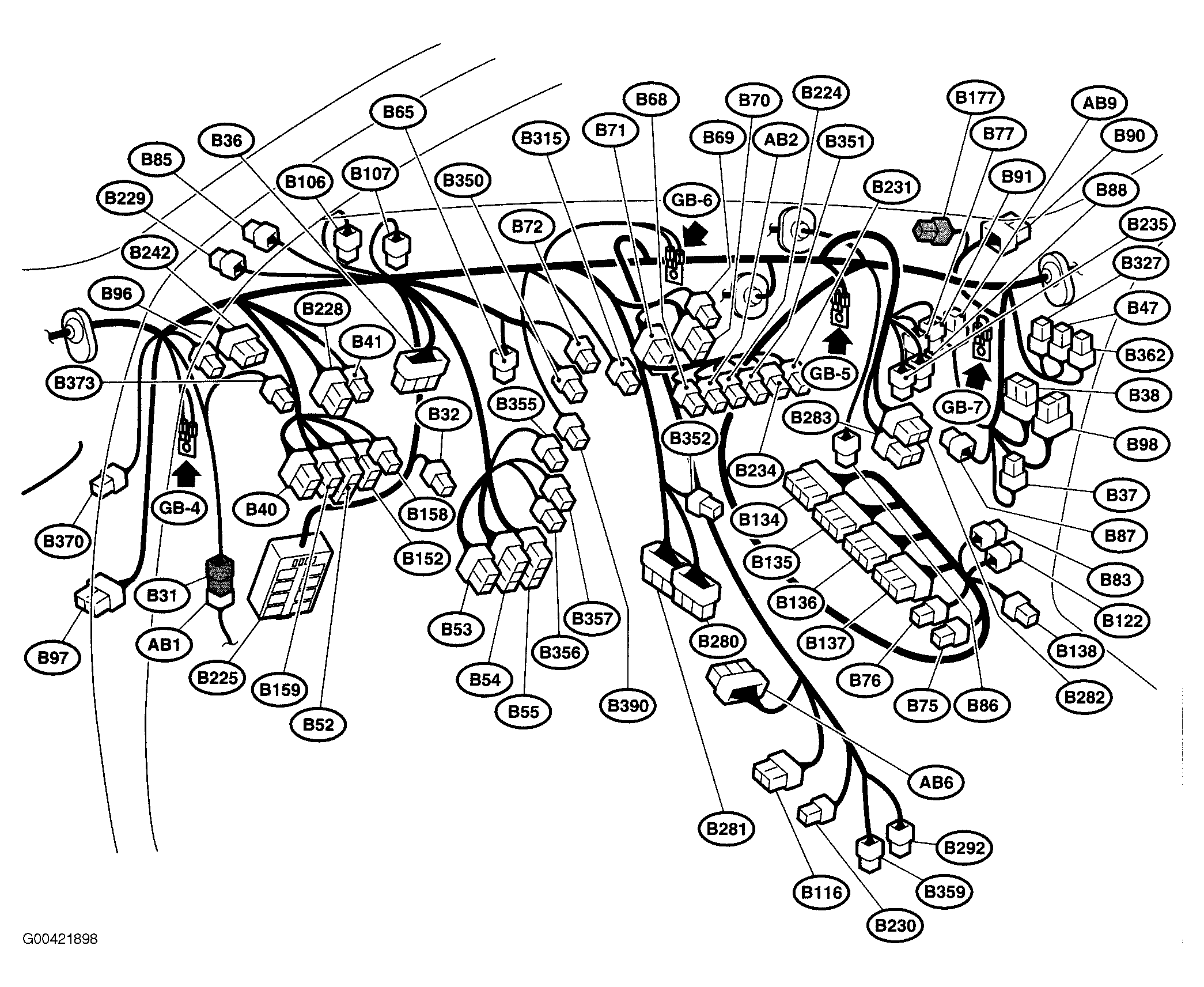

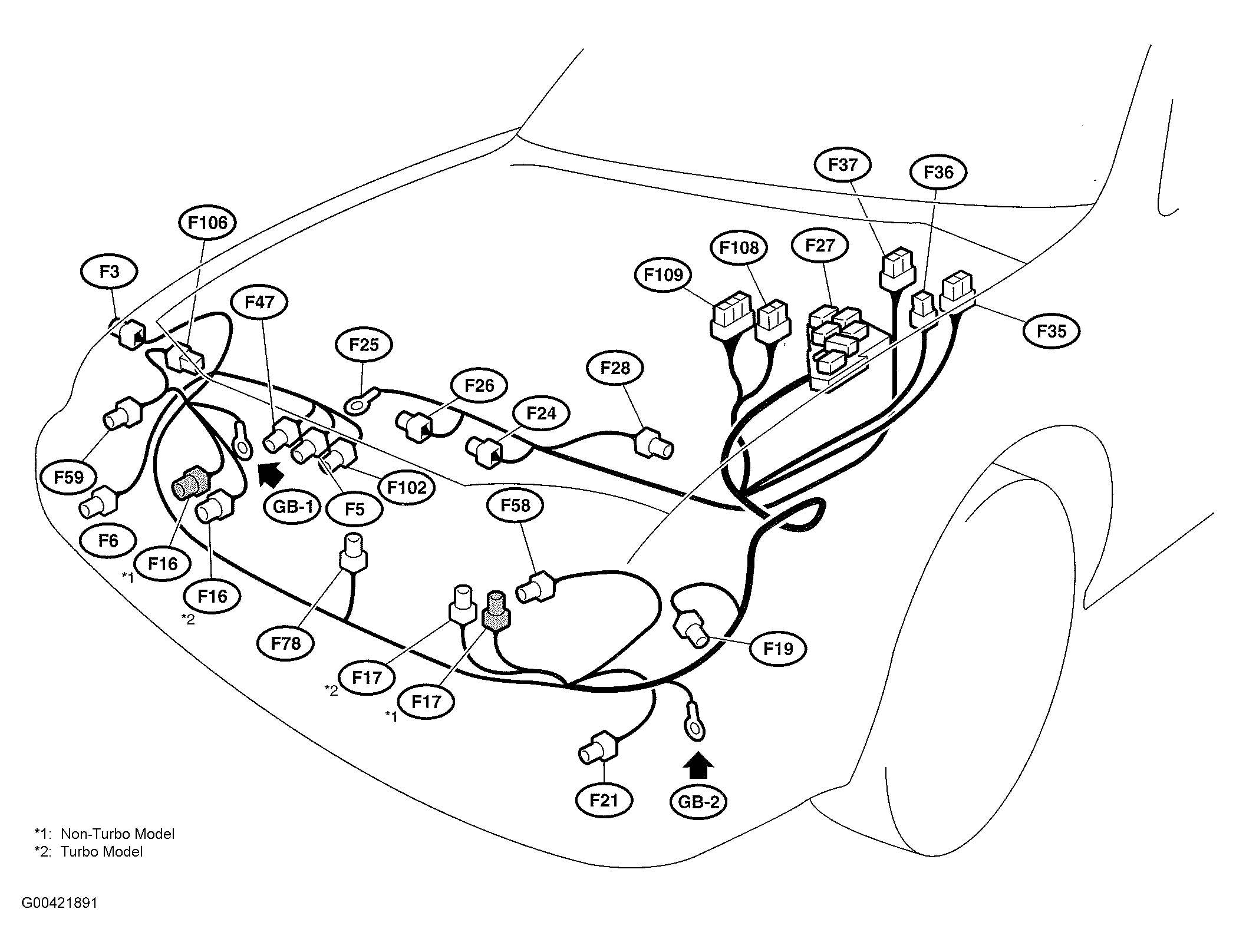

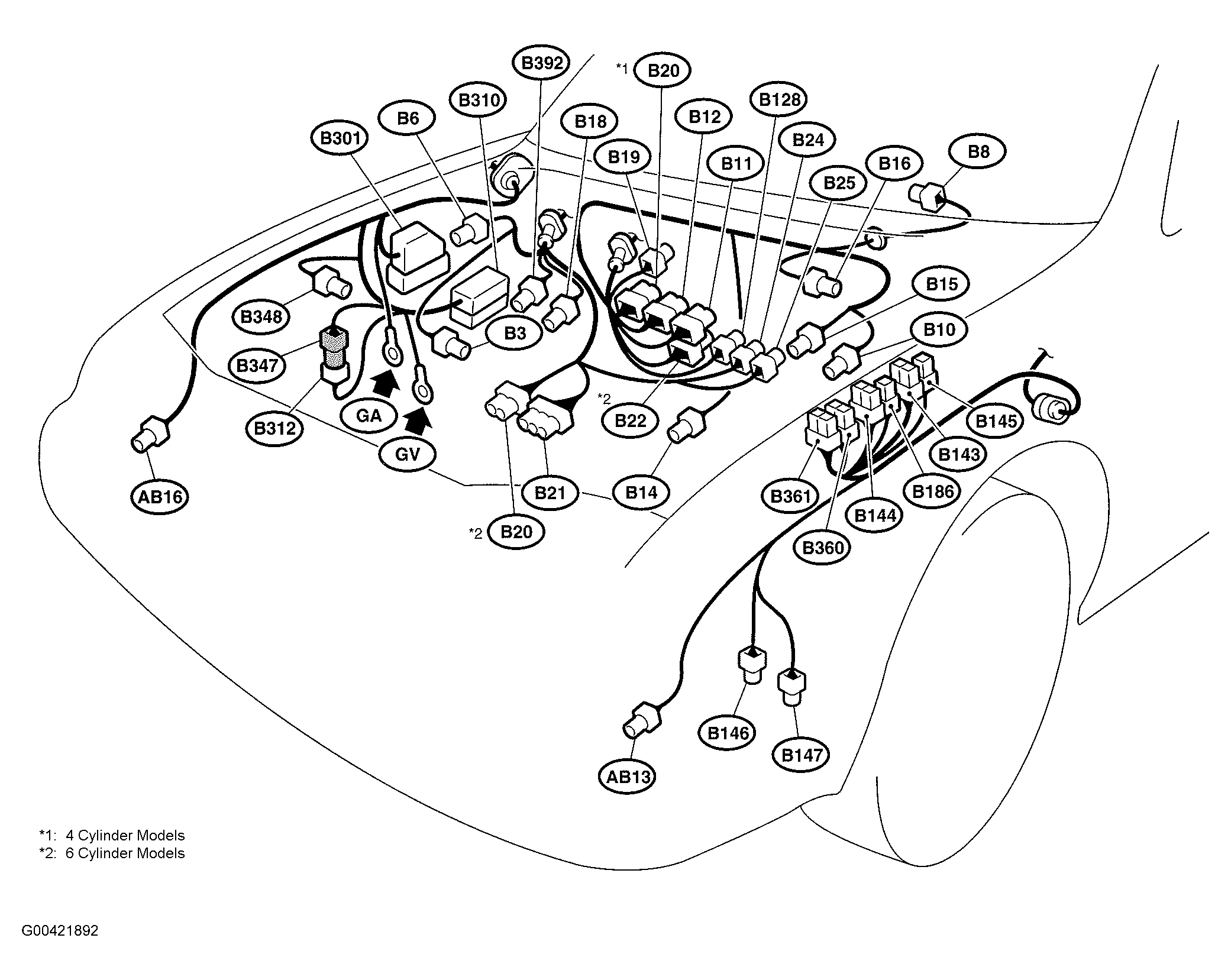

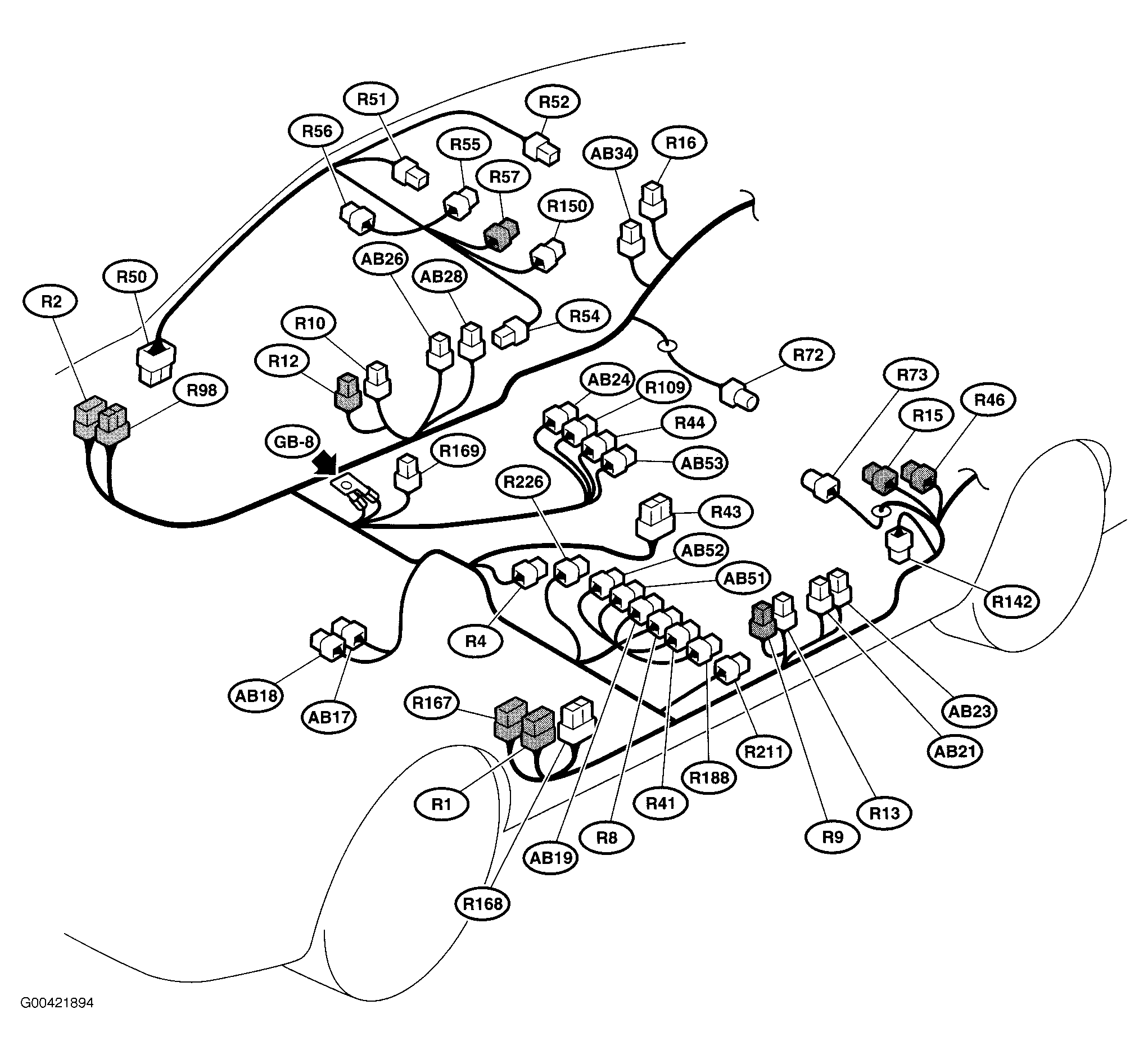

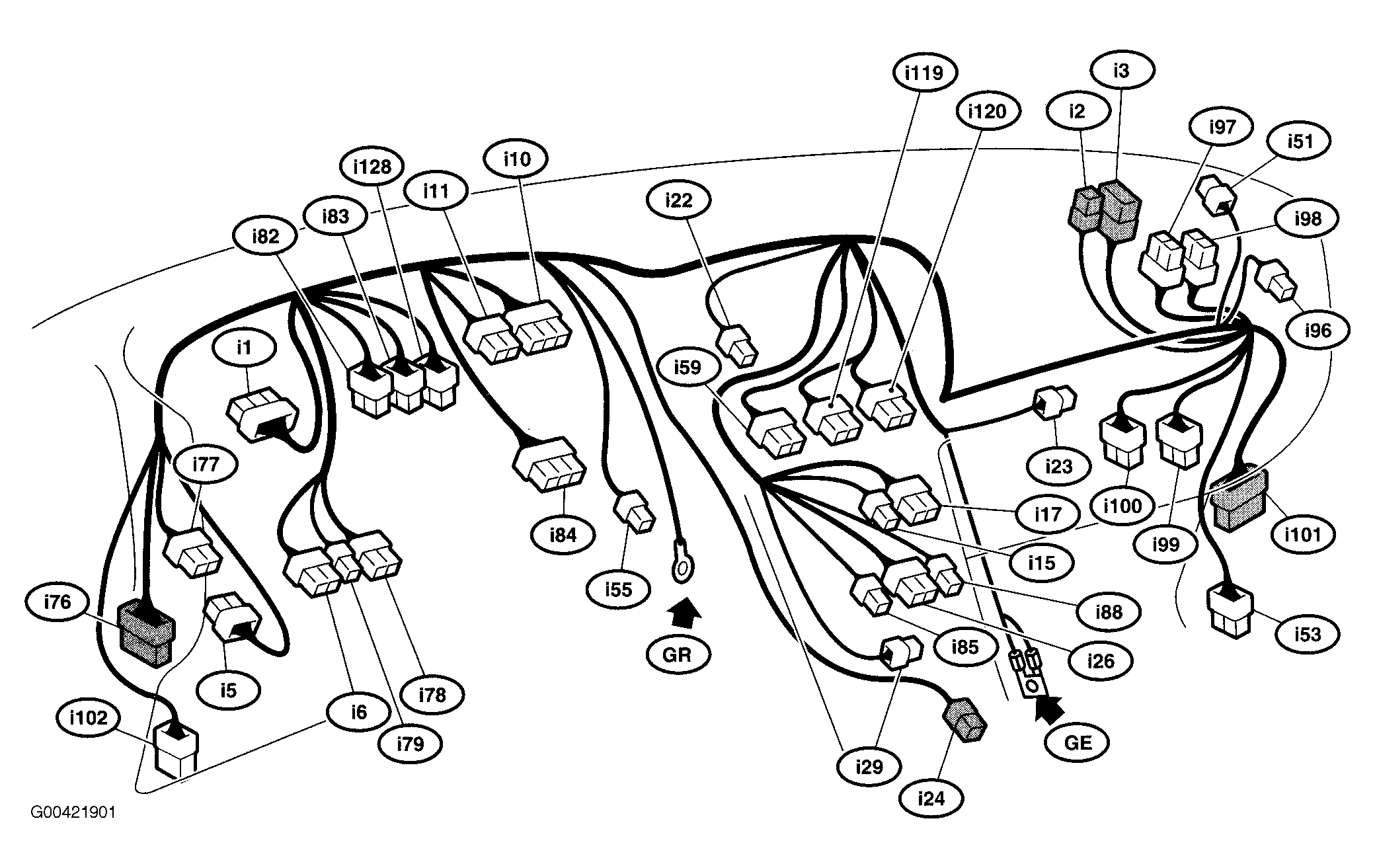

| ABS Control Module (B301) | Right side of engine compartment. See Figure. |
| Airbag Control Module (Sedan) (AB17, AB18) | Center of dash. See Figure. |
| Airbag Control Module (Wagon) (AB17, AB18) | Center of dash. See Figure. |
| Auto A/C Control Module (B283, B292) | Right side of dash. See Figure. |
| Blower Fan Controller (Auto A/C) (B86) | Right side of dash. See Figure. |
| Body Integrated Unit (I84) | Center of dash. See Figure. |
| Daytime Running Light Control Module (B96, B242) | Left center of dash. See Figure. |

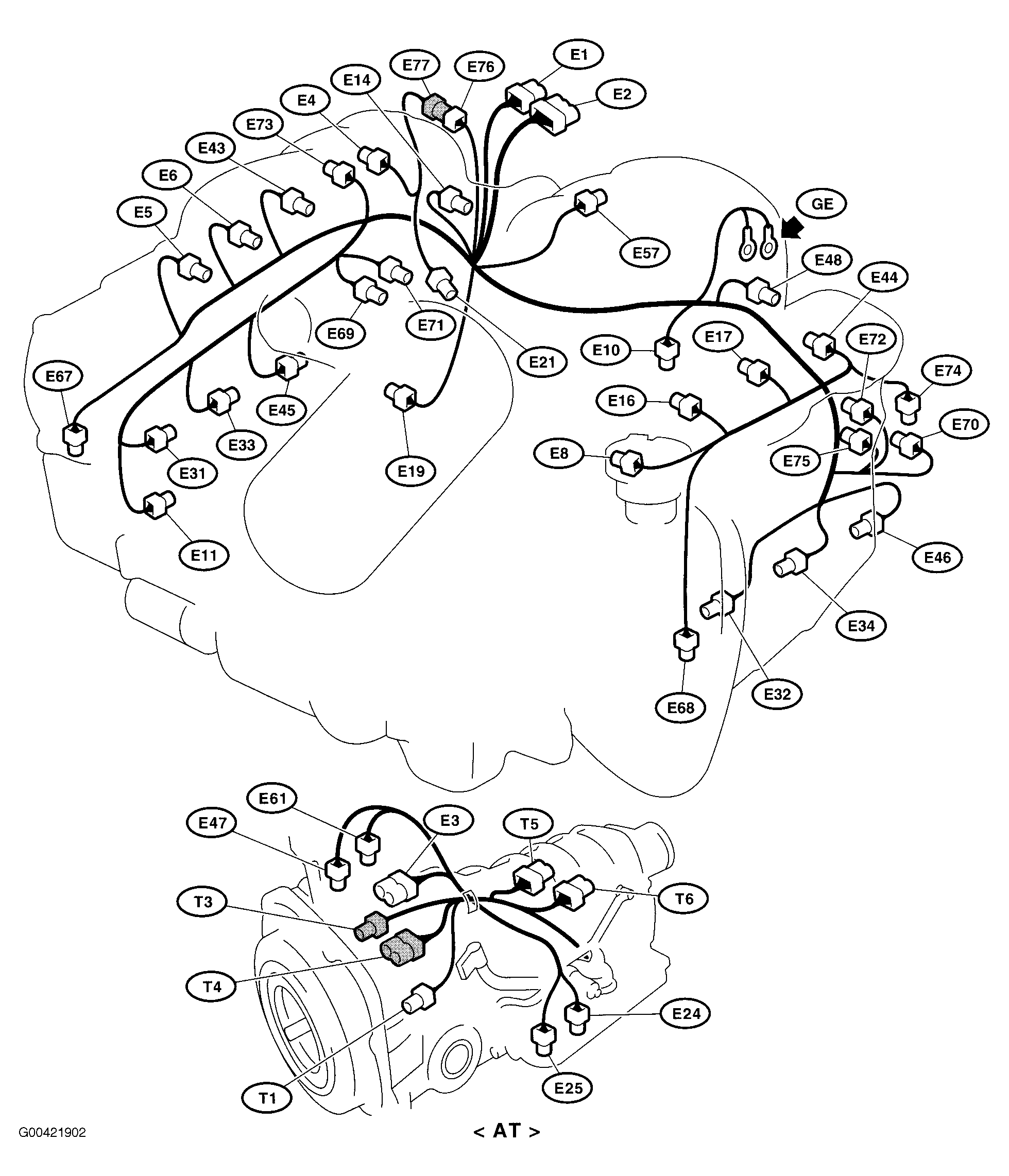

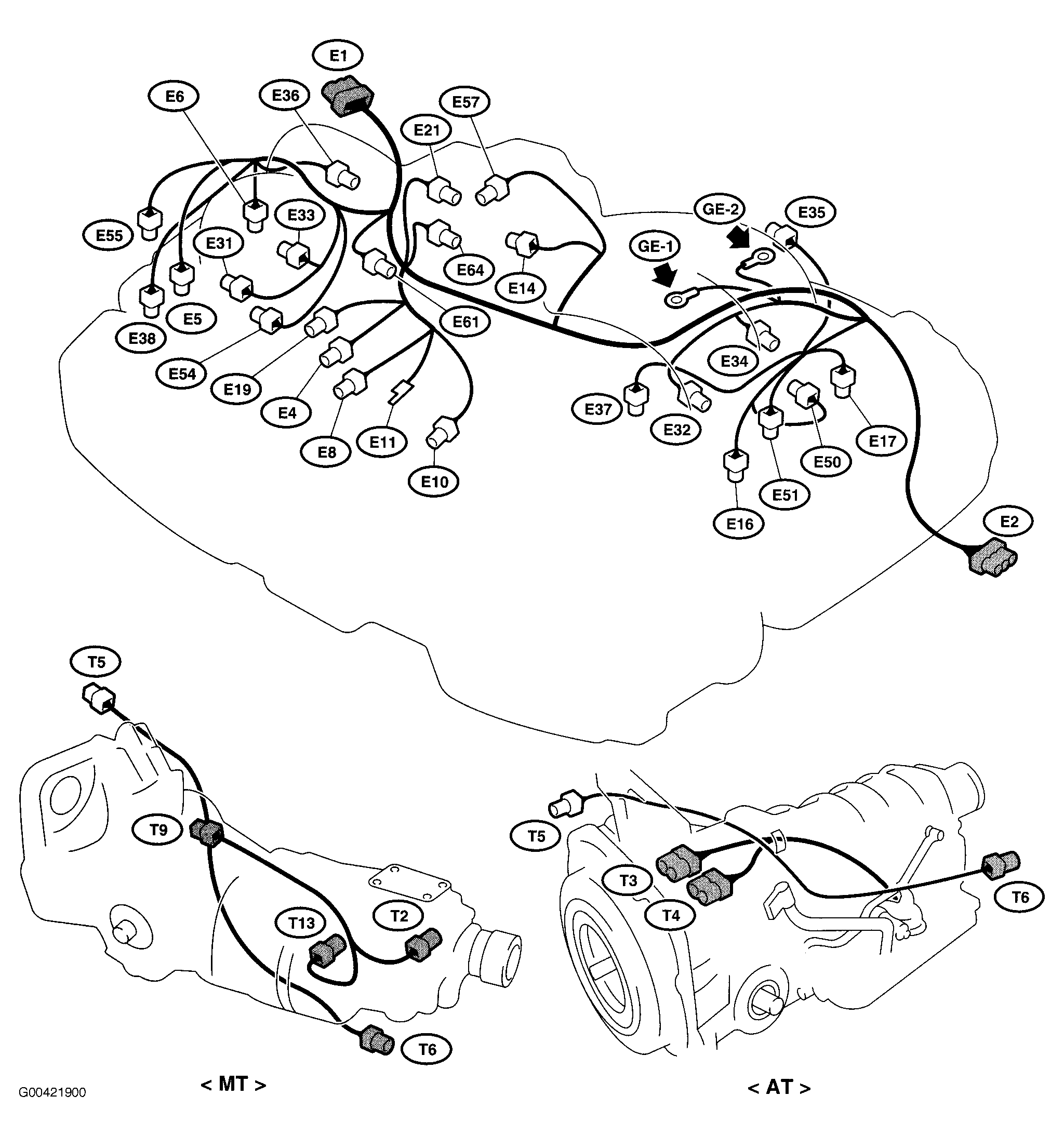

| Electronic Throttle Control (2.5L Non-Turbo) (Low Emissions) (E57) | Right rear of engine. See Figure. |
| Electronic Throttle Control (2.5L Turbo) (E57) | Right rear of engine. See Figure. |
| Electronic Throttle Control (3.0L) (E57) | Right rear of engine. See Figure. |
| Engine Control Module (B134, B135, B136 & B137) | In passenger side front footwell, below carpet and protective panel. See Figure. |

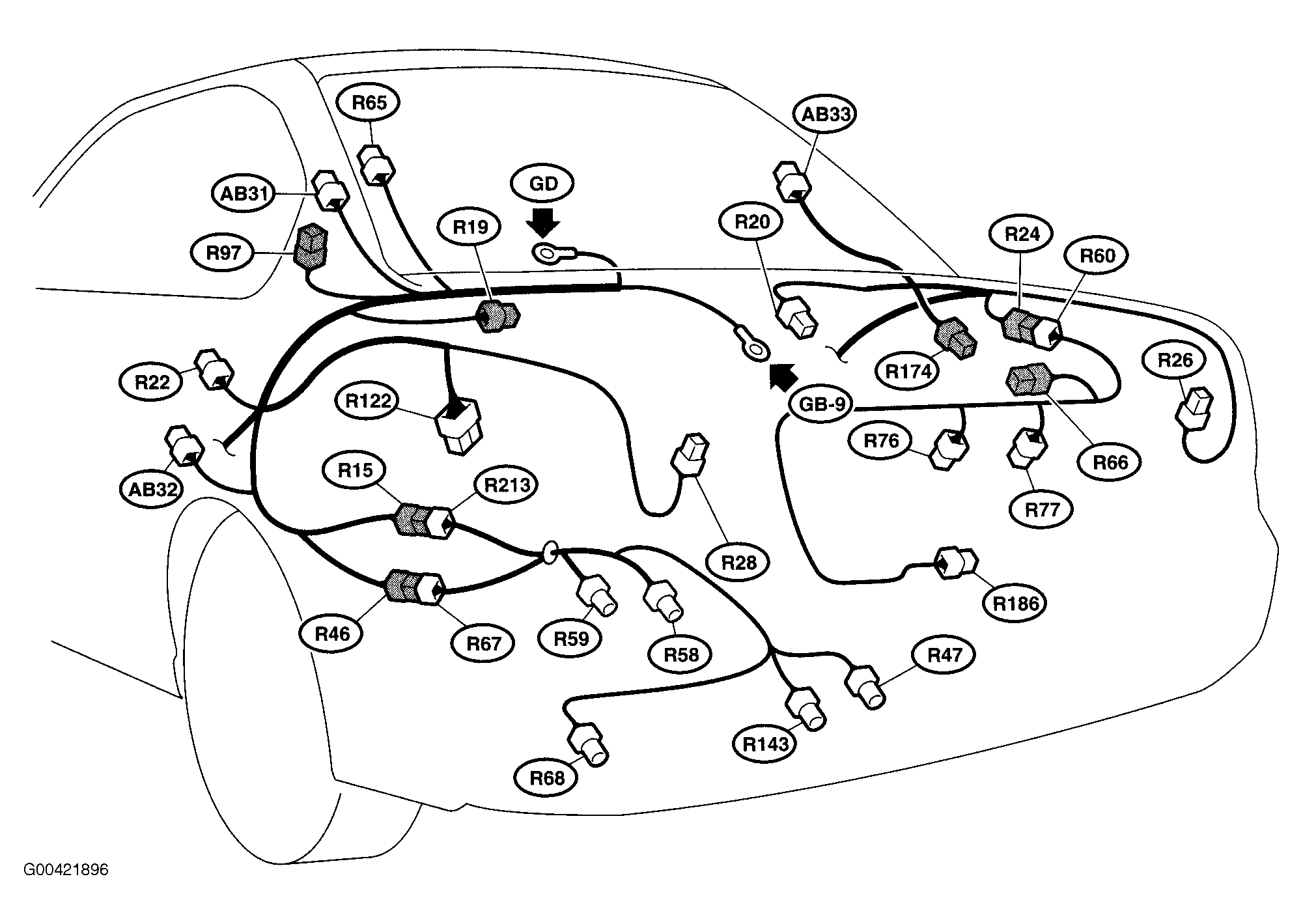

| Fuel Pump Control Unit (Sedan) (R122) | Left side of trunk. See Figure. |

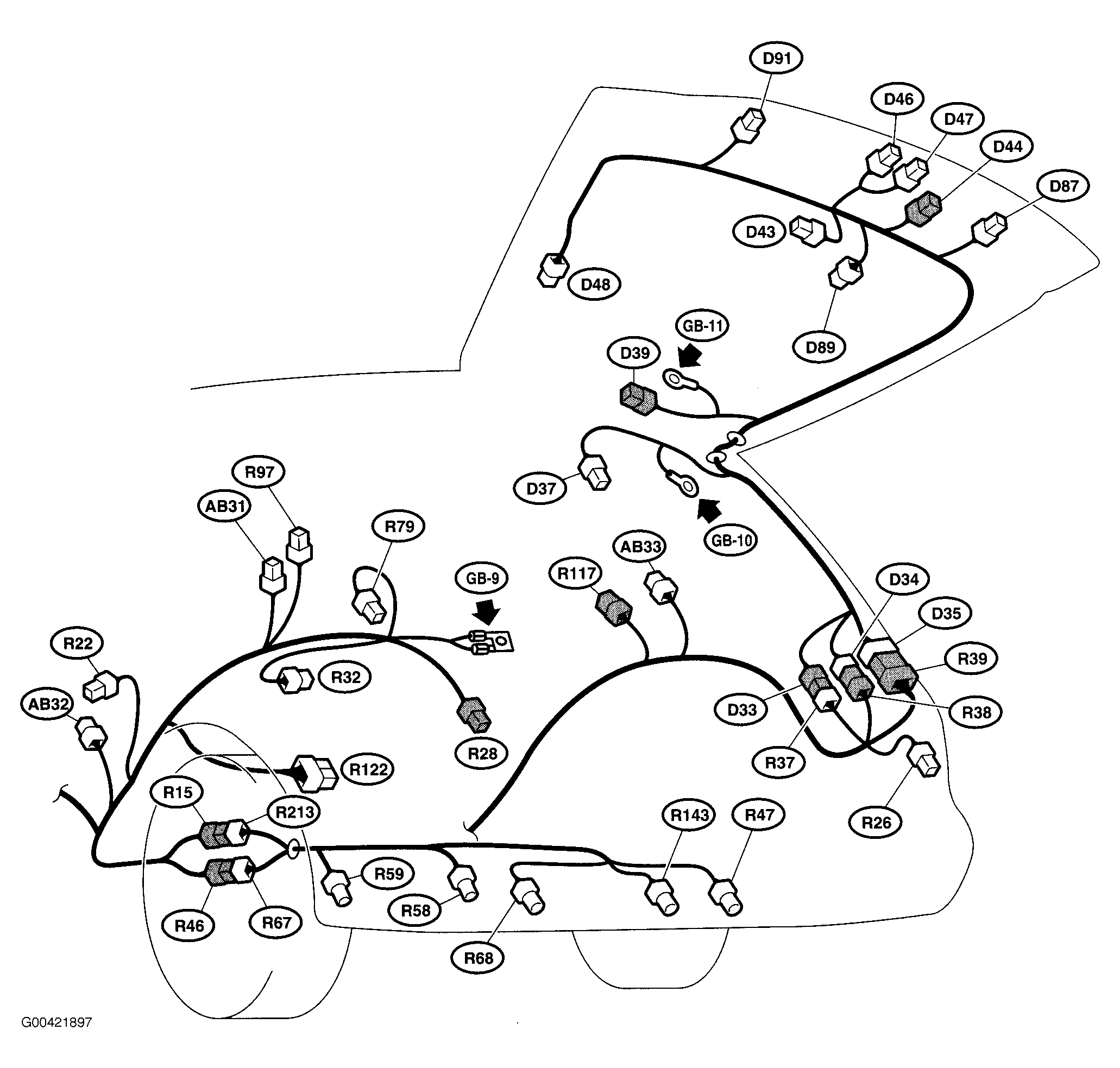

| Fuel Pump Control Unit (Wagon) (R122) | Left side of luggage compartment. See Figure. |
| Hydraulic Module (VDC) (F91) | Right side of engine compartment. See Figure. |
| Illumination Control Module (I79) | Left side of dash. See Figure. |
| Keyless Entry Control Module (I96) | Behind right side of dash. See Figure. |
| Navigation Module (R226) | Center of dash. See Figure. |
| Occupant Detection Control Module (Sedan) (AB53) | Under passenger's seat. See Figure. |
| Occupant Detection Control Module (Wagon) (AB53) | Under passenger's seat. See Figure. |
| PWM Controller (F106) | Near main fan motor. See Figure. |
| SSM (R212) | Under front passenger's seat. See Figure. |
| Sunroof Control Module (Sedan) (R55) | At sunroof opening. See Figure. |
| Sunroof Control Module (Wagon) (R55) | At sun roof opening. See Figure. |
| TPM Control Module (Sedan) (R211) | Under driver's seat. See Figure. |
| TPM Control Module (Wagon) (R211) | Under driver's seat. See Figure. |
| Transmission Control Module (B54, B55, B56) | Left side of dash. See Figure. |
| Turn Signal & Hazard Module (B32) | Left side of dash. See Figure. |
| VDC Control Module (B310) | At right rear corner of engine compartment. See Figure. |
