Components With Torque Specifications

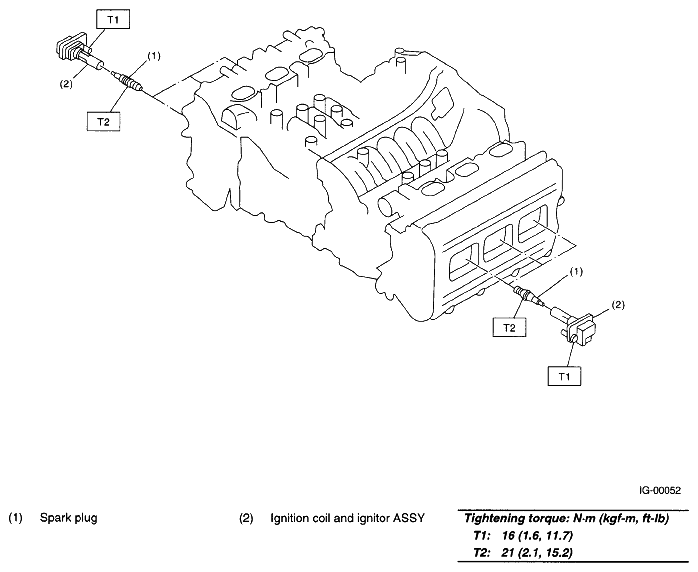

Fig 1: Ignition System Replacement Components With Torque Specifications
G05018956Courtesy of SUBARU OF AMERICA, INC.
