General Information: Note: Note: Tie-Downs

Tie-downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to the specified locations on the vehicle.

Tie-down location

CAUTION: Use the T-hook for rear tie-down. Do not use the hook other than T-hook, otherwise it can be removed when transporting vehicles.

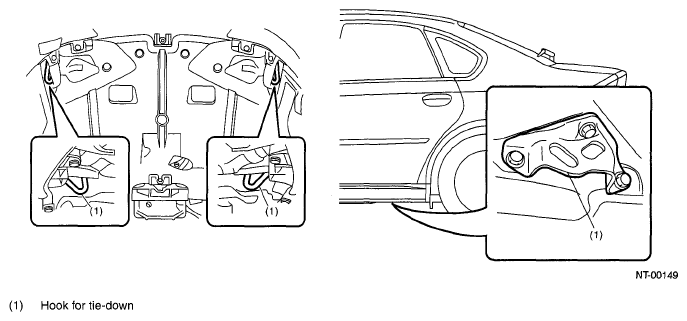

Fig 1: Identifying Hook For Tie-Down

CHAIN DIRECTION AT TIE-DOWN CONDITION

NOTE: Pull the chains LH and RH in the same direction, but front and rear side in the counter direction. Pull all the chains in a same moment.

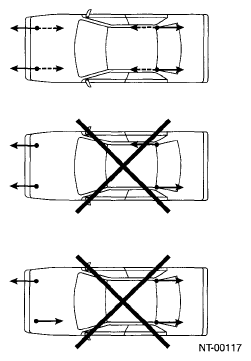

Fig 2: Identifying Vehicle Pulling Chain Direction

CHAIN PULLING RANGE AT TIE-DOWN CONDITION

Fig 3: Identifying Tie-Down Pulling Chain Connection

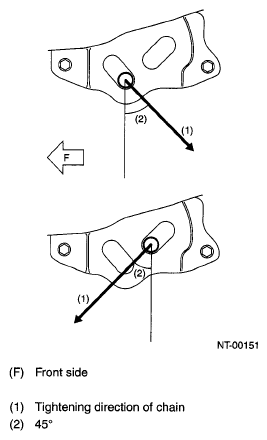

Fig 4: Identifying Chain Tighten Direction
VEHICLE SINKING VOLUME AT TIE-DOWN CONDITION

Measure the distance between the highest tire point and highest arch point before and after tie-down. Difference of measured values (sinking volume) should be within 50 mm (1.97 in) and make sure to fix the vehicle securely.

Fig 5: Identifying Distance Between Highest Tire Point And Highest Arch Point
