Transmission Control Device & Parking Support

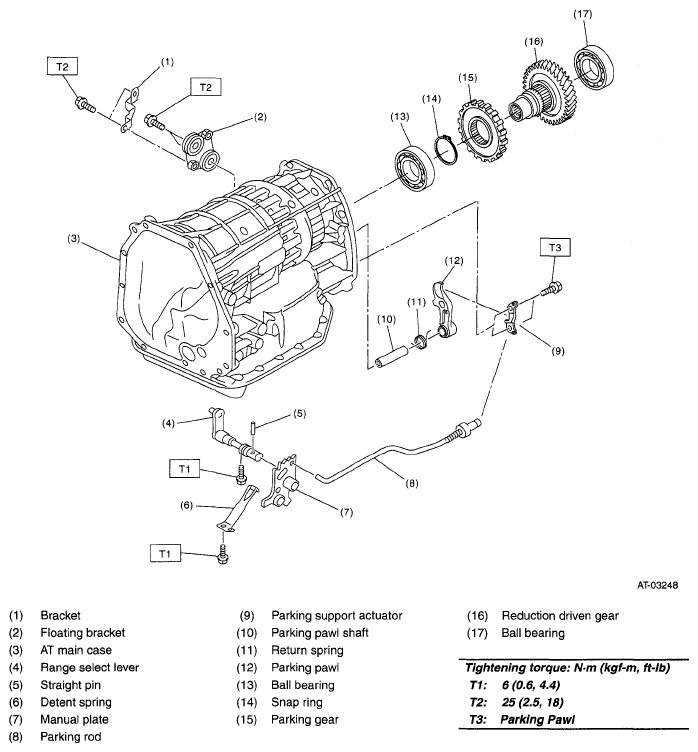

Fig 1: Transmission Control Device & Parking Support With Torque Specifications
