Components With Torque Specifications

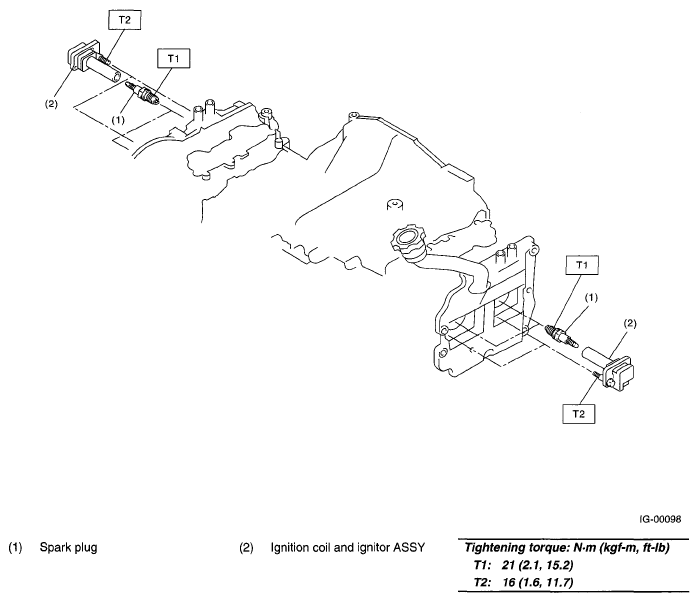

Fig 1: Identifying Ignition System Components And Tightening Torques
G05021561Courtesy of SUBARU OF AMERICA, INC.
