Components With Torque Specifications

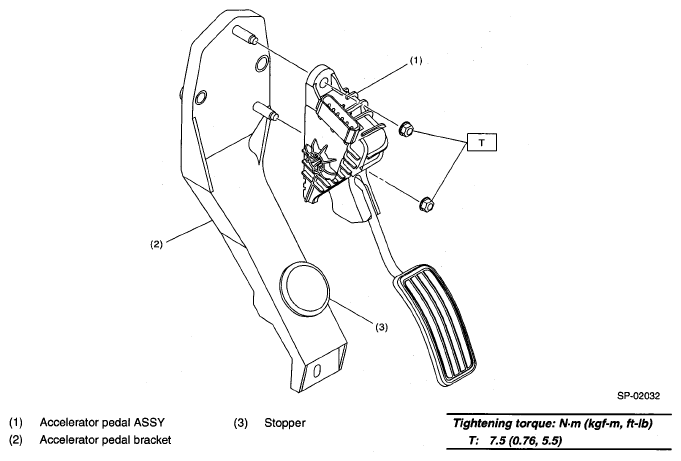

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G05345960Courtesy of SUBARU OF AMERICA, INC.
