Components With Torque Specifications

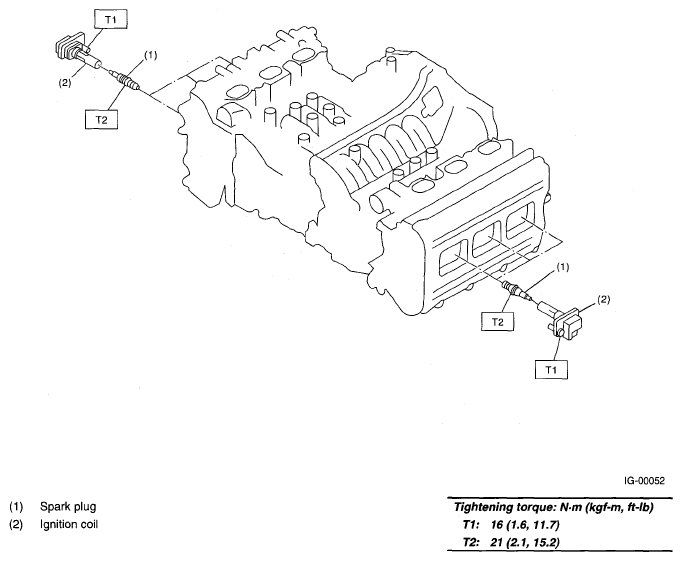

Fig 1: Spark Plug And Ignition Coil With Torque Specifications
G05345962Courtesy of SUBARU OF AMERICA, INC.
