General Information: Notices: Note: Tie-Downs

Tie-downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to the specified locations on the vehicle.

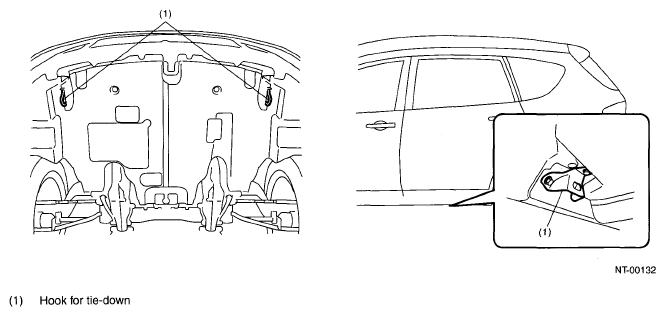

• Tie-down location
  Fig 1: Identifying Tie-Down Location

  Courtesy of SUBARU OF AMERICA, INC.
• Chain direction at tie-down condition
  NOTE: Pull the chains LH and RH in the same direction, but front and rear side in the counter direction. Pull all the chains in a same moment.
  Fig 2: Tie-Down Condition Chain Direction

  Courtesy of SUBARU OF AMERICA, INC.
• Chain pulling range at tie-down condition
  Fig 3: Tie-Down Condition Chain Pulling Range

  Courtesy of SUBARU OF AMERICA, INC.
• Vehicle sinking volume at tie-down condition Measure the distance between the highest tire point and highest arch point before and after tie-down. Difference of measured values (sinking volume) should be within 50 mm (1.97 in) and make sure to fix the vehicle securely.
  Fig 4: Identifying Distance Between Highest Tire Point And Highest Arch Point

  Courtesy of SUBARU OF AMERICA, INC.
