Front Seat Belt

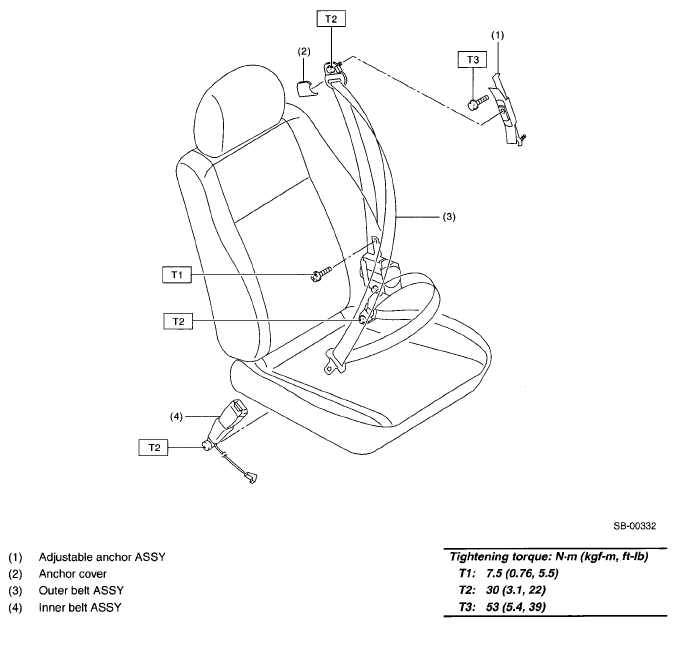

Fig 1: Front Seat Belt Components With Torque Specifications (Driver Side)
G04995203Courtesy of SUBARU OF AMERICA, INC.

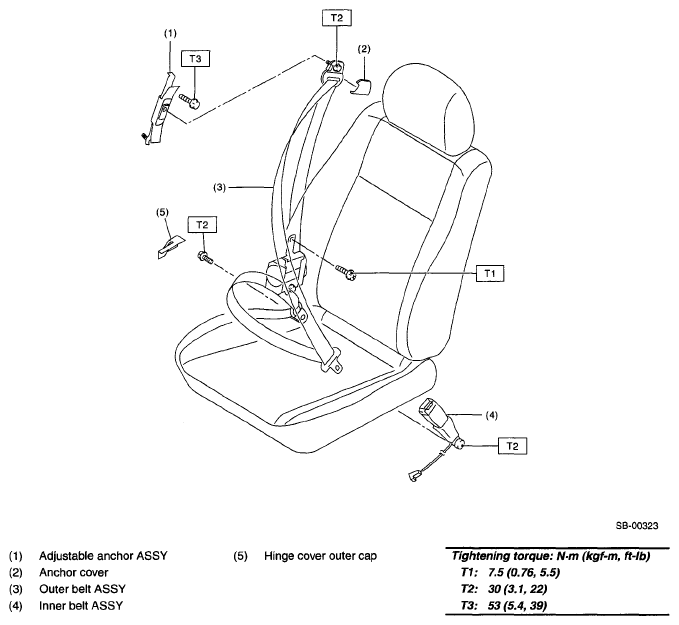

Fig 2: Front Seat Belt Components With Torque Specifications (Passenger Side)
G04995204Courtesy of SUBARU OF AMERICA, INC.
