Symptom Related Diagnostic Procedures

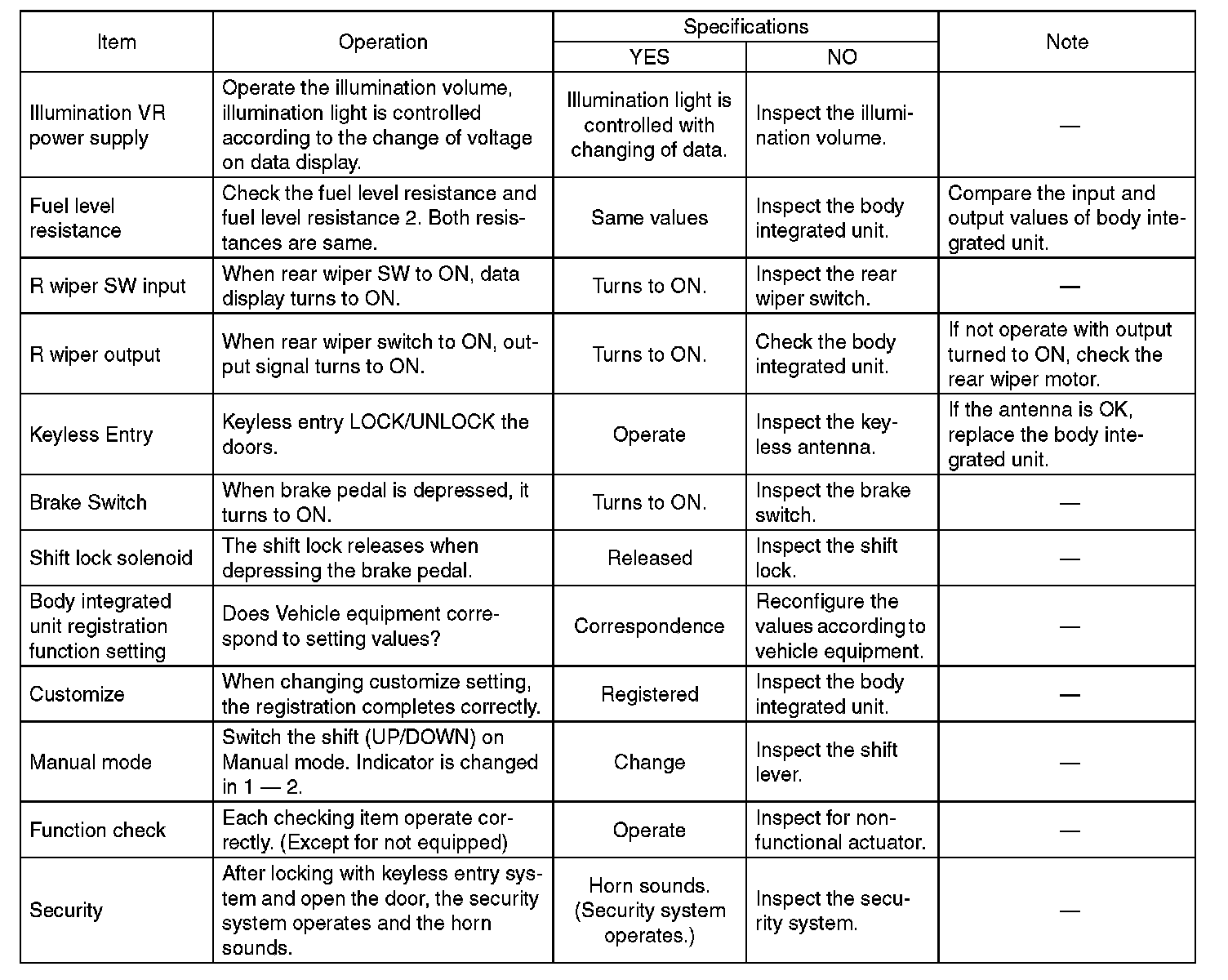

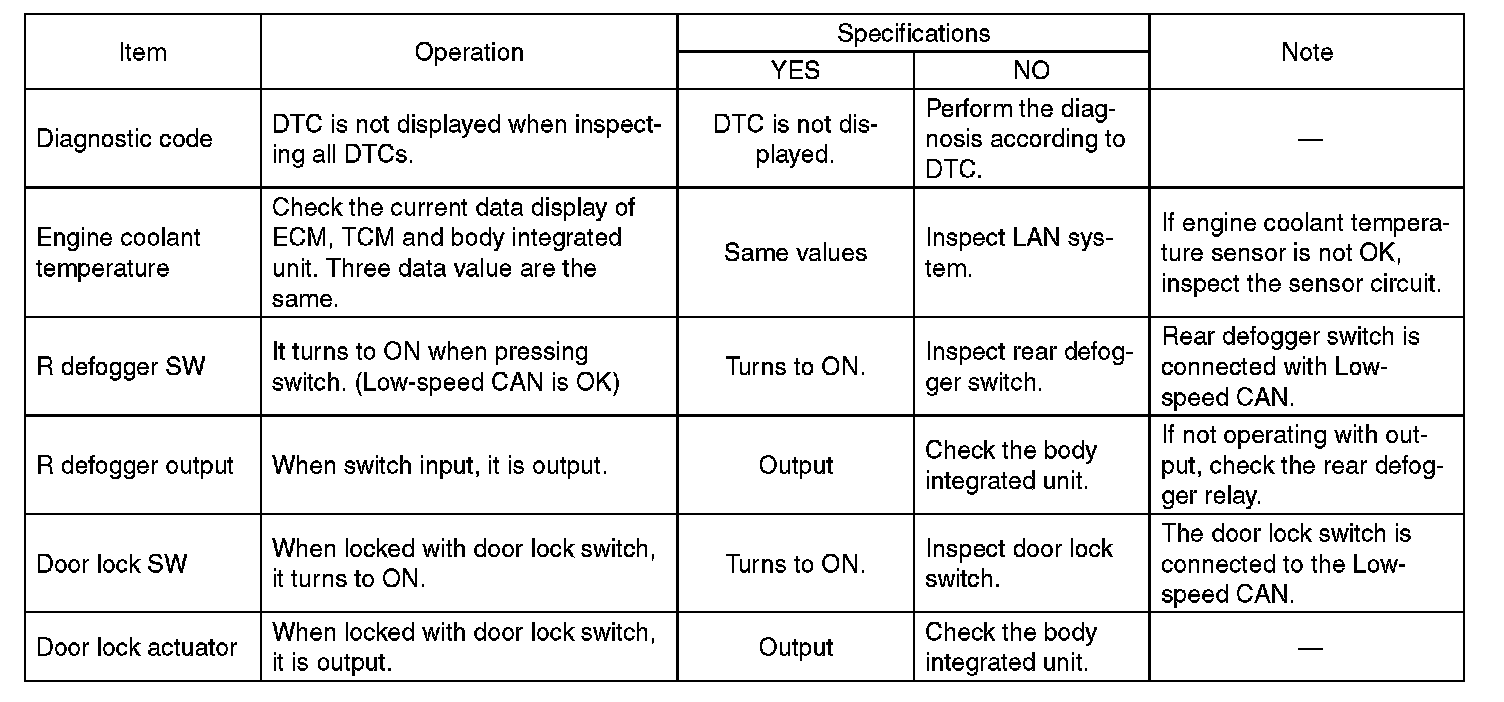

GENERAL DIAGNOSTIC TABLE

INSPECTION
Read the DTC or inspect and diagnose the following data in the current data display using Subaru Select Monitor.

Lan System:




1. LAN SYSTEM

Body Integrated Unit:




2. BODY INTEGRATED UNIT
