Exploded Views

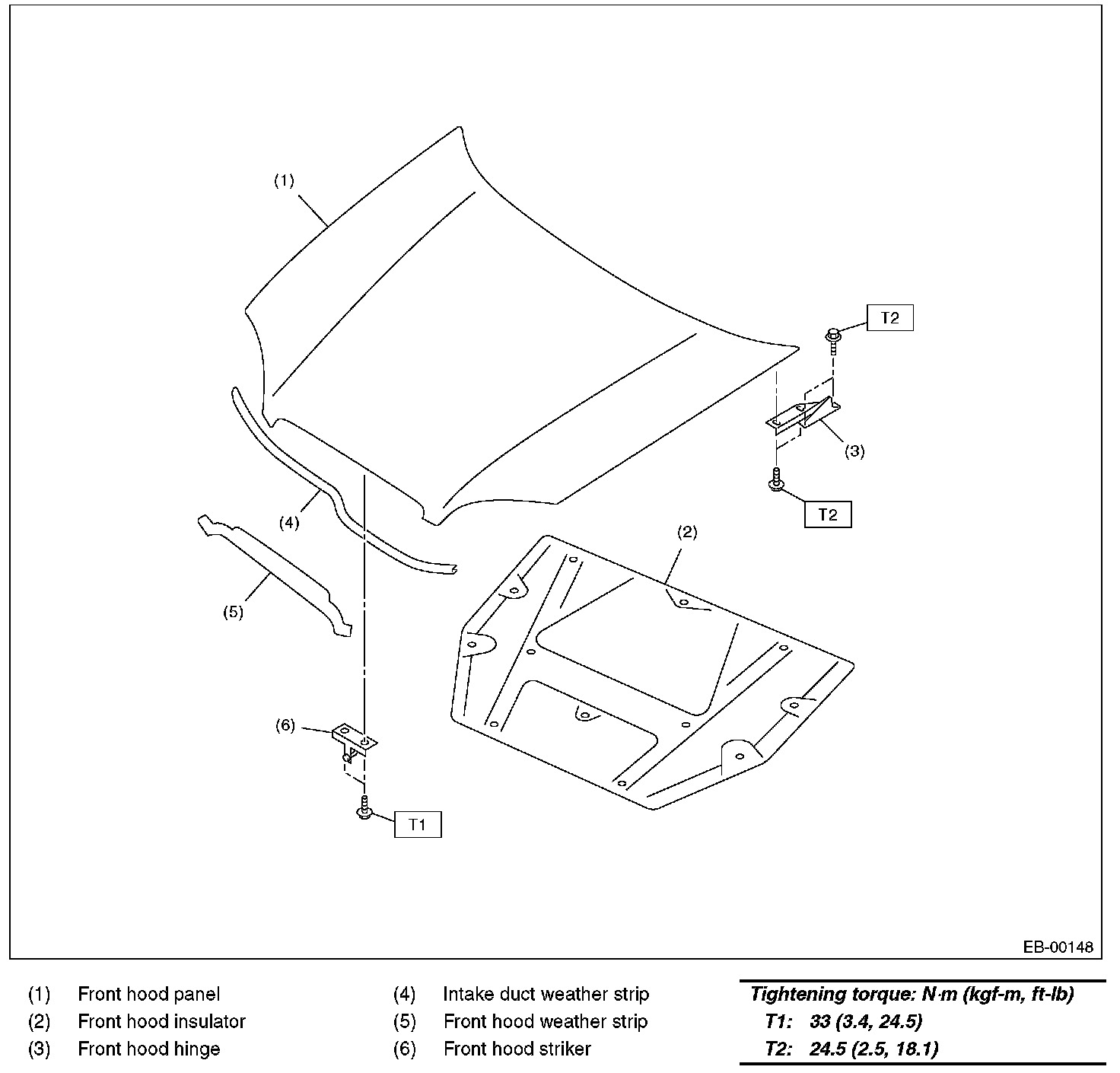

Front Hood:

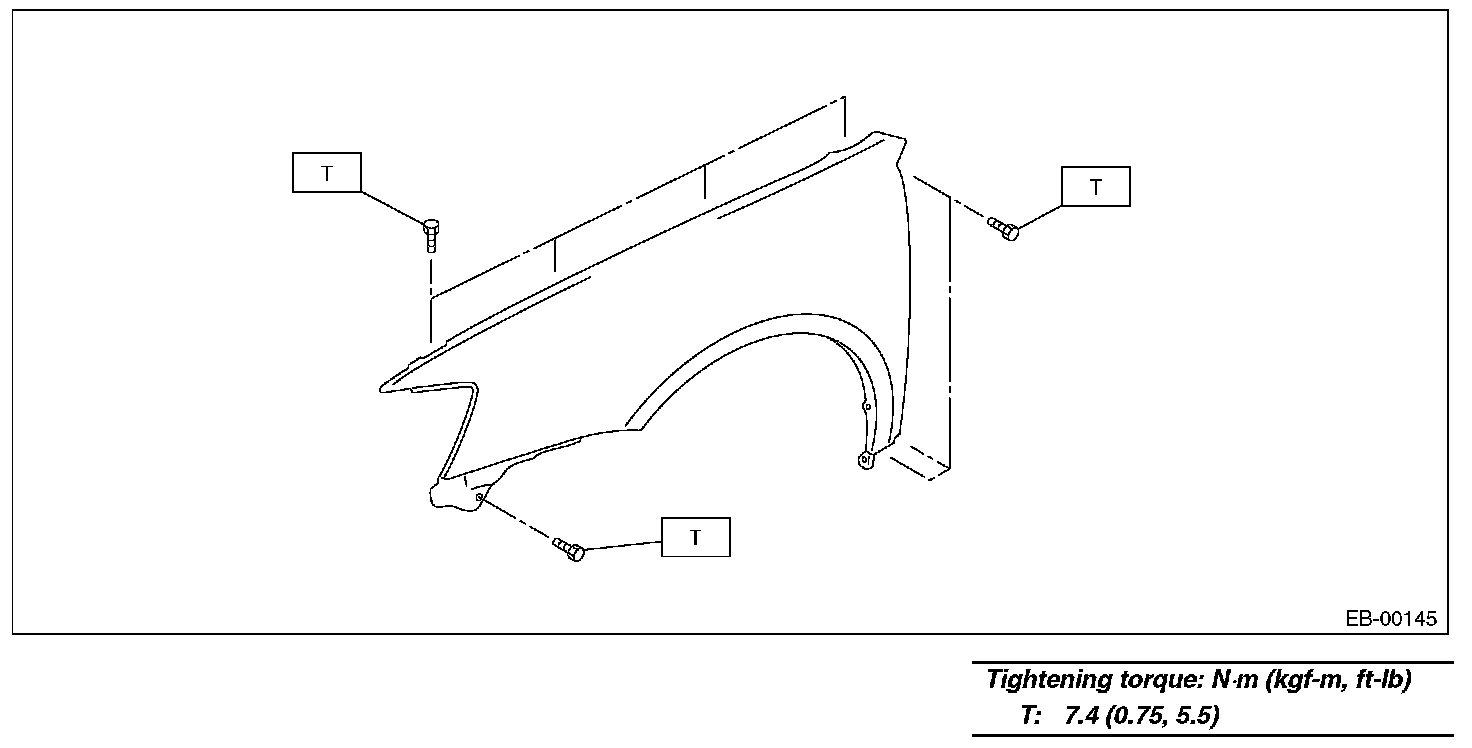

Front Fender Panel:

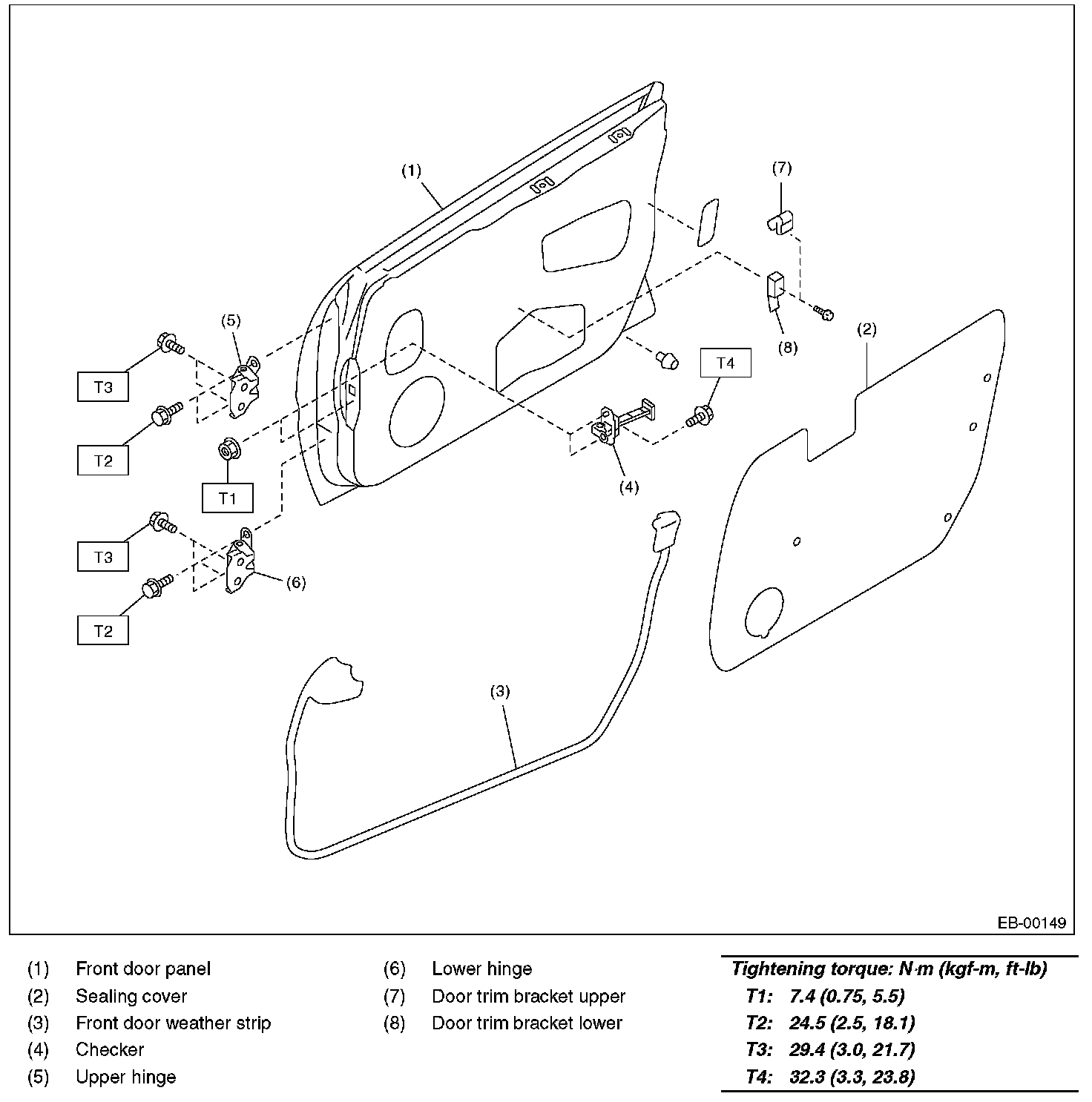

Front Door Panel:

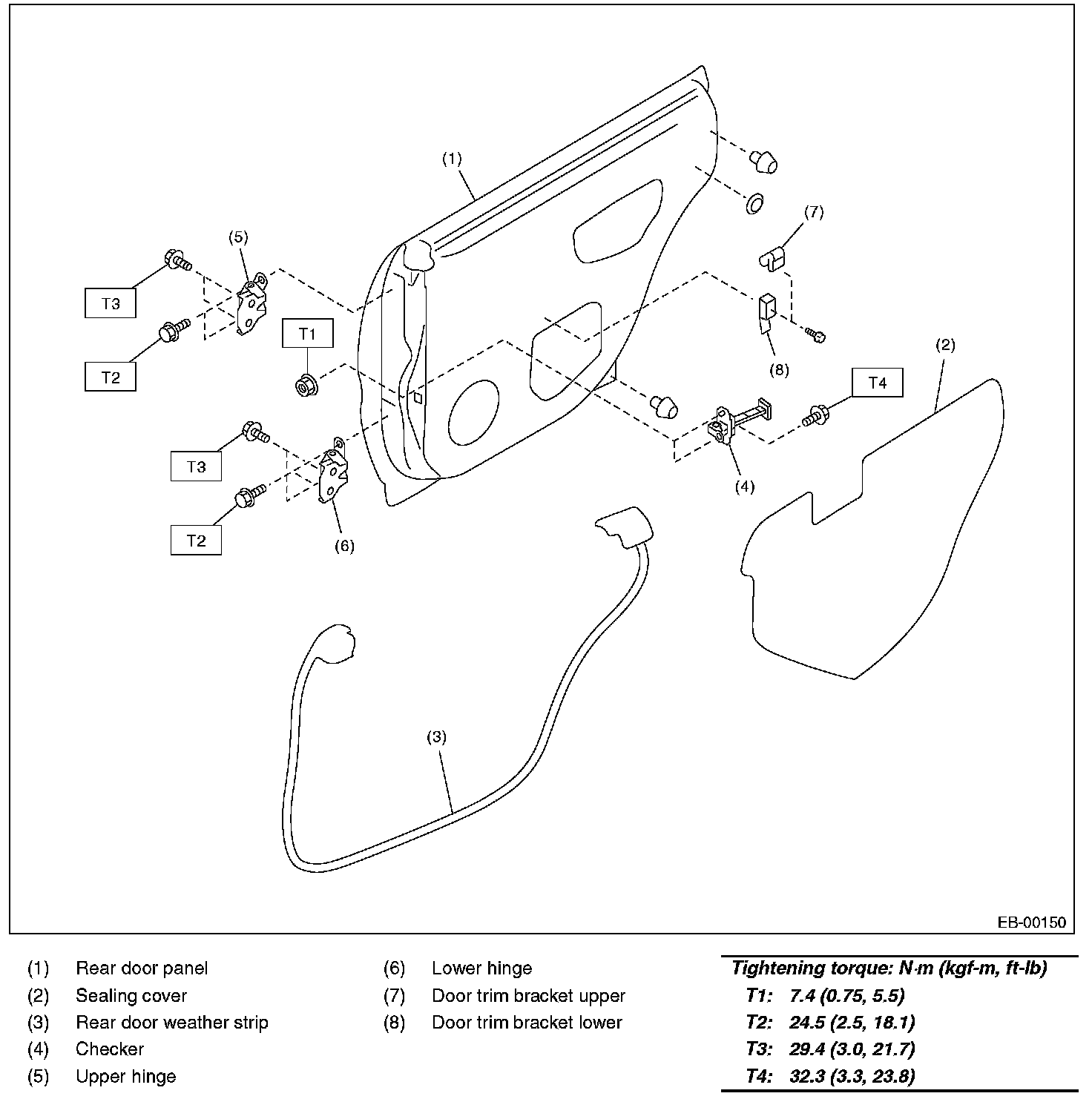

Rear Door Panel:

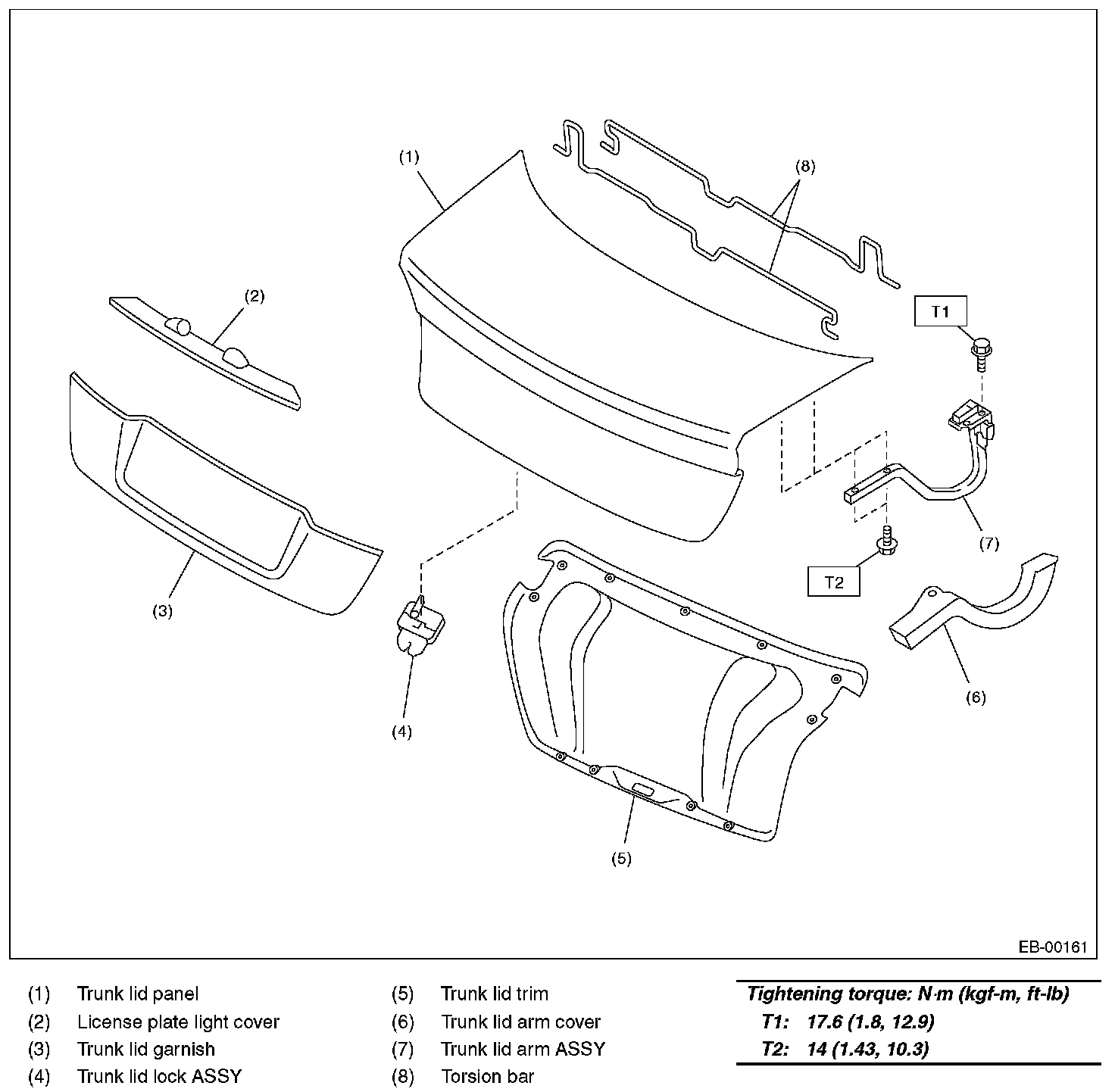

Trunk Lid Panel:

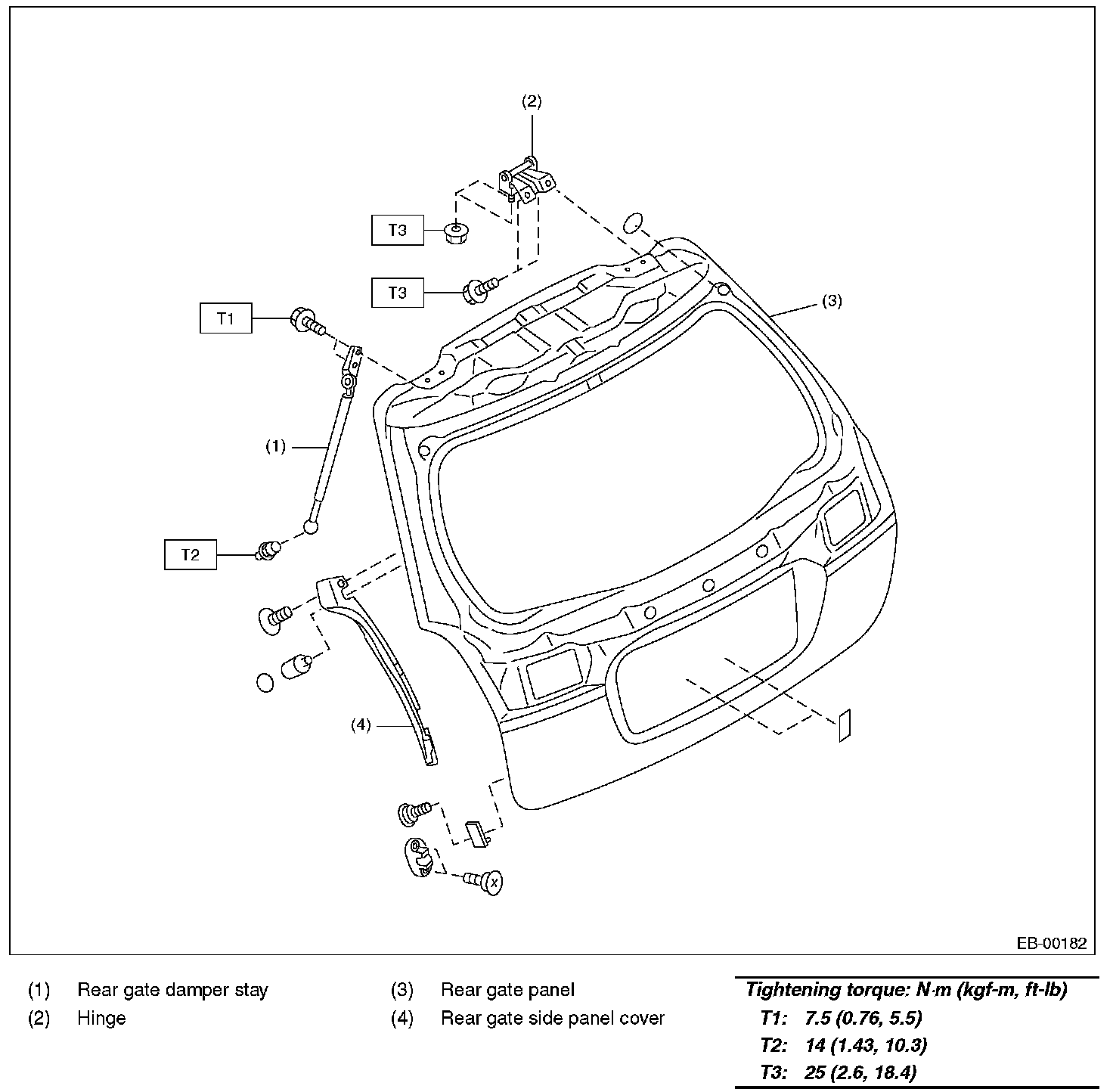

Rear Gate Panel:
