Subaru
>>
2007
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
F3-F115
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

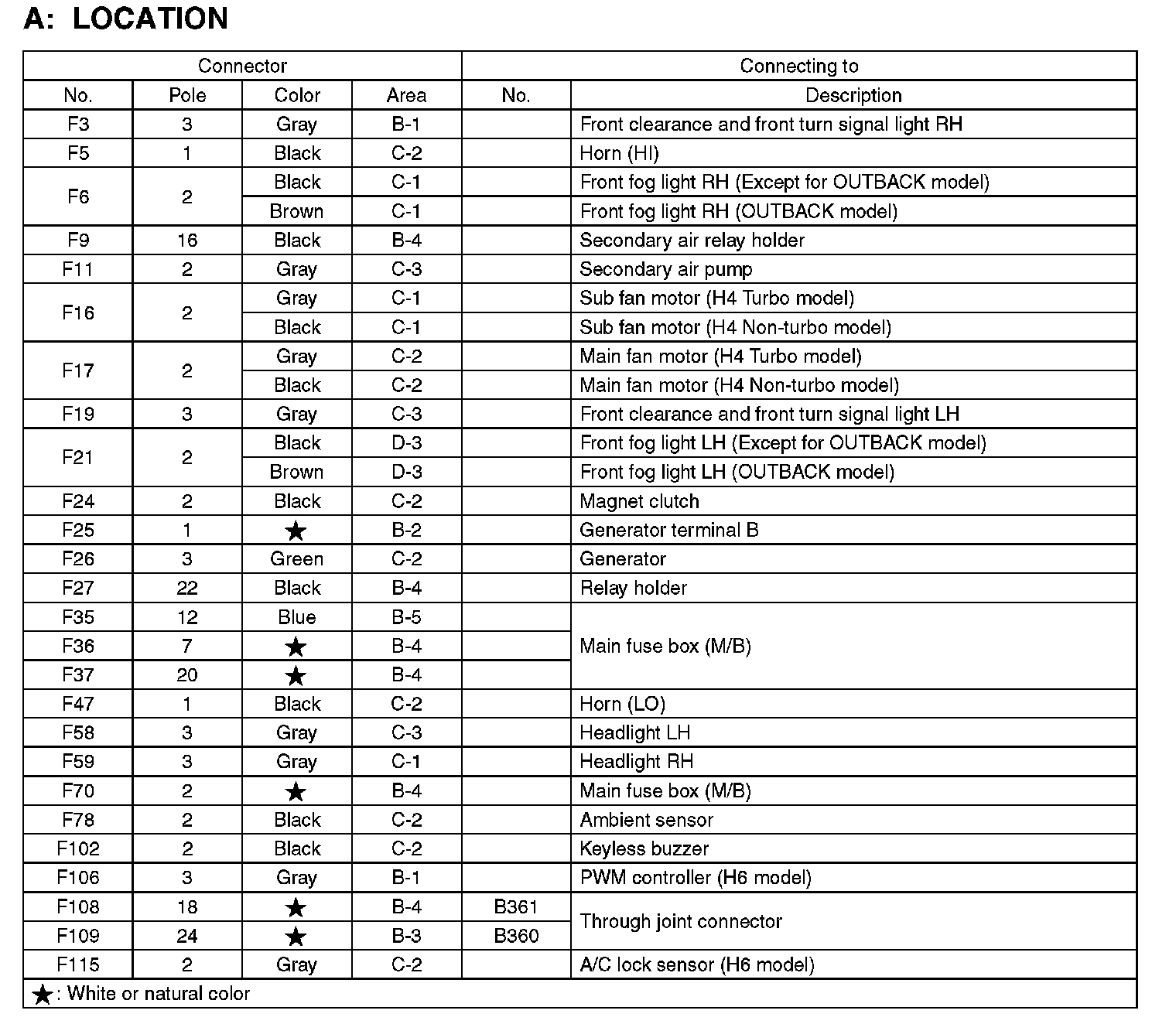

F3-F115
Front Wiring Harness
F3-F115:

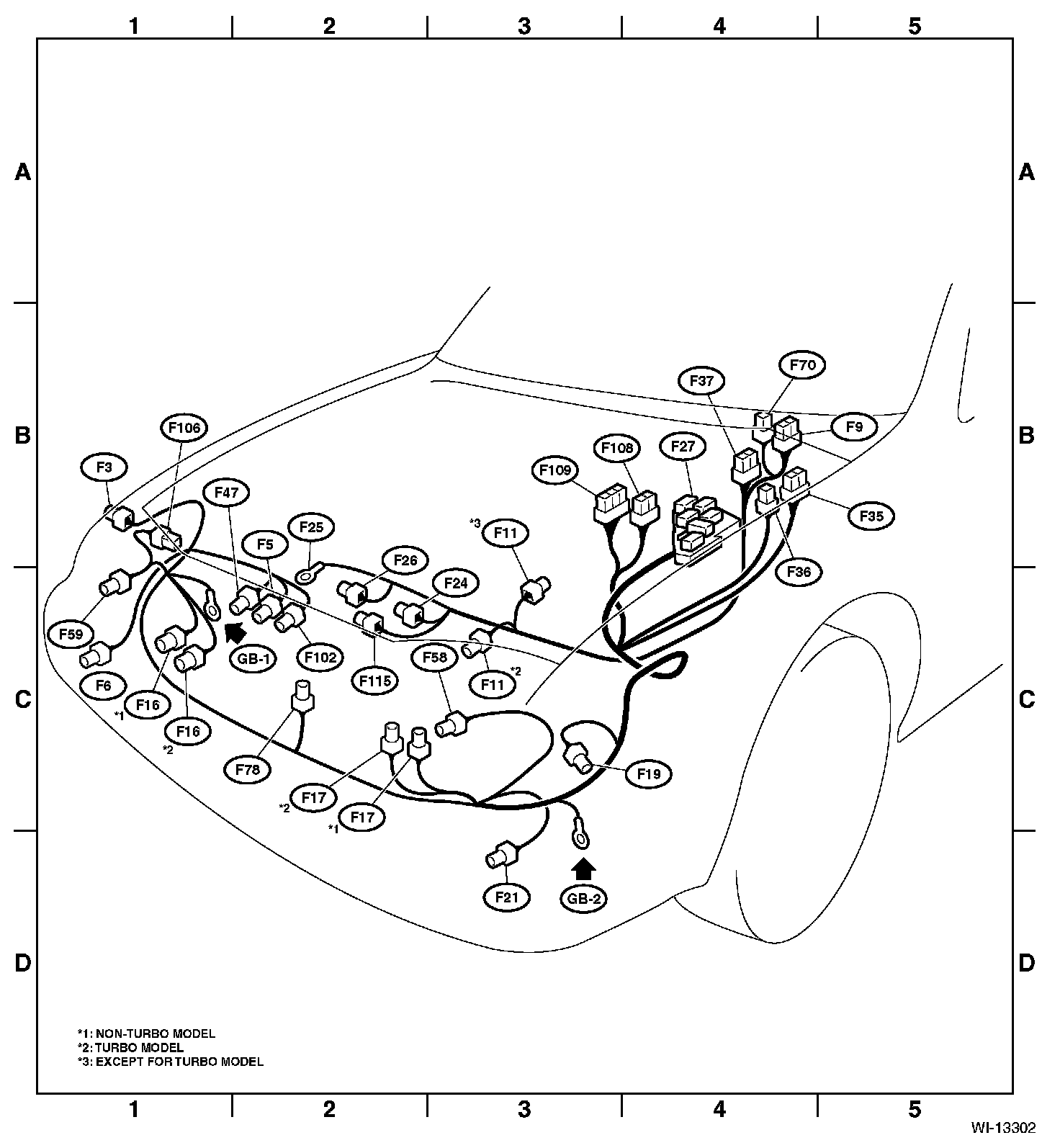

Area View:
