Subaru
>>
2007
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R1-R242 & AB17-AB56
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
R1-R242 & AB17-AB56
Rear Wiring Harness

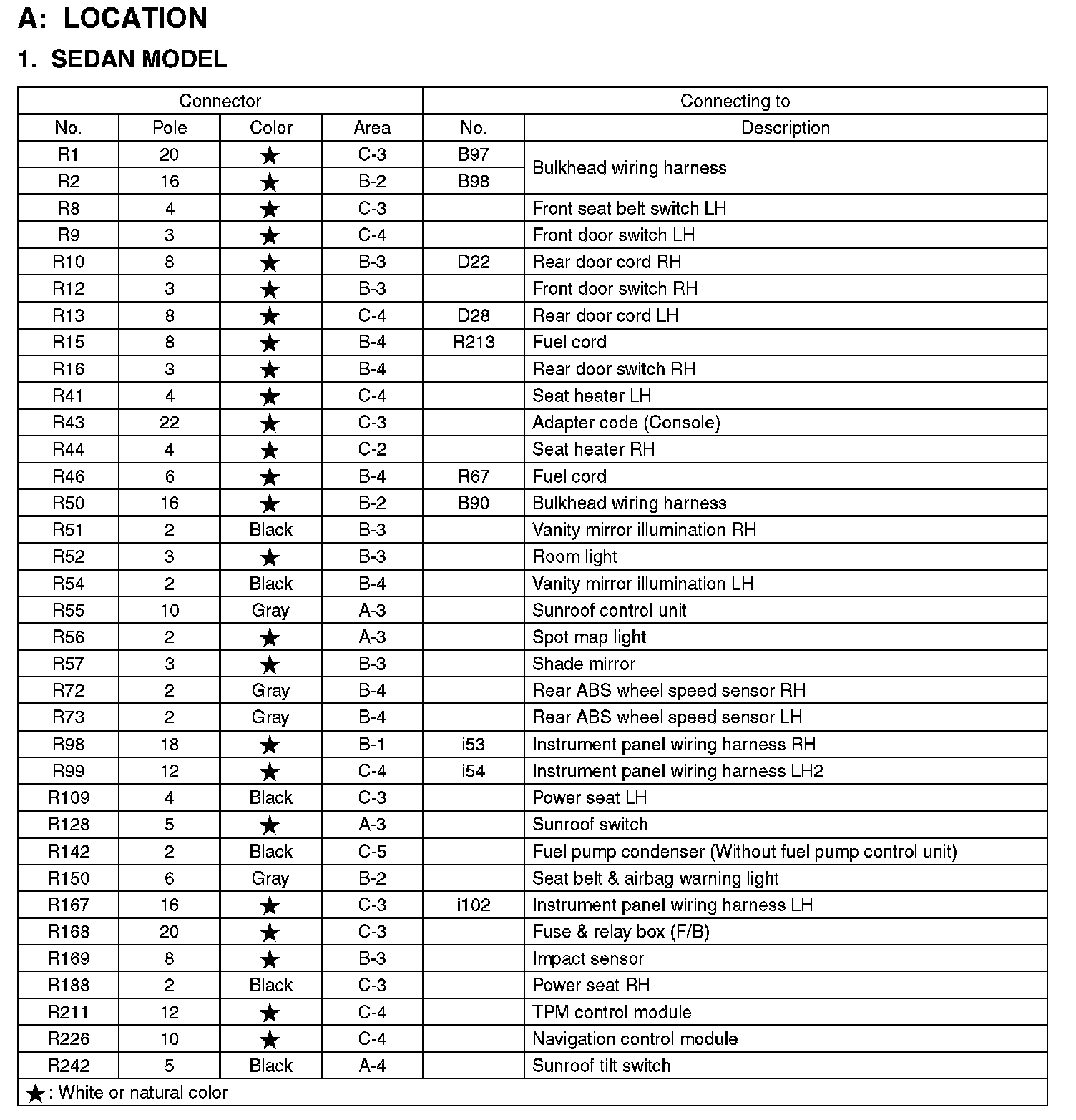

R1-R242:
AB17-AB56:

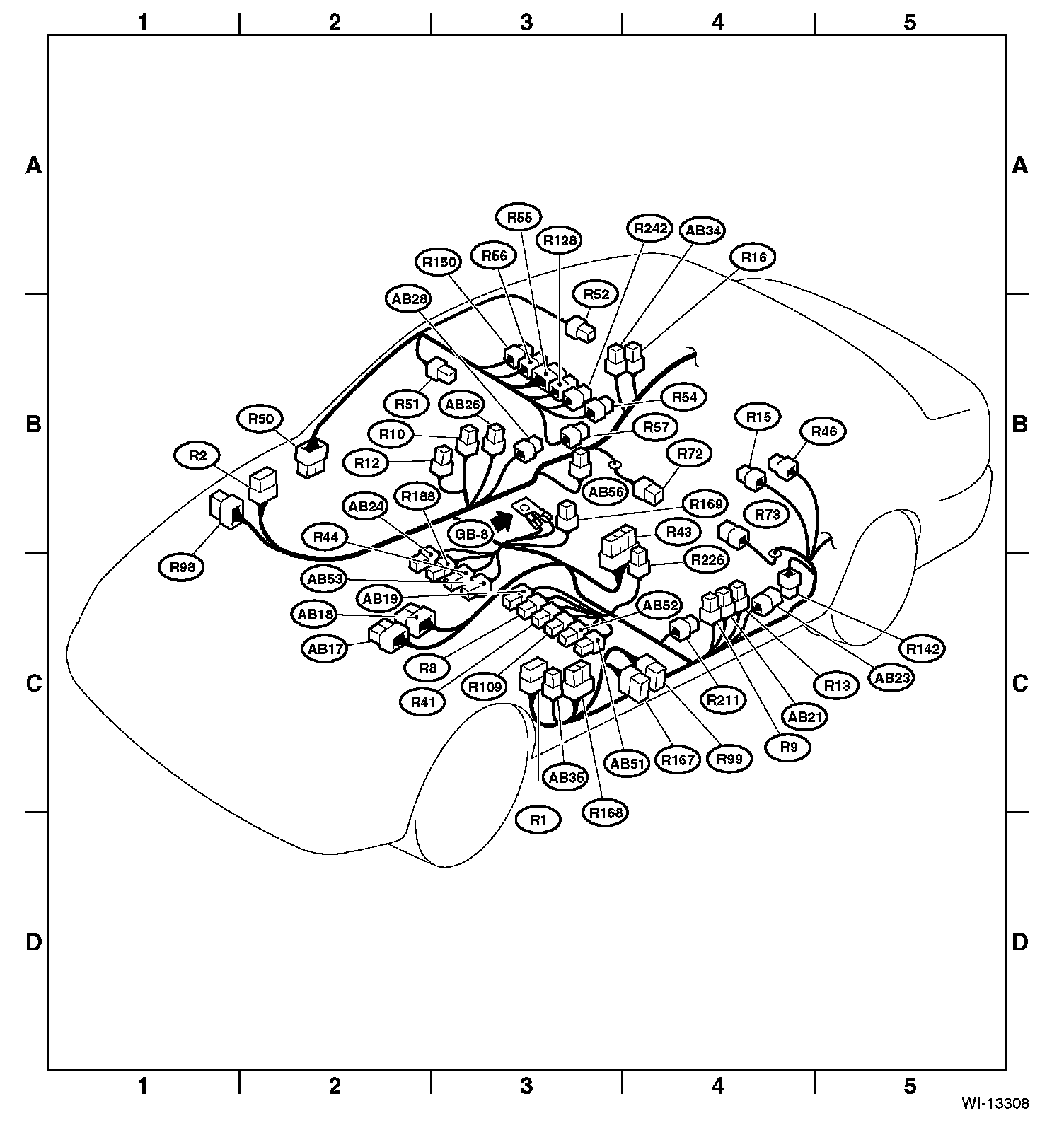

Area View:
