Data Link Connector: Diagrams

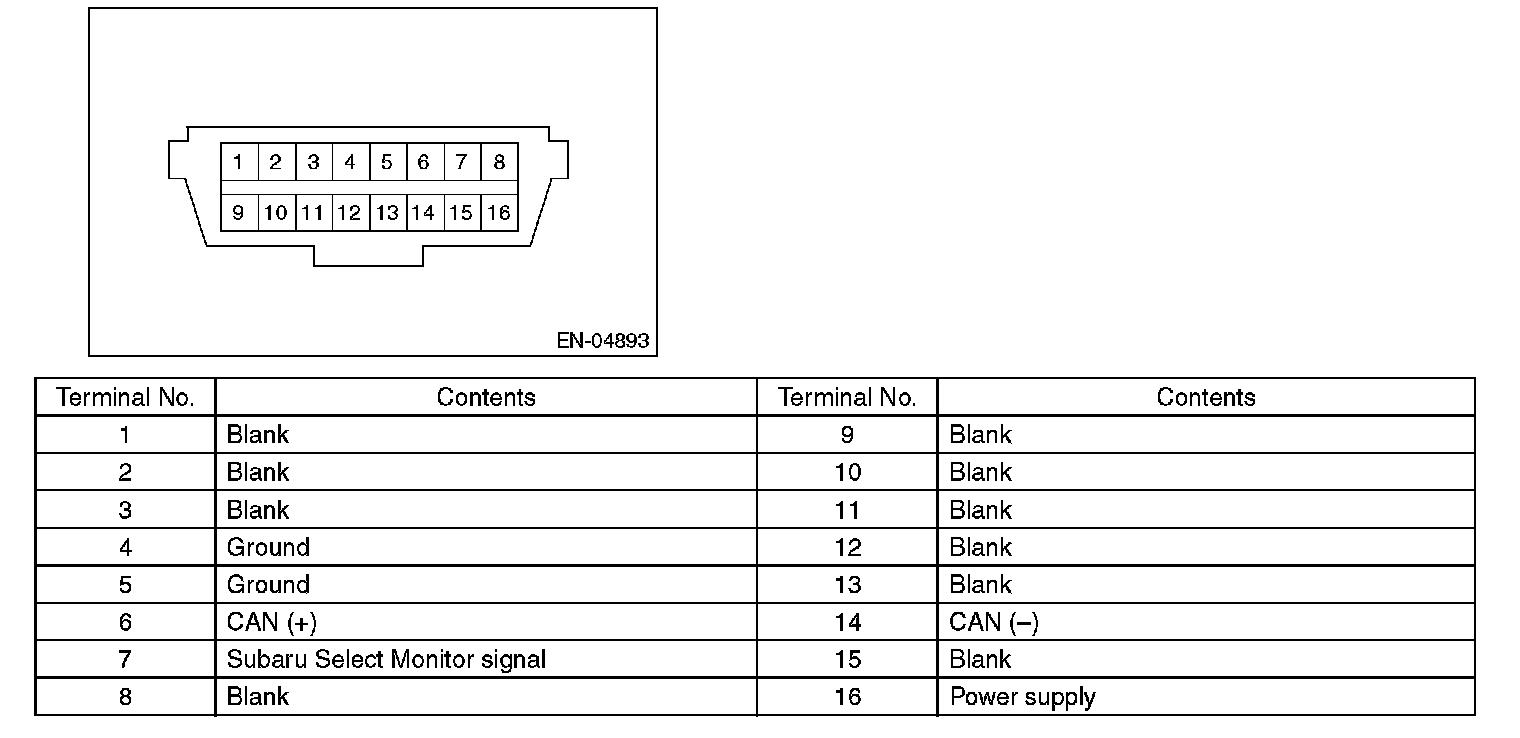

Data Link Connector






NOTE: This connector is used for Subaru Select Monitor.

CAUTION: Do not connect any scan tools except Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged.
