Computers and Control Systems: Locations

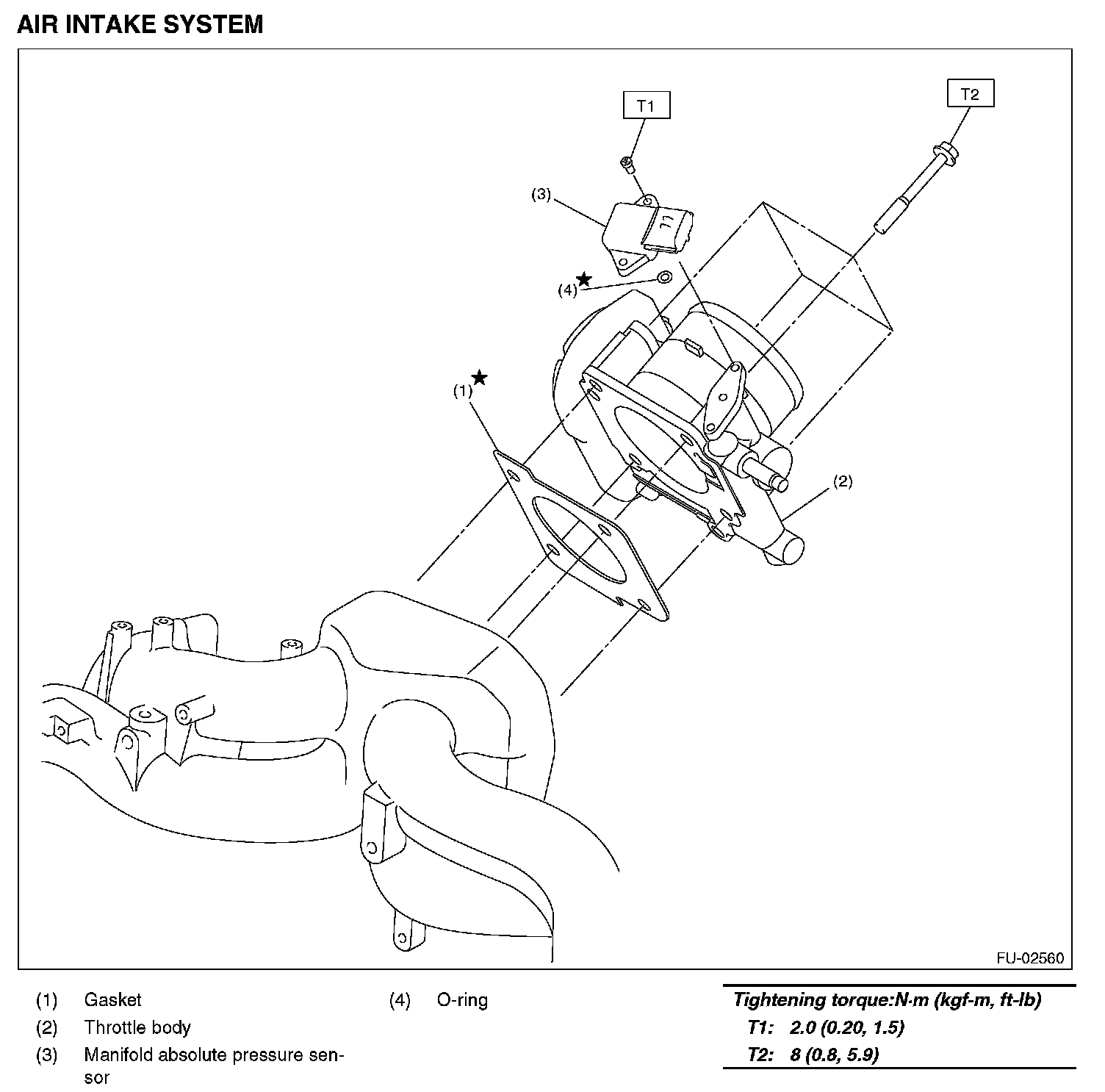

Air Intake System

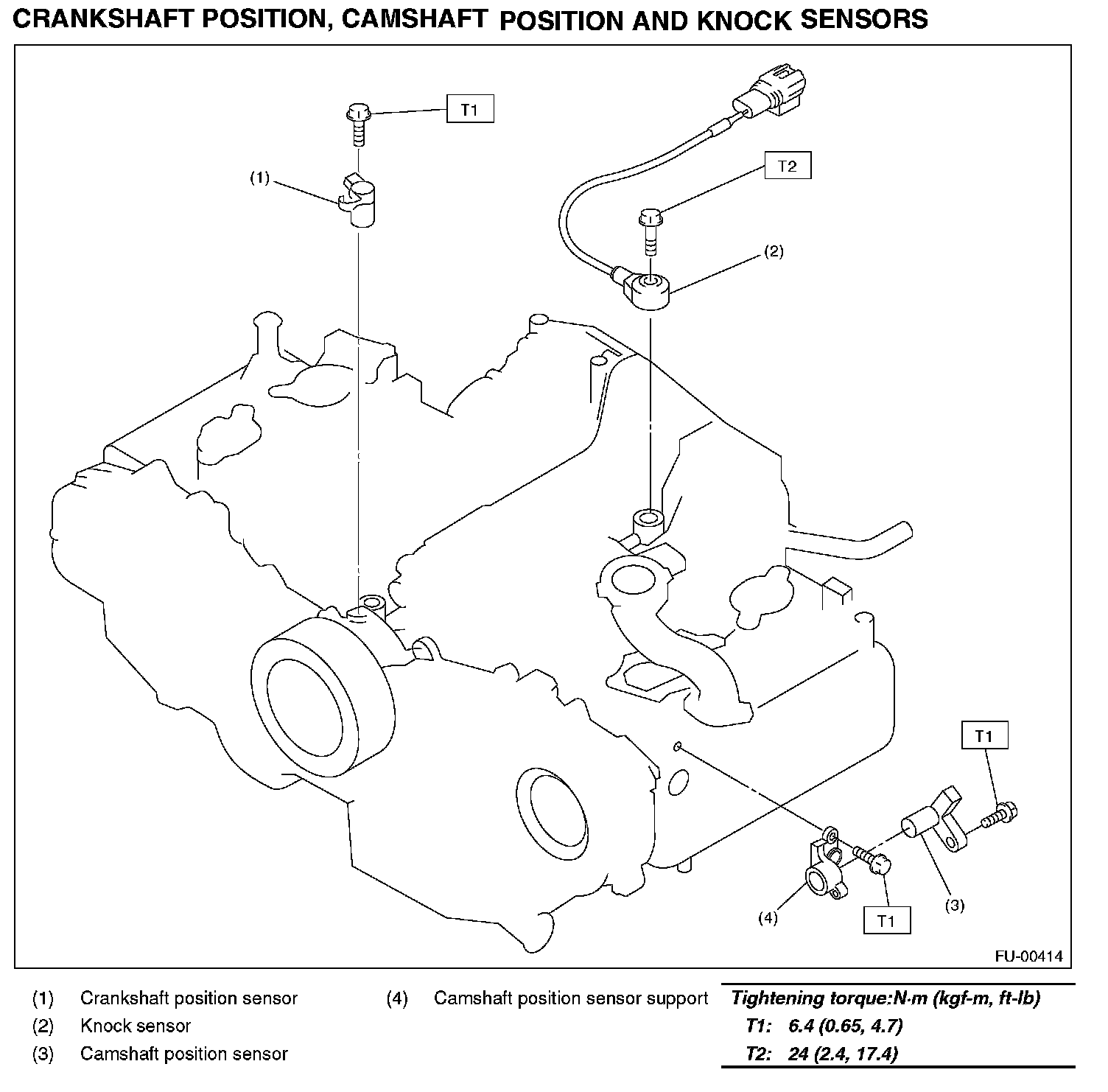

Crankshaft Position,camshaft Position And Knock Sensors:
Crankshaft Position,camshaft Position And Knock Sensors
ENGINE

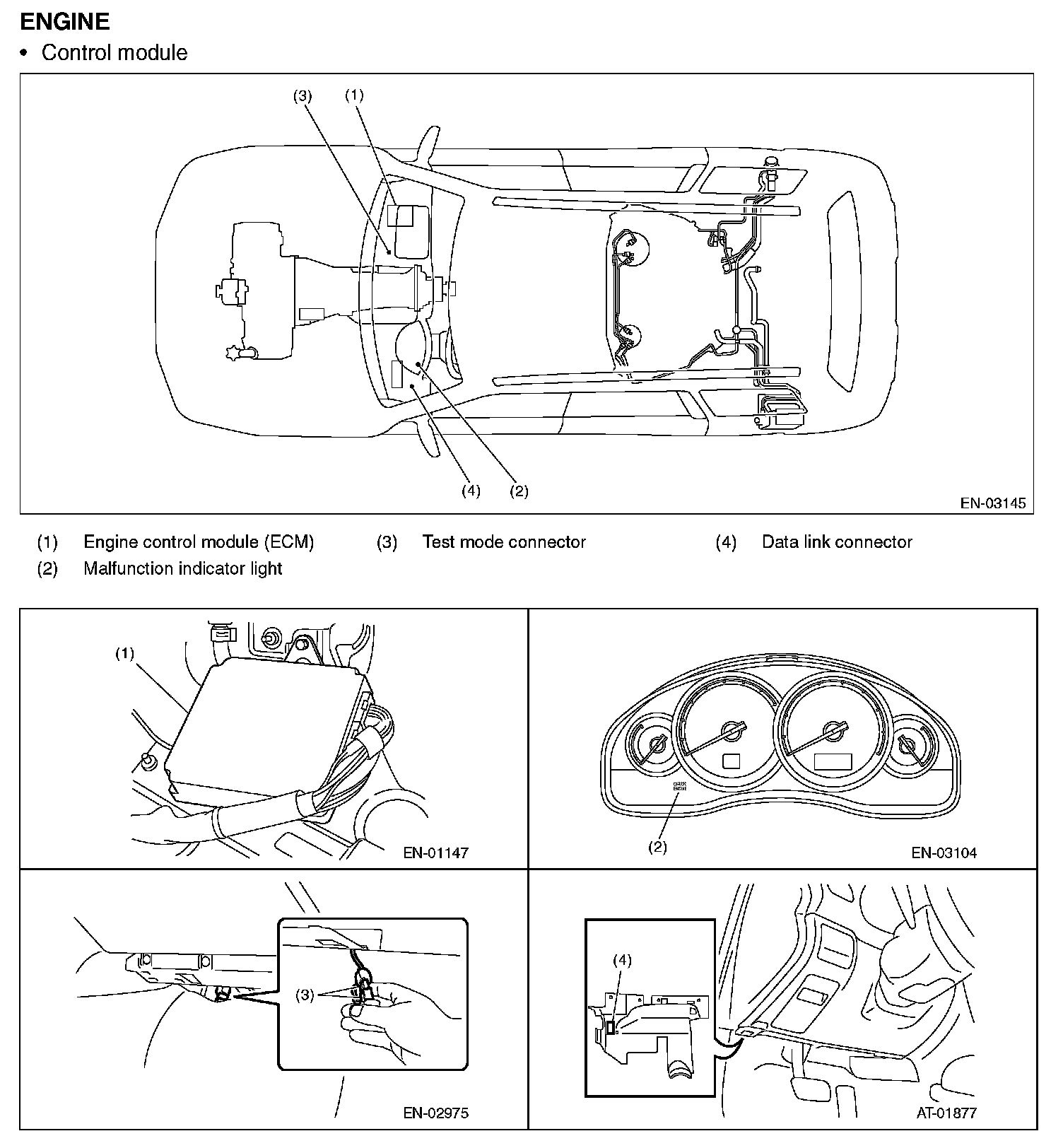

Control Module:
Control Module

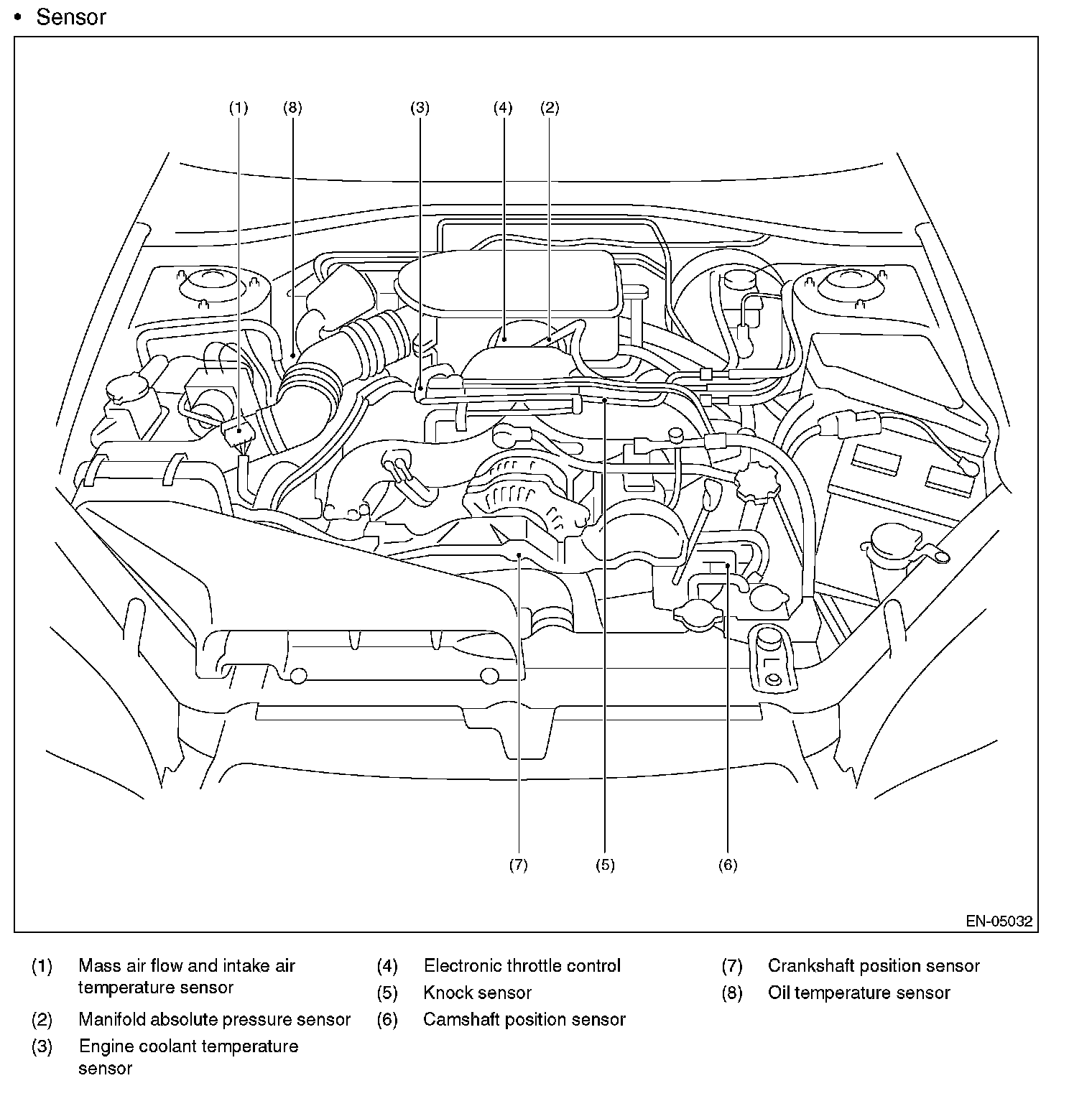

Sensor (Part 1):

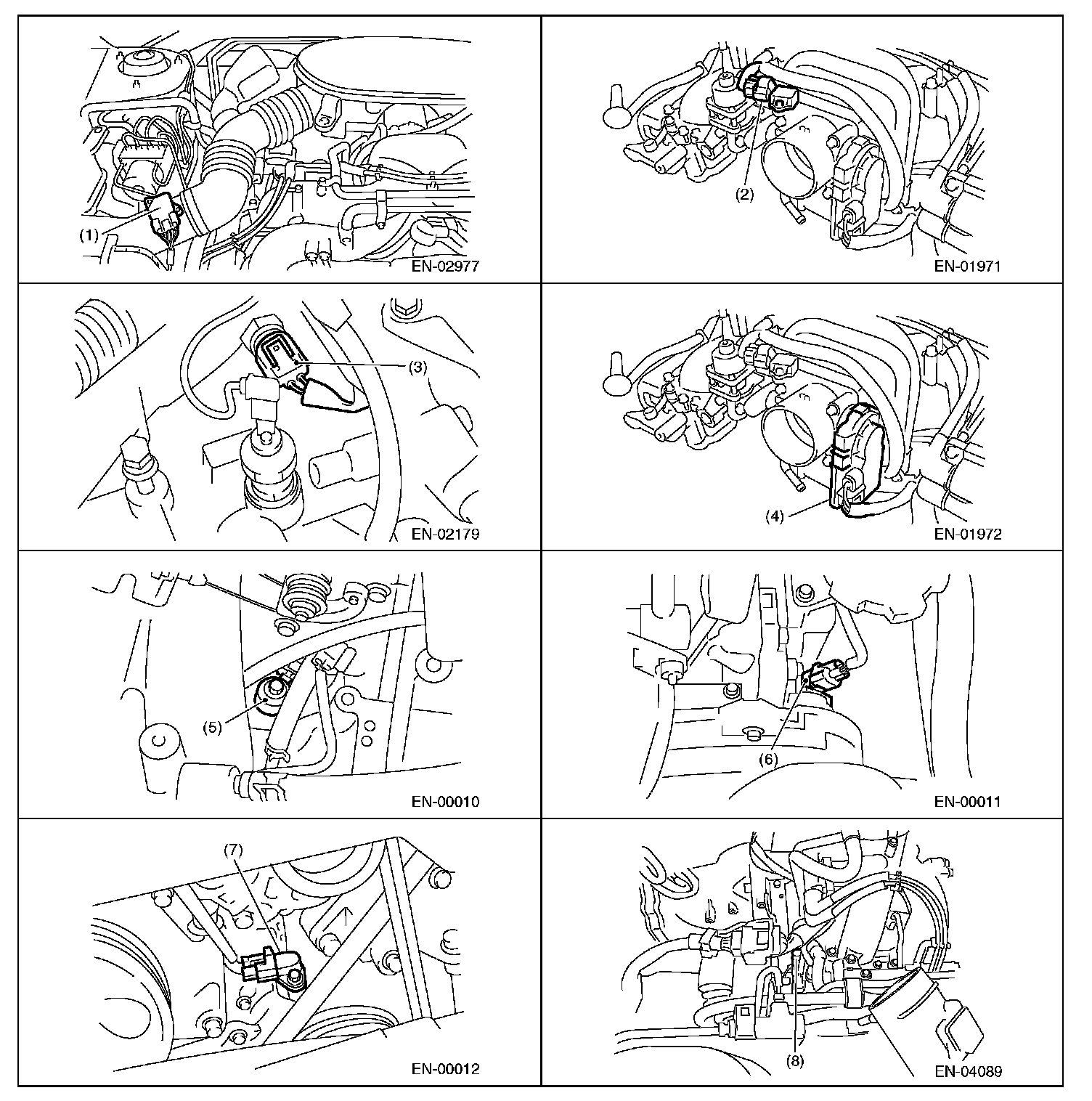

Sensor (Part 2):
Sensor (Part 3):
Sensor (Part 4):

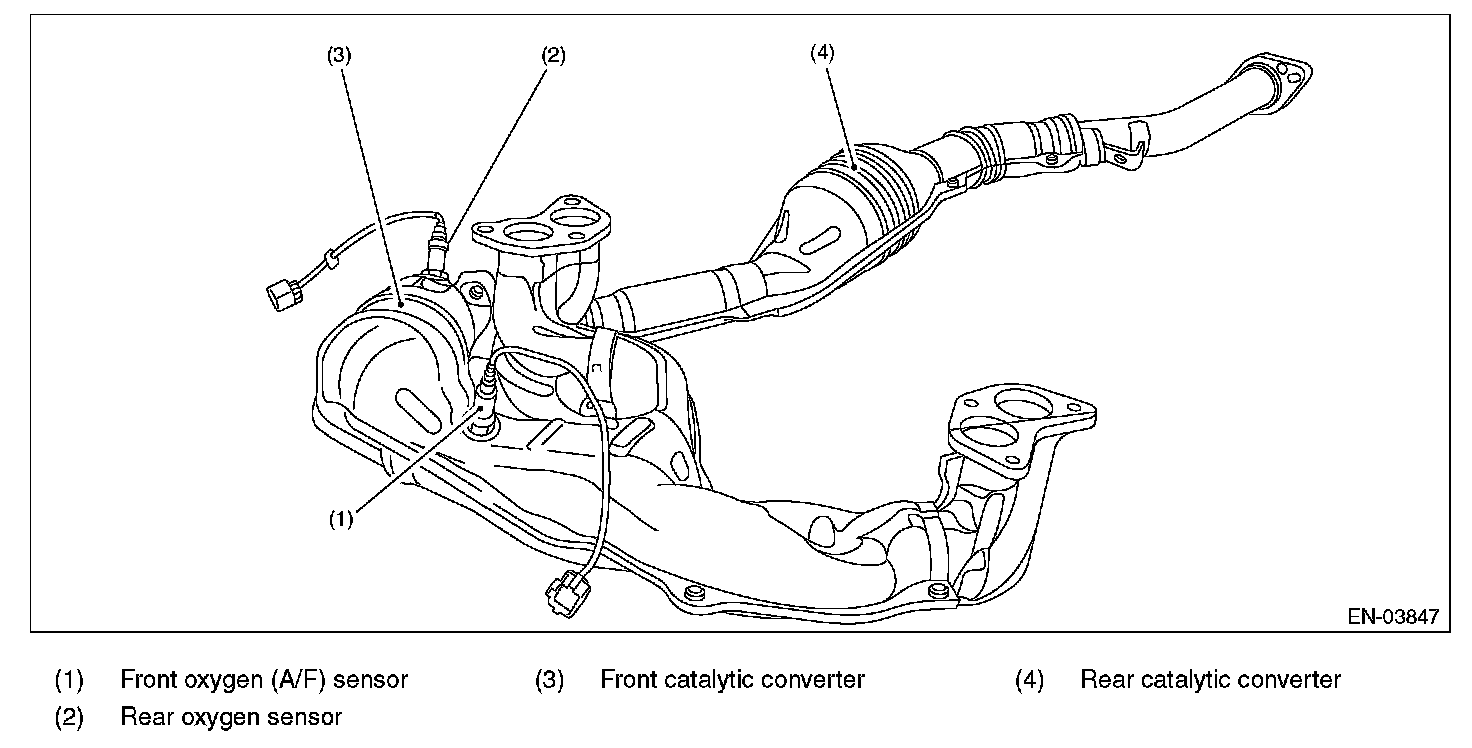

Sensor (Part 5):

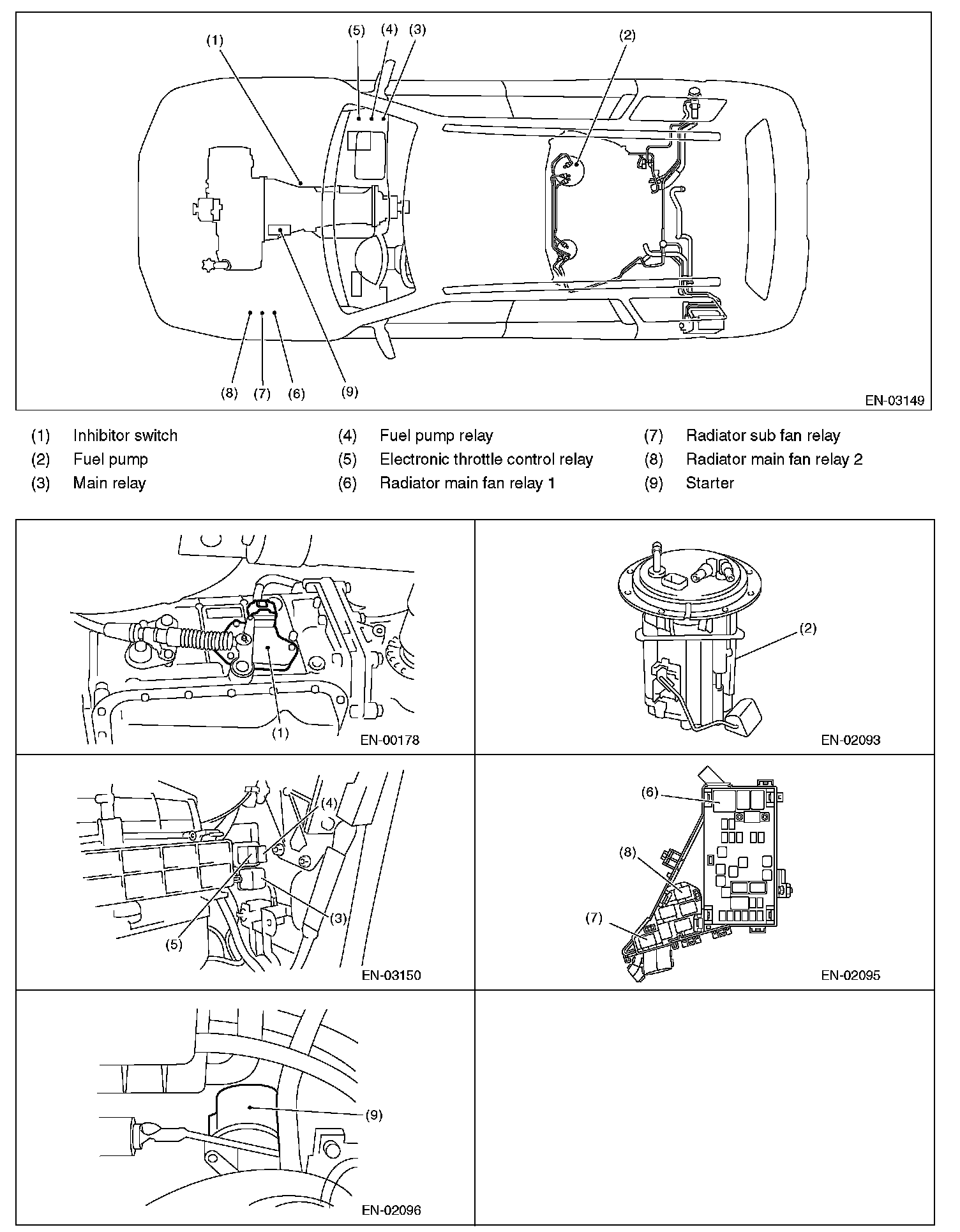

Sensor

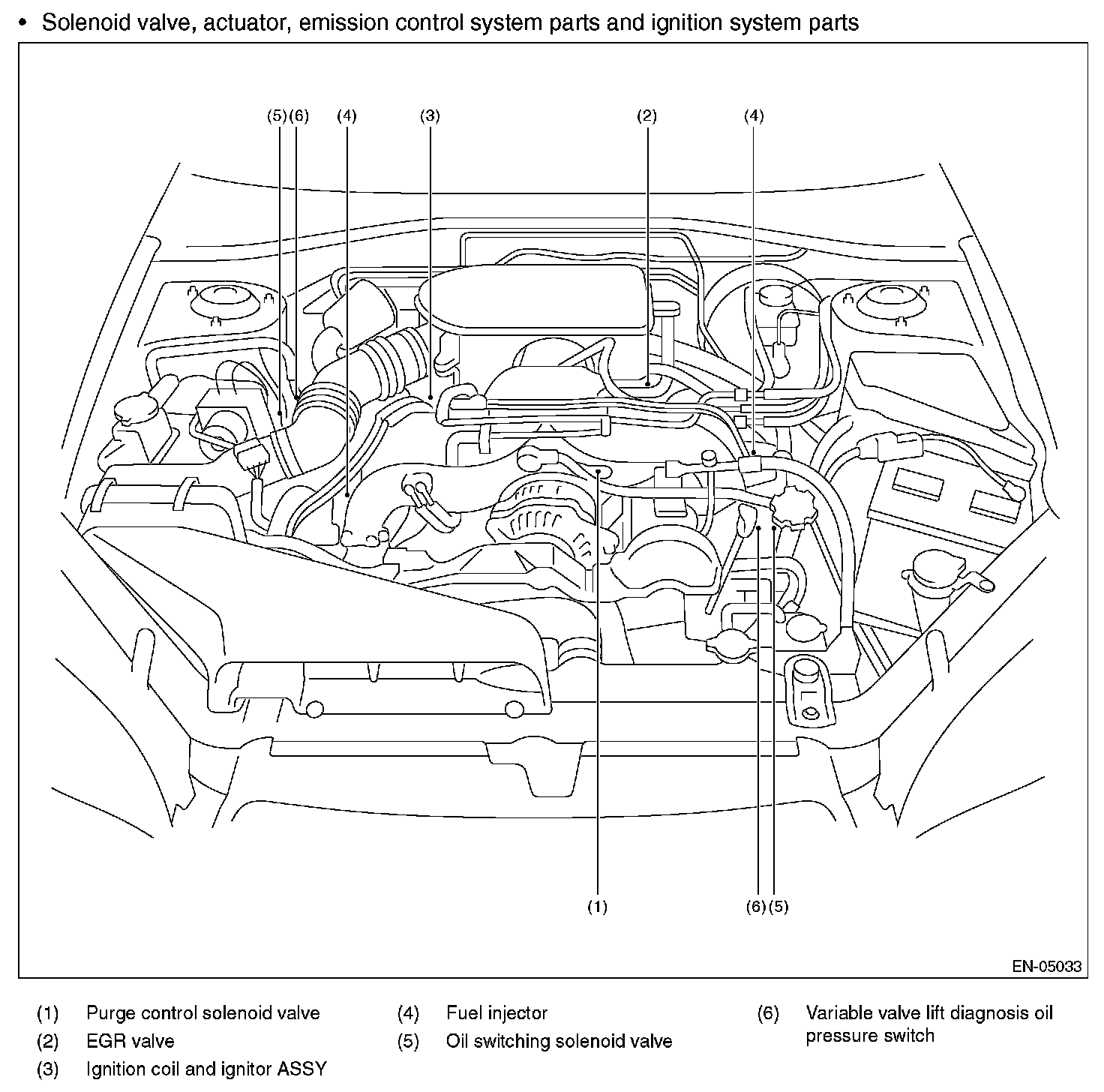

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 1):

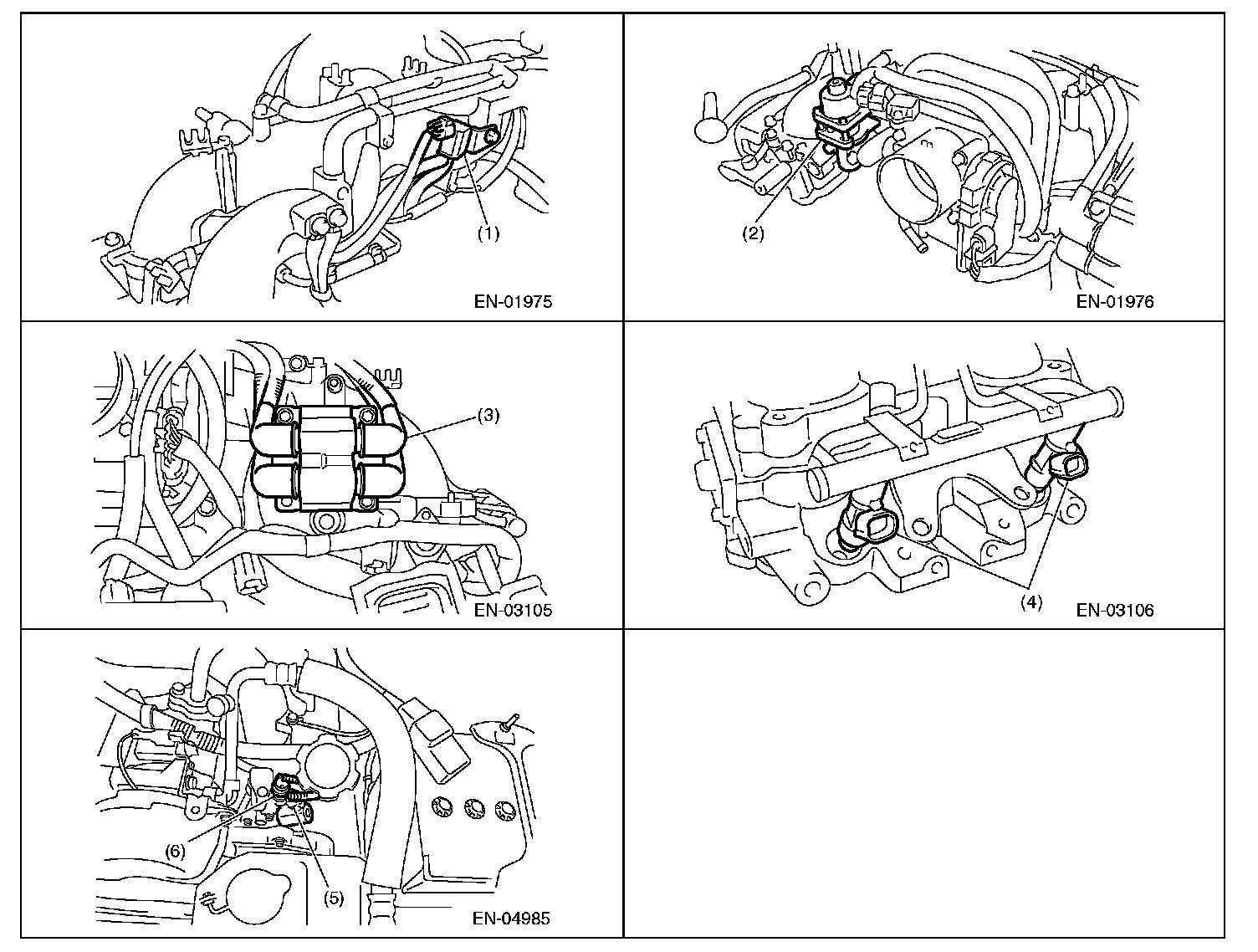

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 2):
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 3):

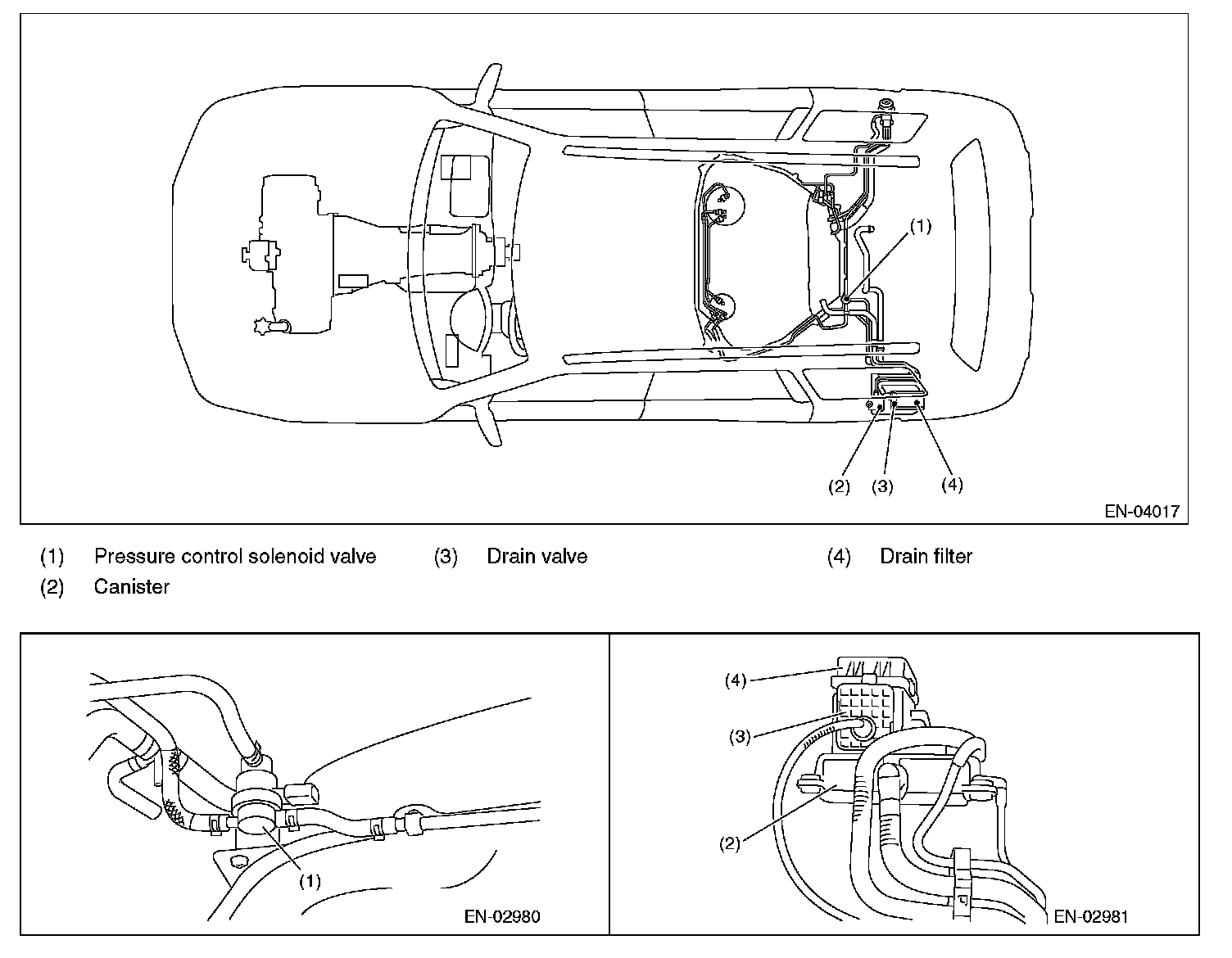

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 4):
Solenoid valve, emission control system parts and ignition system parts
