Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL

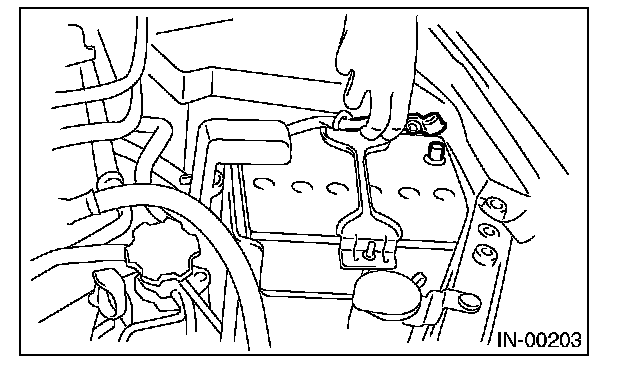

1. Disconnect the ground cable from the battery.
2. Remove the glove box.

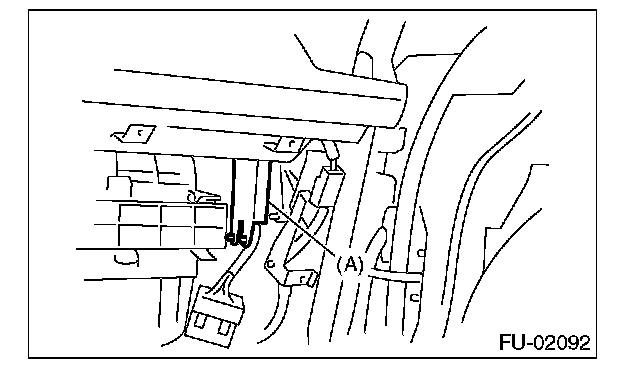

3. Remove the harness cover (A).

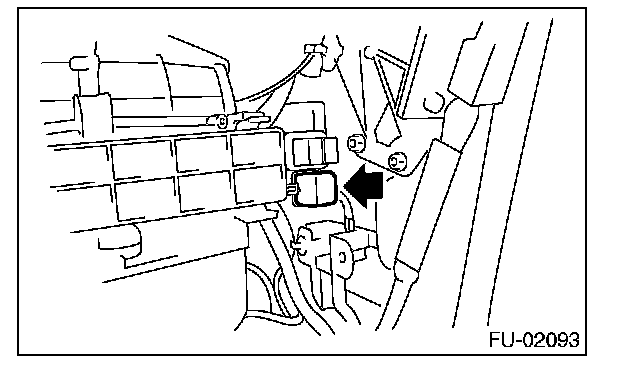

4. Disconnect the connectors from main relay.

INSTALLATION
Install in the reverse order of removal.
