Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor

REMOVAL

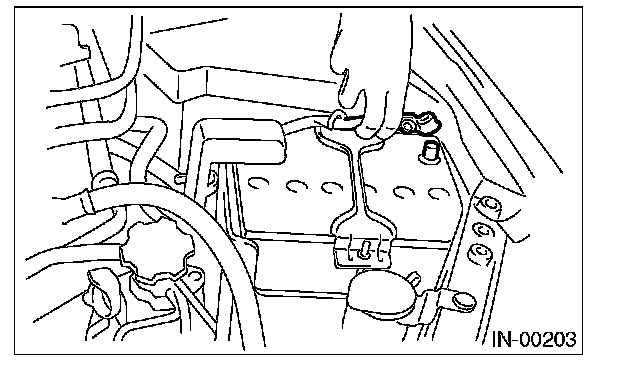

1. Disconnect the ground cable from the battery.
2. Remove the air intake chamber.
3. Remove the engine harness connector from the bracket.

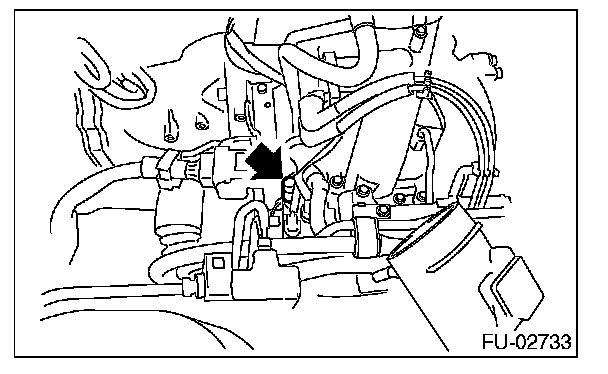

4. Disconnect the connector from the oil temperature sensor.




5. Remove the oil temperature sensor.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
