Engine Control Module: Service and Repair

Engine Control Module (ECM)

REMOVAL

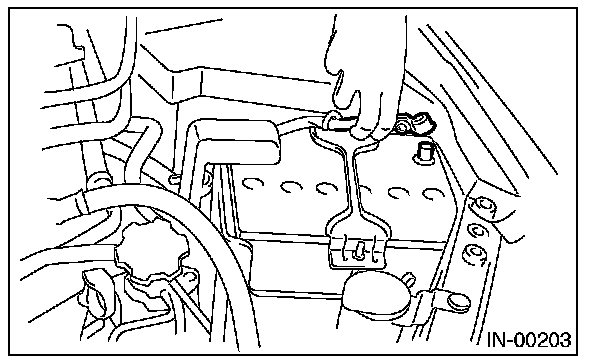

1. Disconnect the ground cable from the battery.
2. Remove the lower inner trim of passenger's side.
3. Detach the floor mat of passenger's seat.

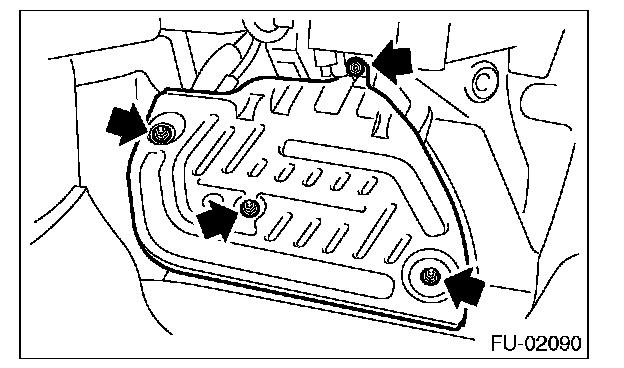

4. Remove the protect cover.

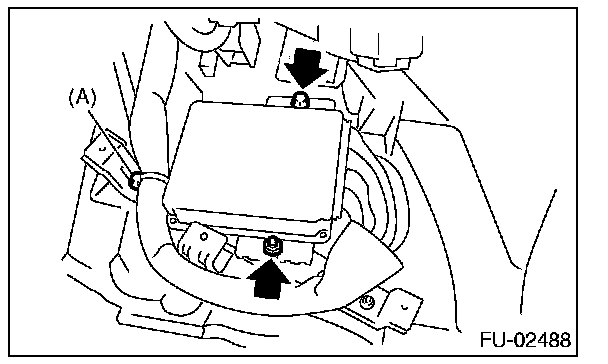

5. Remove the bolts and nuts which hold the ECM to the bracket.




6. Remove the clip (A) from bracket.
7. Disconnect the ECM connectors, and take out the ECM.

INSTALLATION
Install in the reverse order of removal.

NOTE:
- When replacing the ECM, be careful not to use the ECM for wrong specifications to avoid any damage to fuel injection system.
- When replacing the ECM, be careful not to damage the harnesses and connectors.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
