Diagnostic Trouble Code (DTC) Is Not Stored

DIAGNOSTIC TROUBLE CODE (DTC) IS NOT STORED

DIAGNOSIS:
Defective combination meter

TROUBLE SYMPTOM:
- Communication error display in odo/trip meter is not cleared. (Except for meter with MID)
- No trouble code is displayed on Subaru Select Monitor.

NOTE: If DTC is not displayed on Subaru Select Monitor, LAN communication System should be OK.

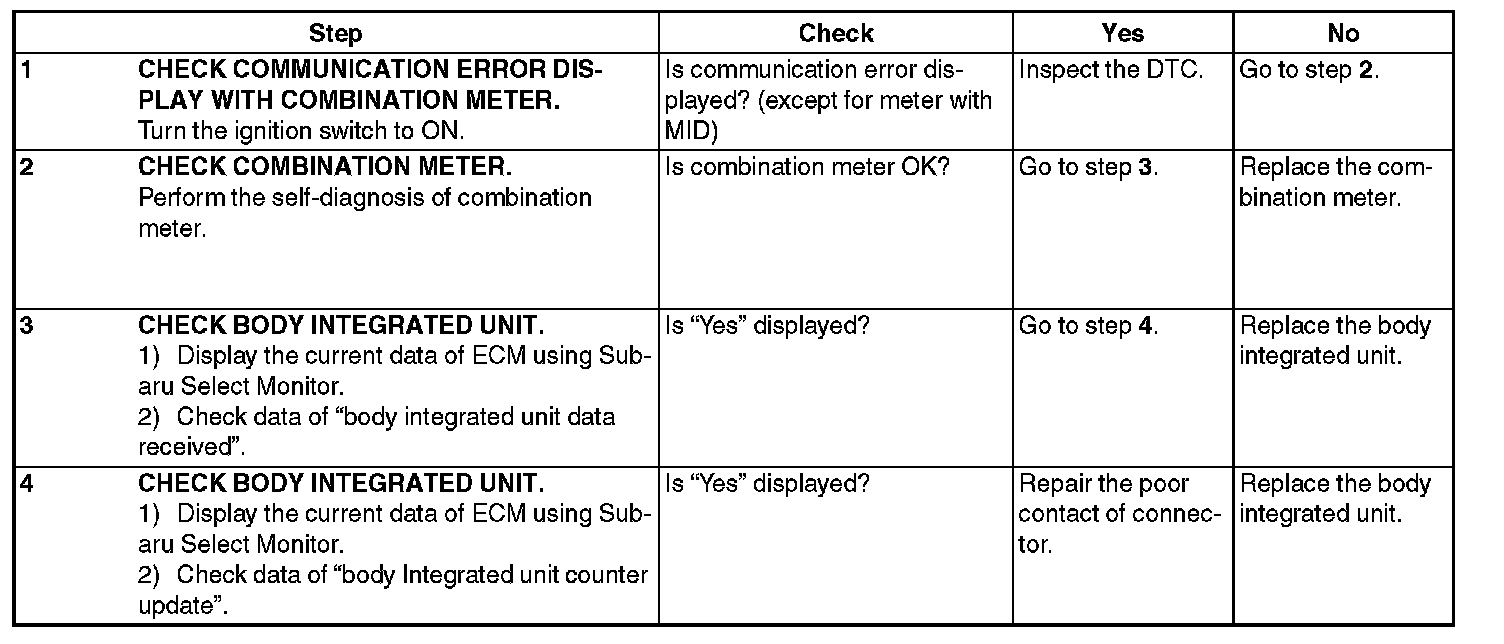

Step 1-4:
