Transmission Position Sensor/Switch: Locations

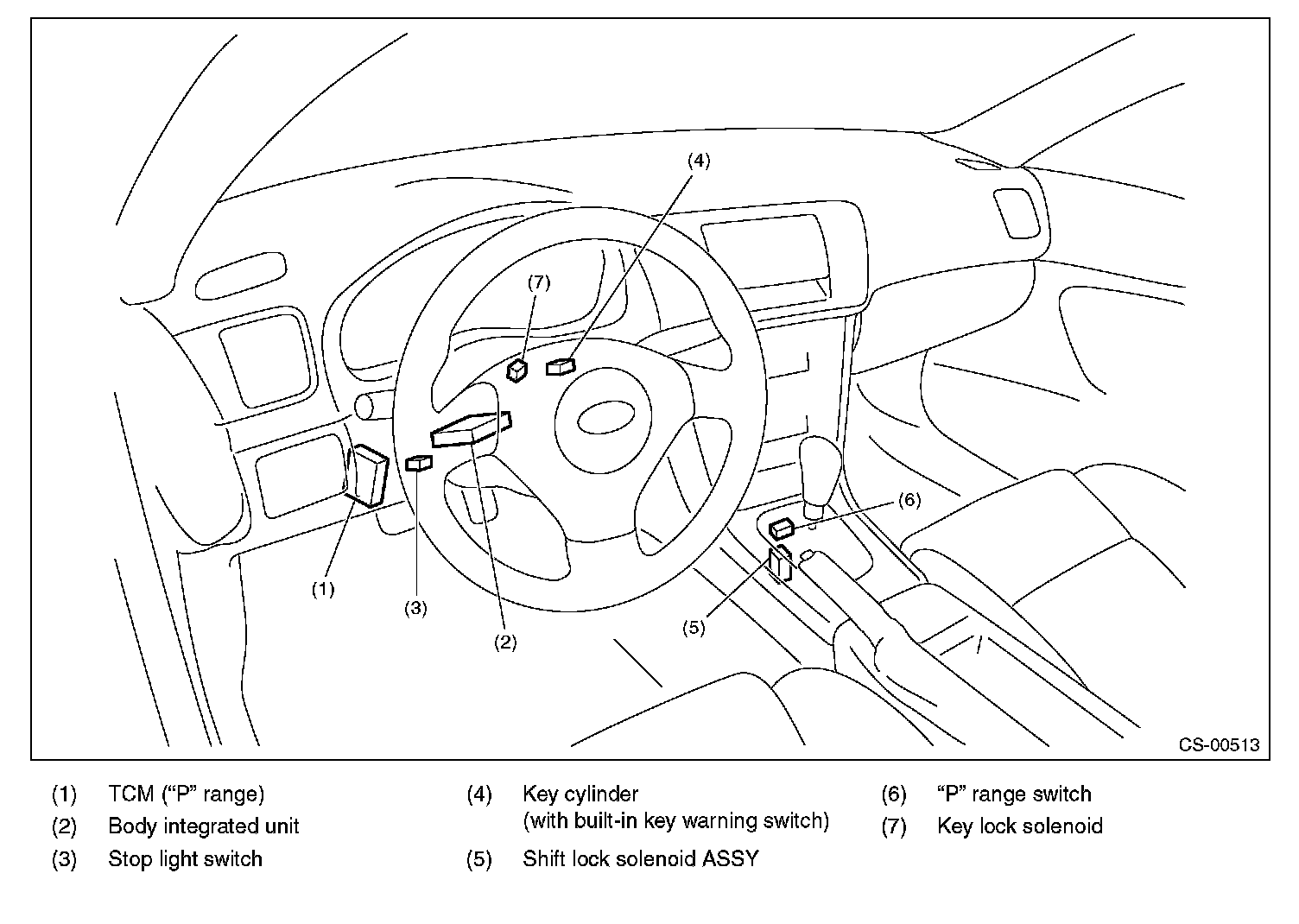

AT Shift Lock Control System (Part 1):

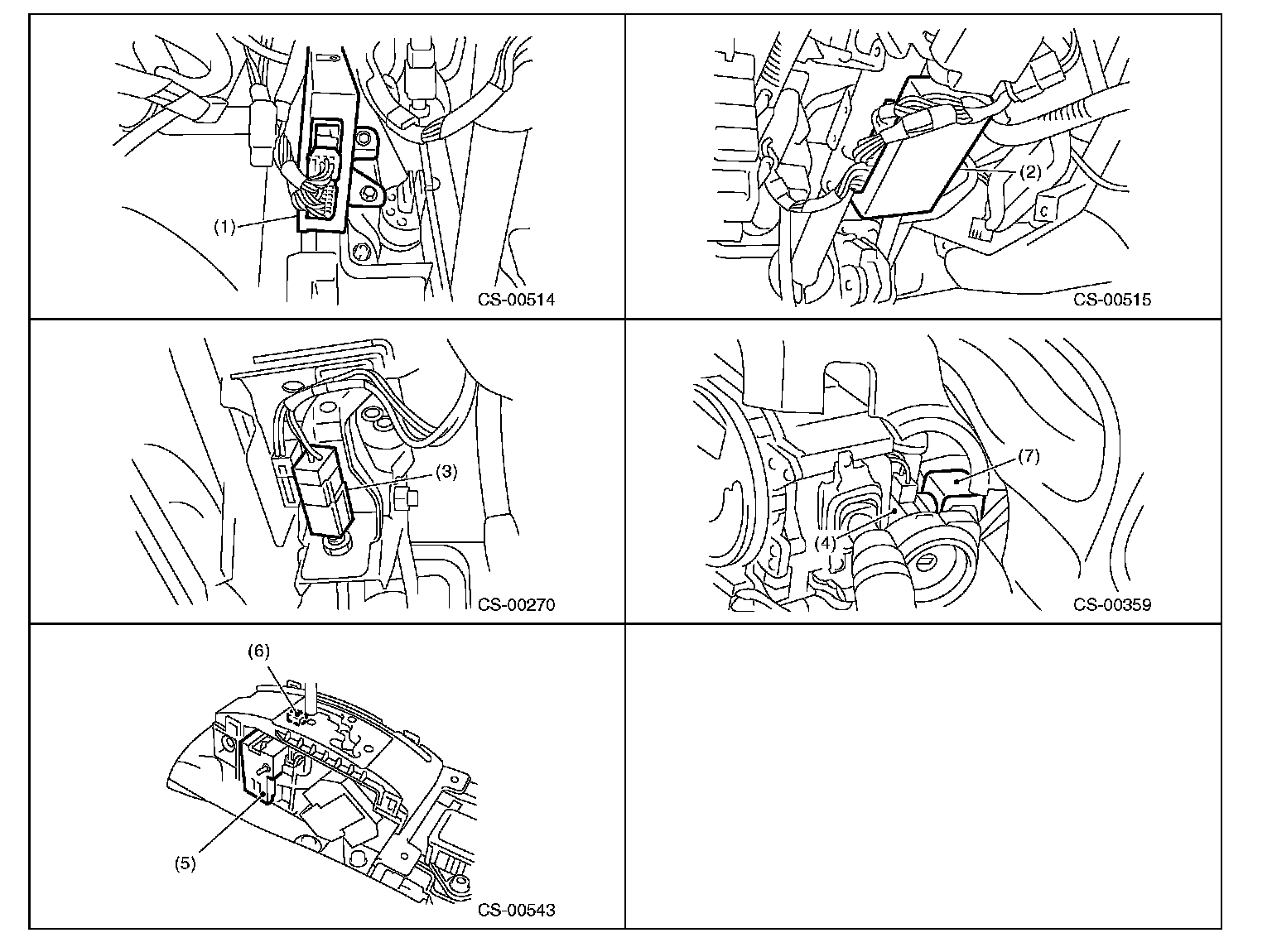

AT Shift Lock Control System (Part 2):
