Transmission Position Sensor/Switch: Service and Repair

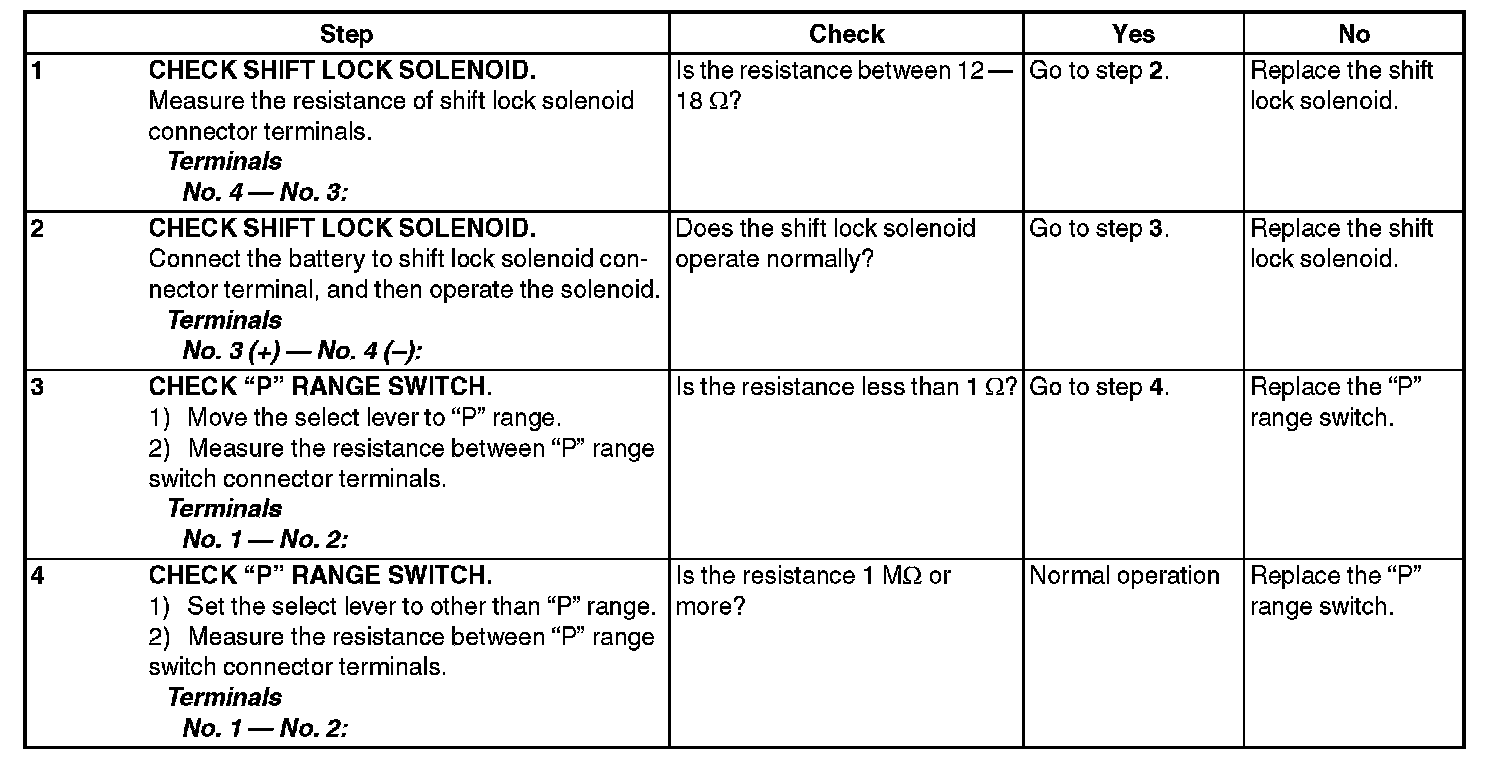

AT Shift Lock Solenoid and "P" Range Switch
INSPECTION
Step 1-4:
