Ignition System: Testing and Inspection

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.

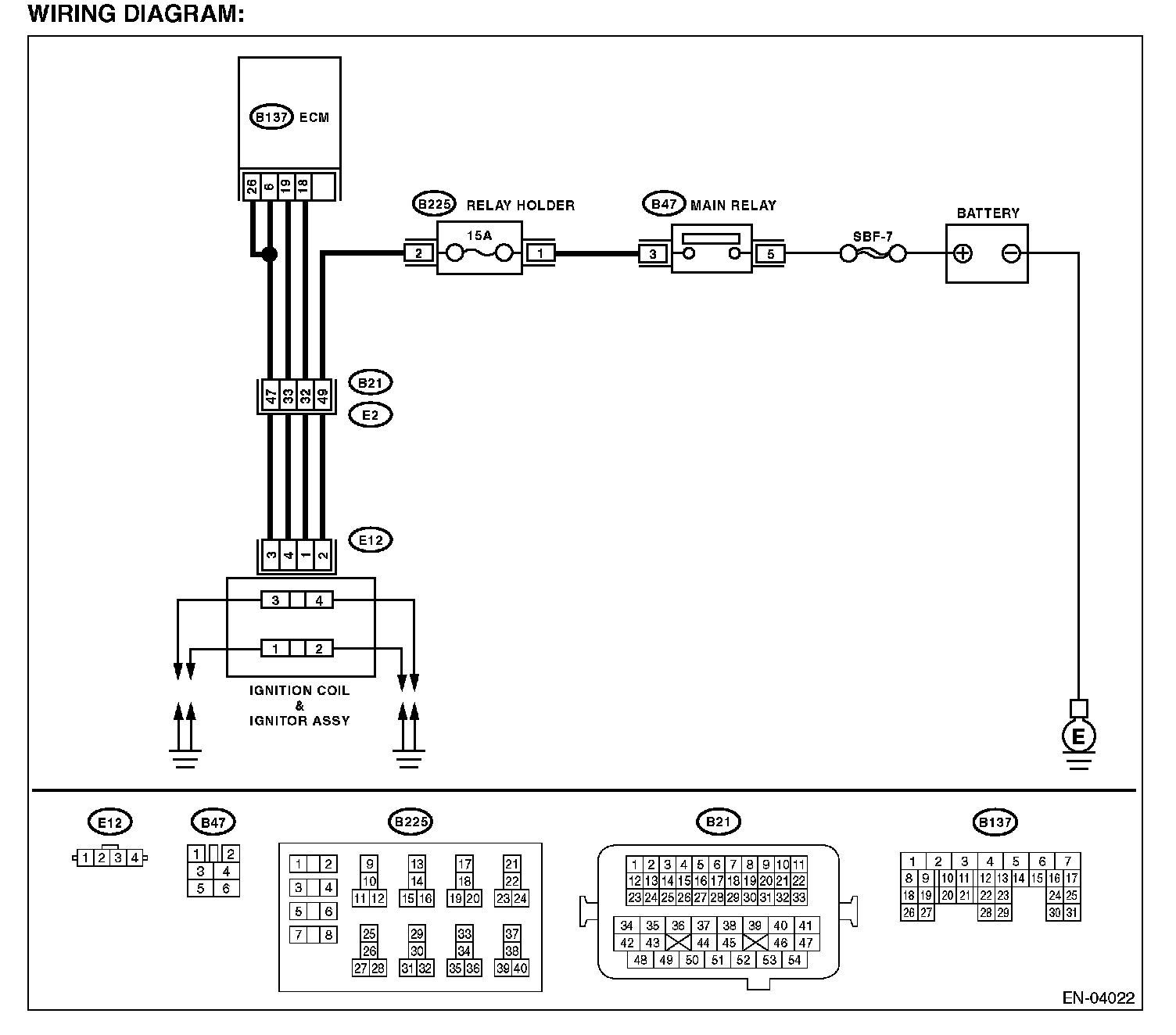

Wiring Diagram:

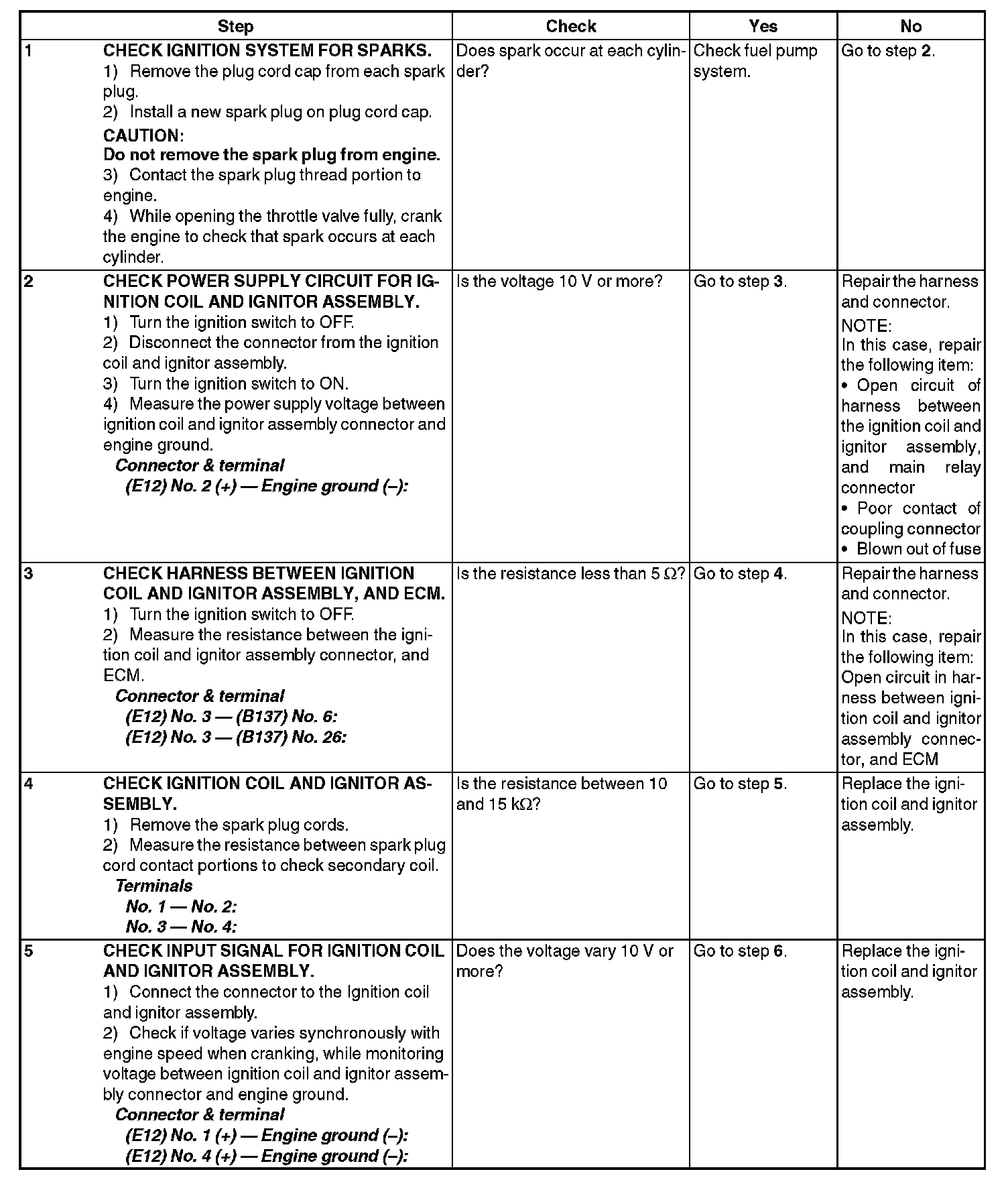

Step 1-5:

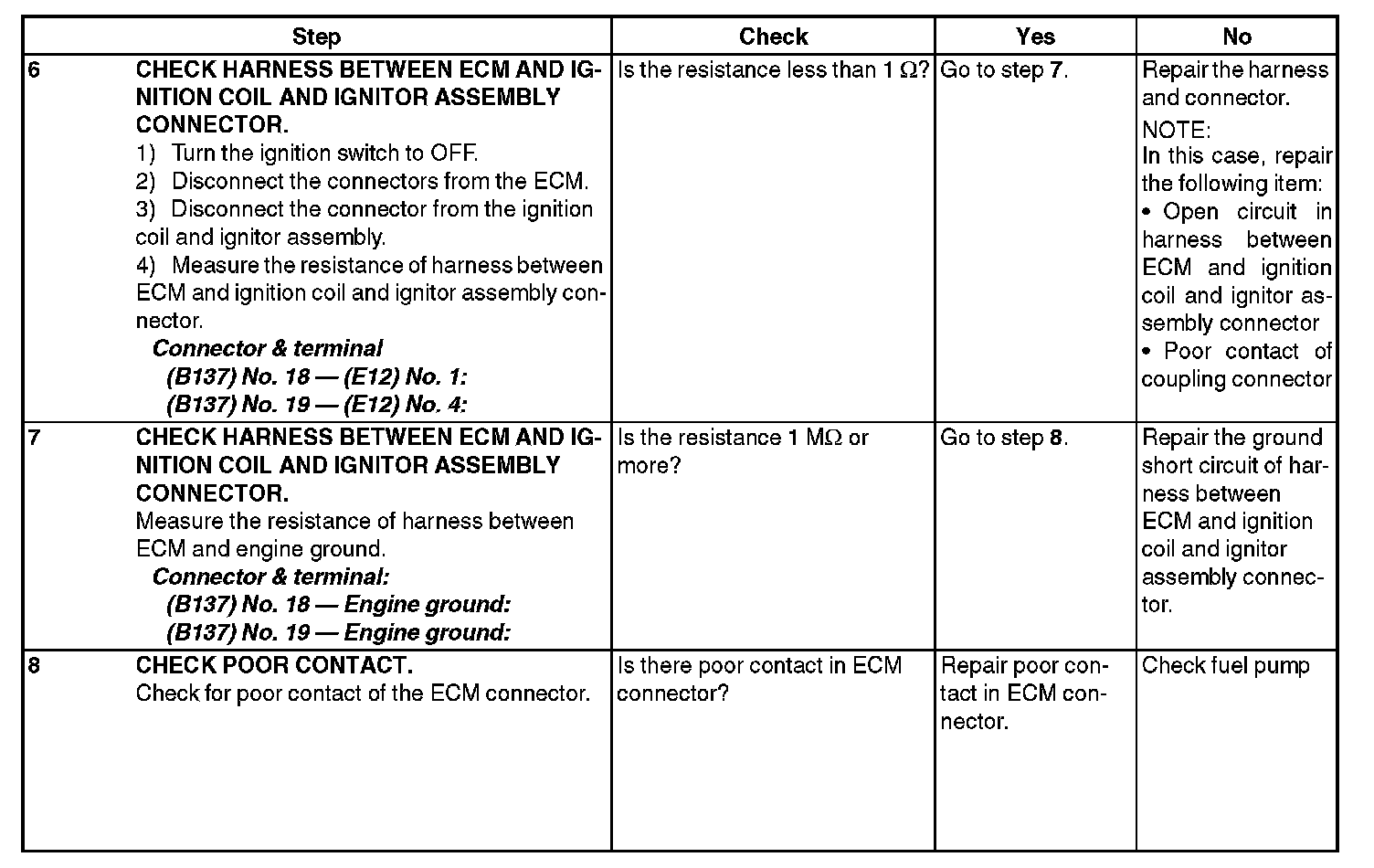

Step 6-8:
