Diagnostic Procedure For Subaru Select Monitor Communication

Diagnostic Procedure for Subaru Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS
Defective harness connector

TROUBLE SYMPTOM
Subaru Select Monitor communication failure

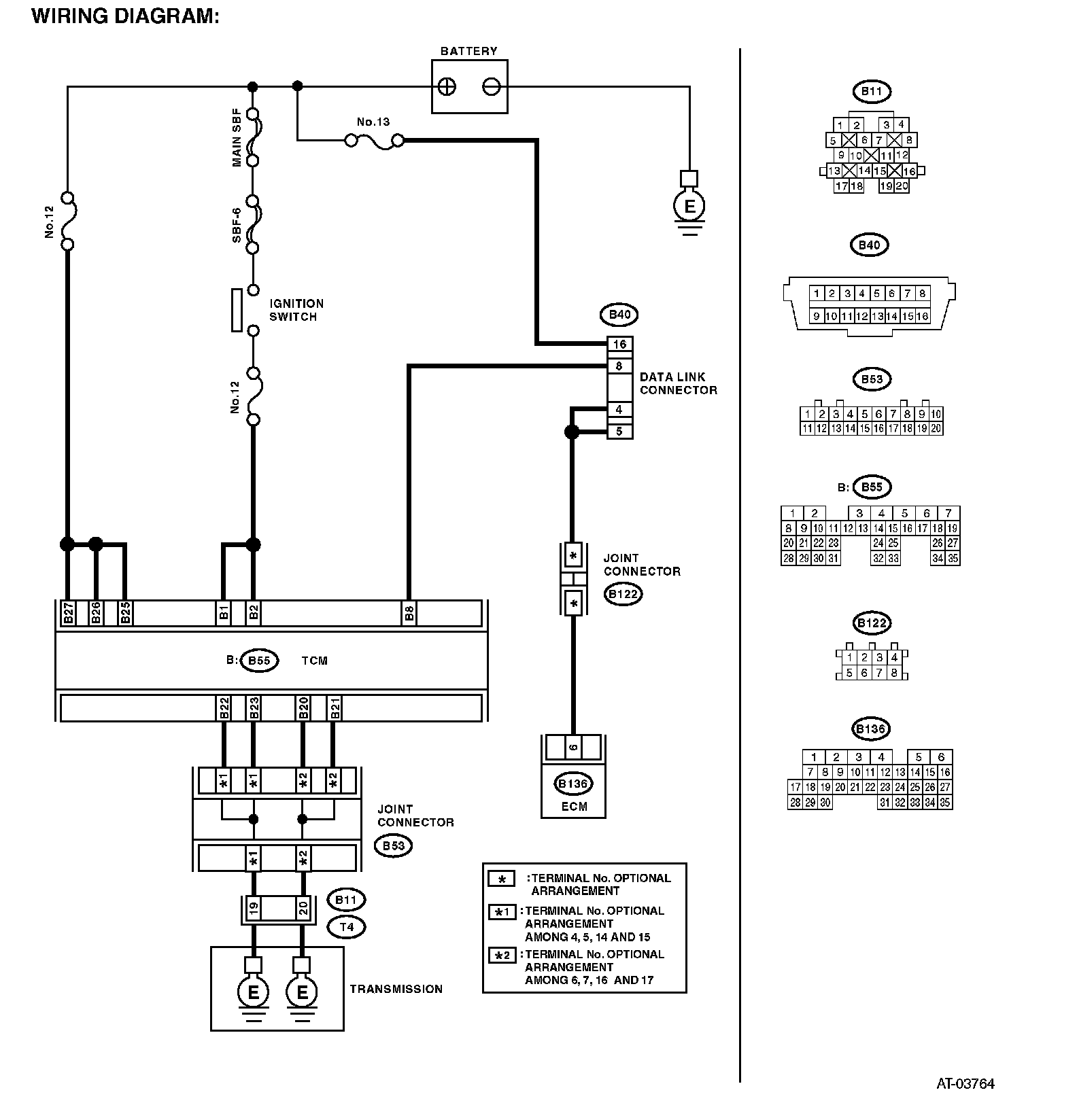

WIRING DIAGRAM:

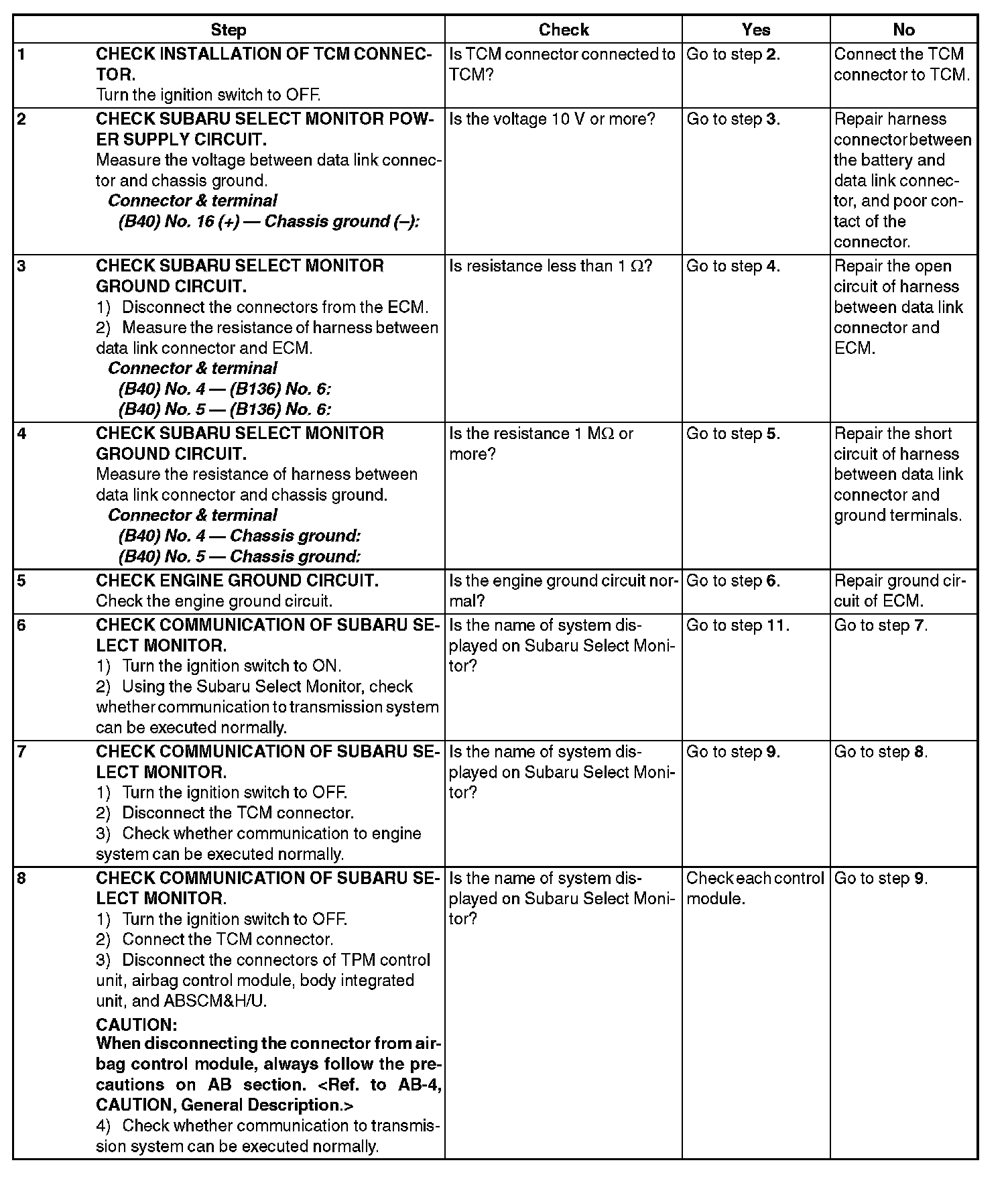

Step 1-8:

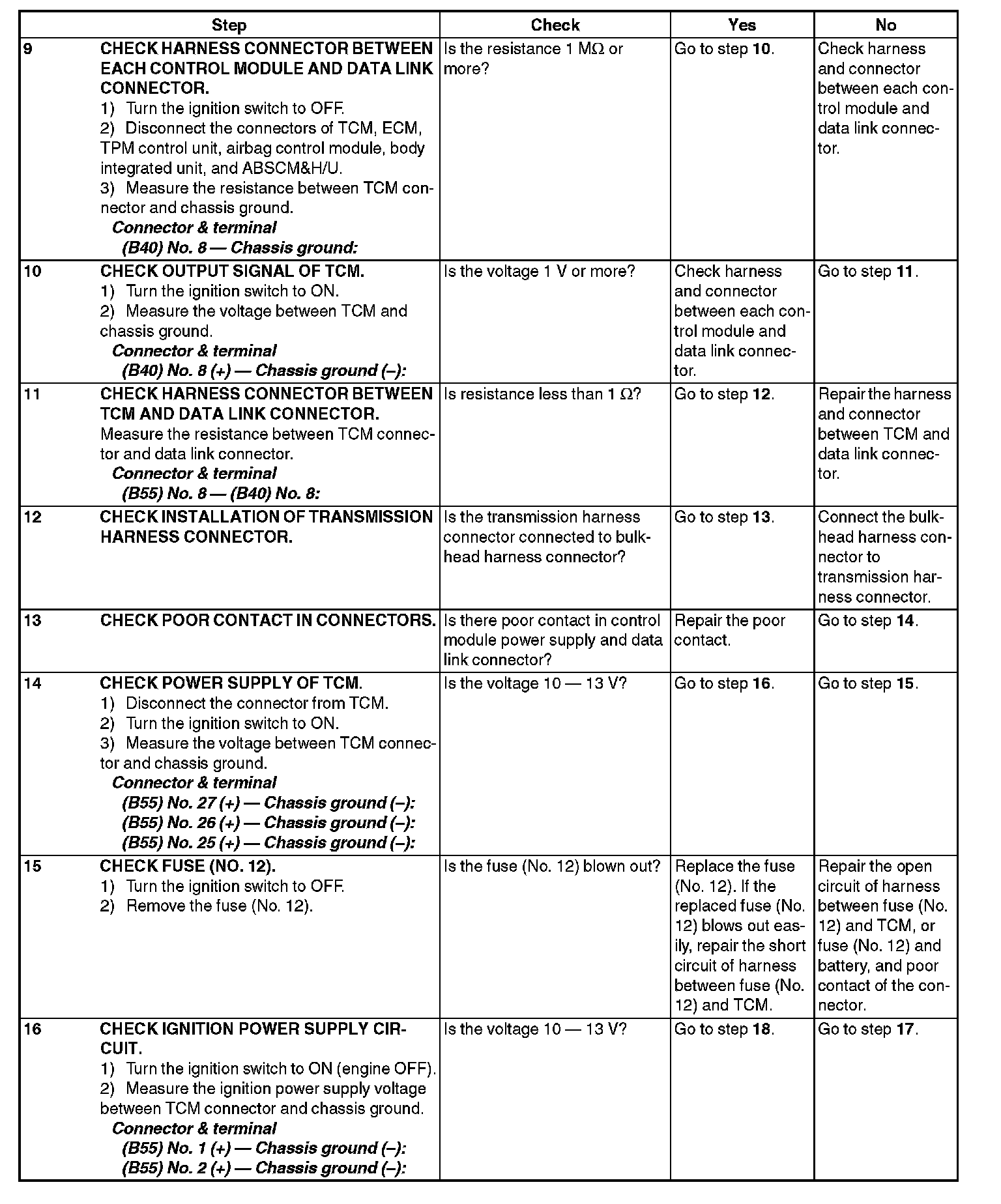

Step 9-16:

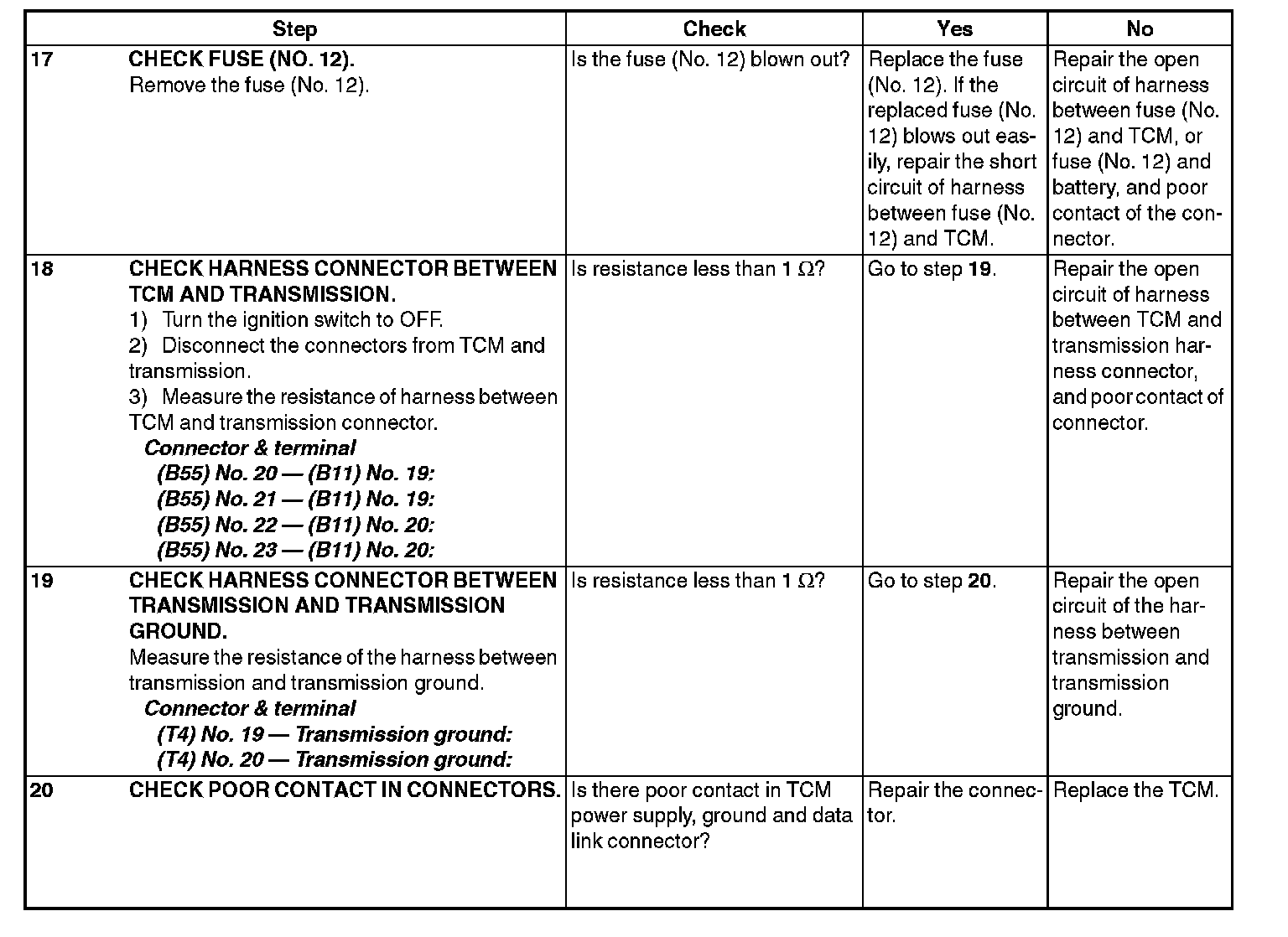

Step 17-20:
