Restraints and Safety Systems: Service and Repair

Roll Connector

REMOVAL
1. Turn the ignition switch to OFF.
2. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.
3. Remove the driver's airbag module.
4. Remove the steering wheel.
5. Remove the steering column cover.

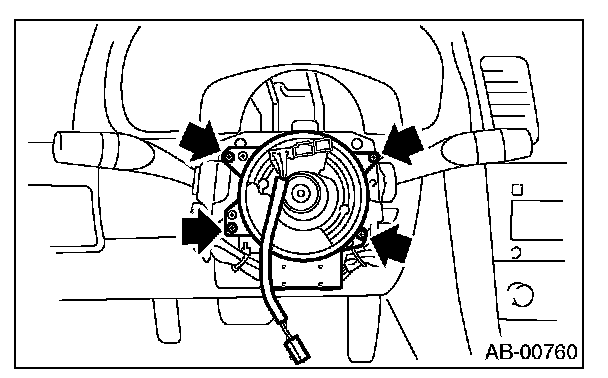

6. Remove the screws, and then remove the roll connector.

INSTALLATION
1. Install in the reverse order of removal.
2. Before installing steering wheel, be sure to adjust the direction of roll connector with steering.
