System Specifications

General Description

SPECIFICATION

1. HEATER SYSTEM

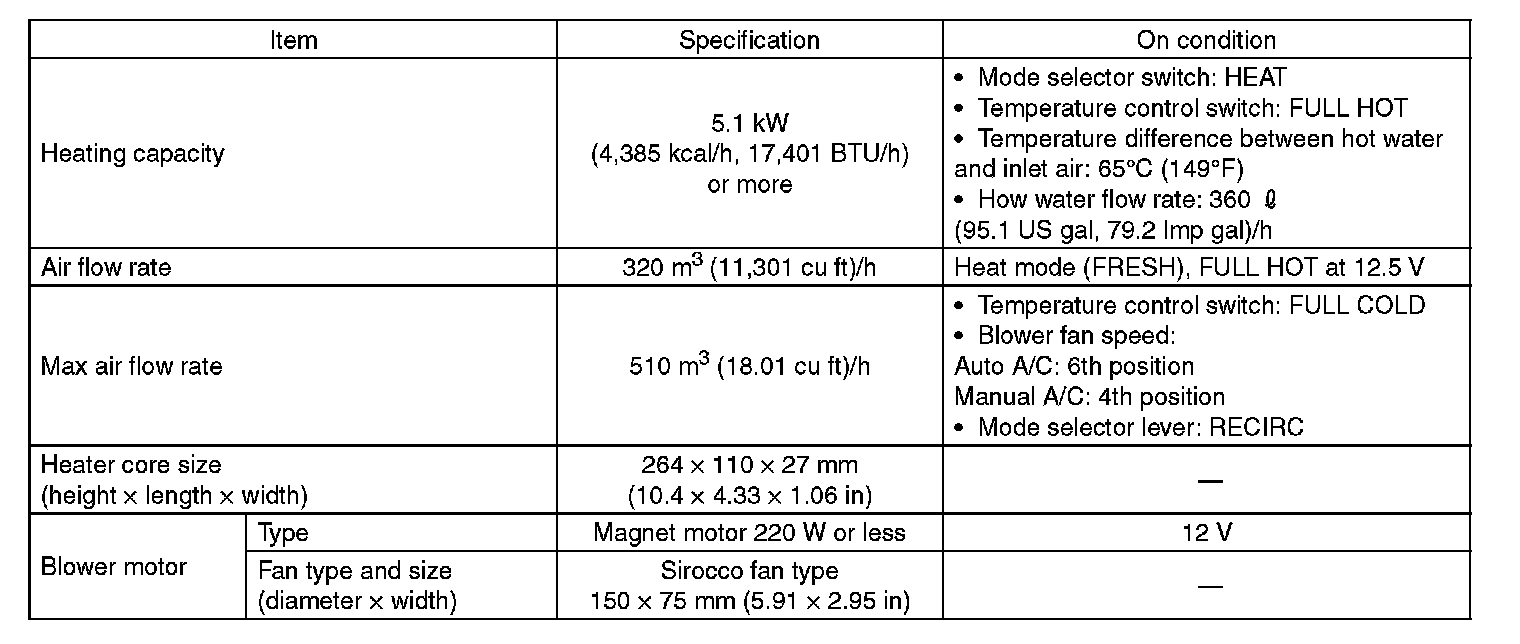

Heater System:






2. A/C SYSTEM
- Auto A/C model

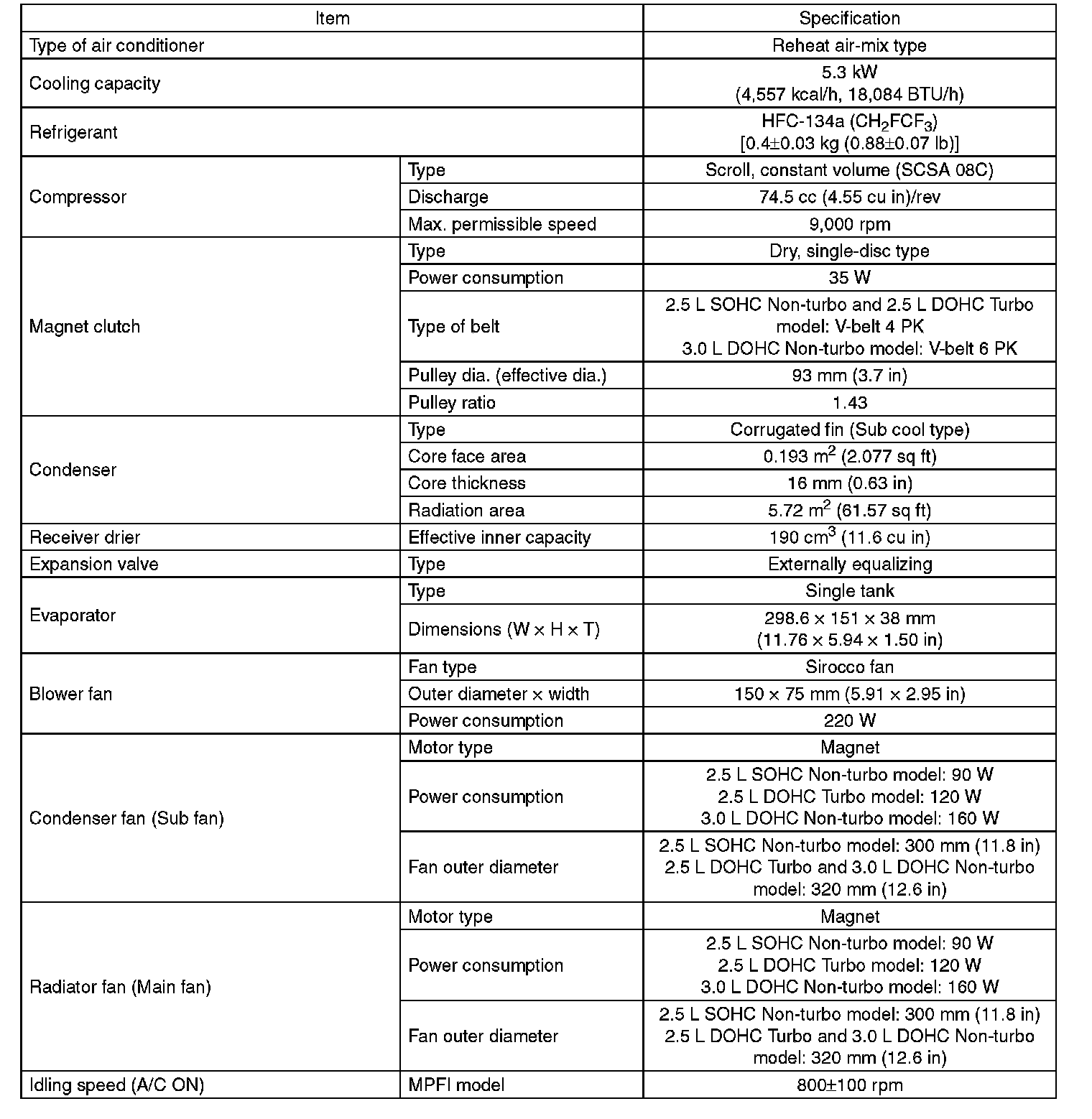

A/C System - Auto A/C Model (Part 1):

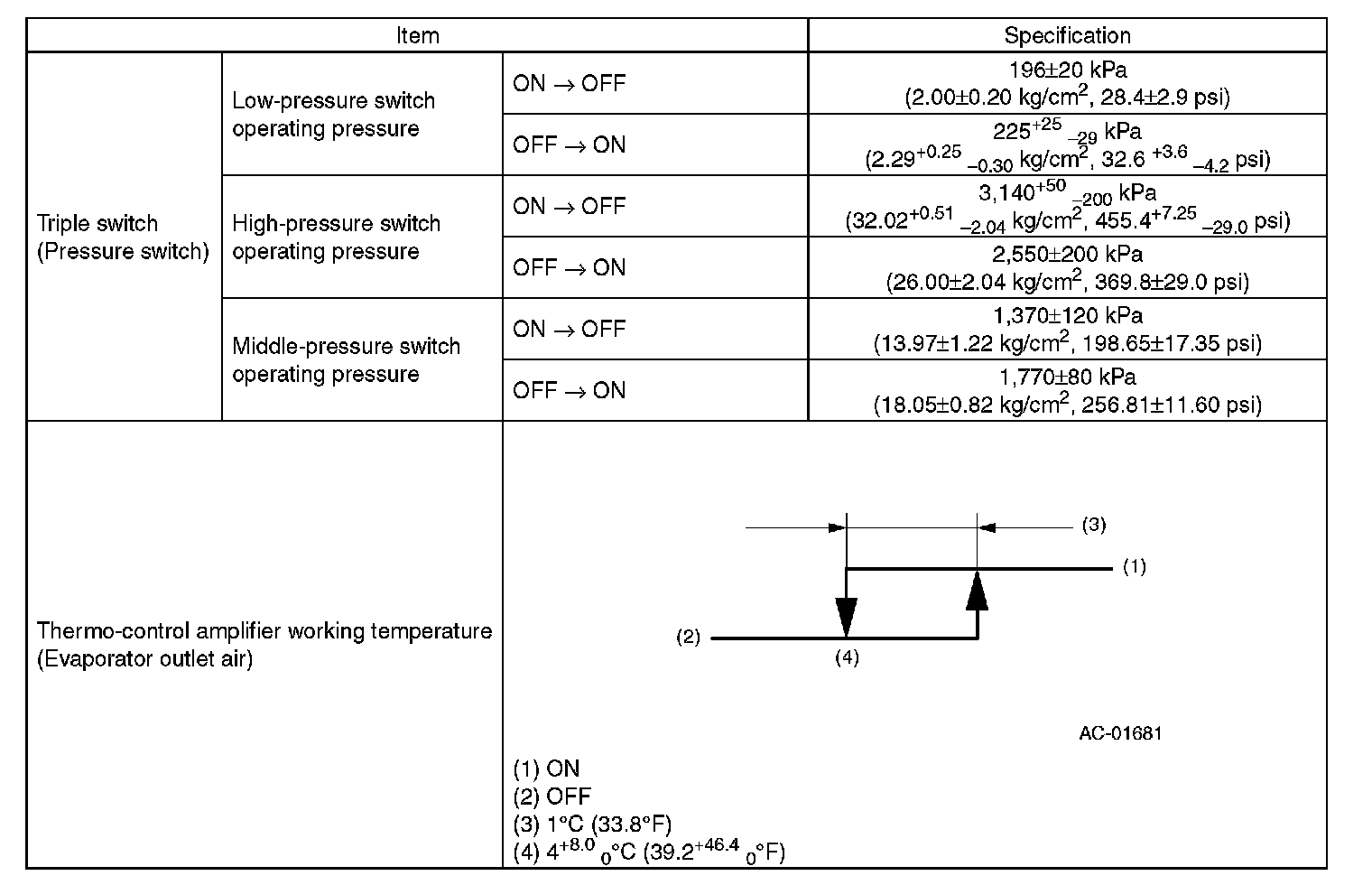

A/C System - Auto A/C Model (Part 2):






- Manual A/C model

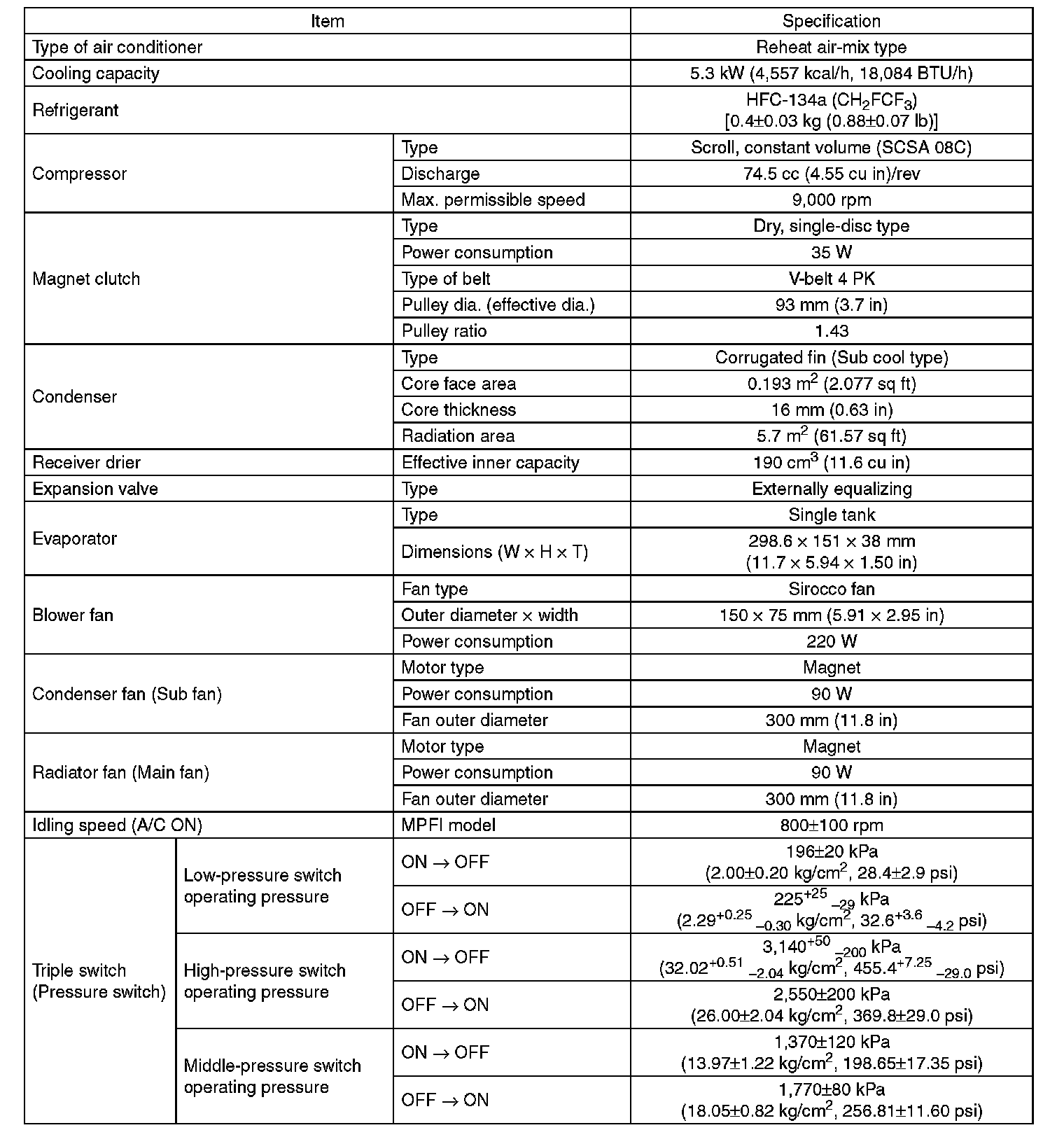

A/C System - Manual A/C Model (Part 1):

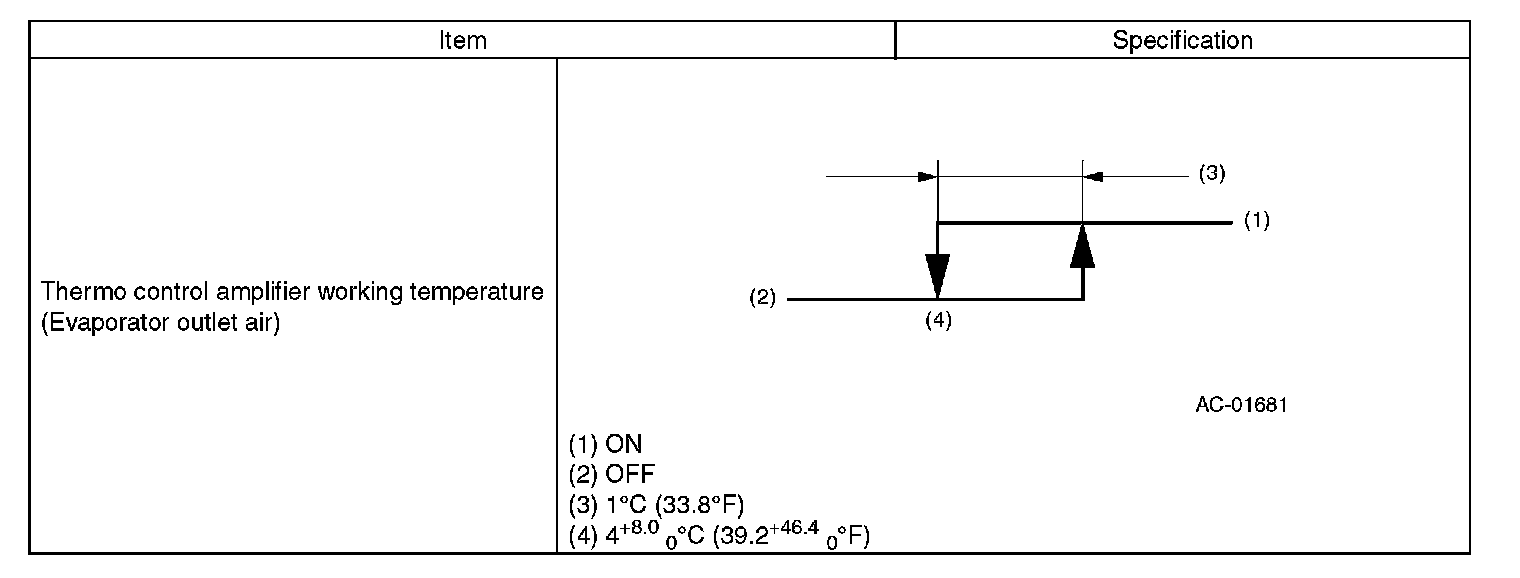

A/C System - Manual A/C Model (Part 2):
