Flywheel

Flywheel

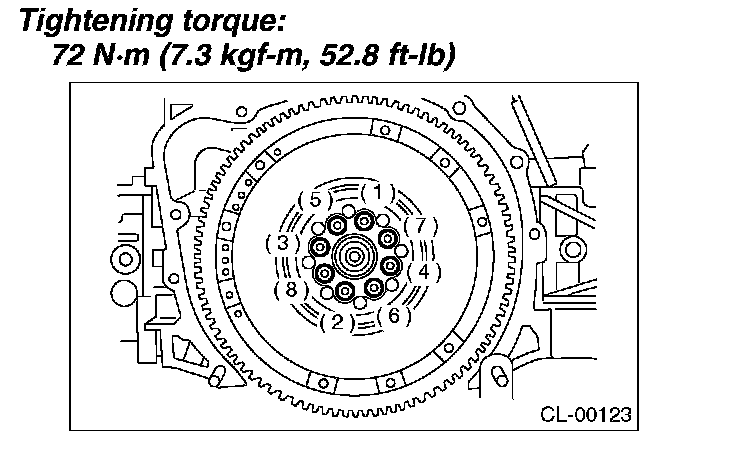

5MT TURBO MODEL





Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in crisscross order.

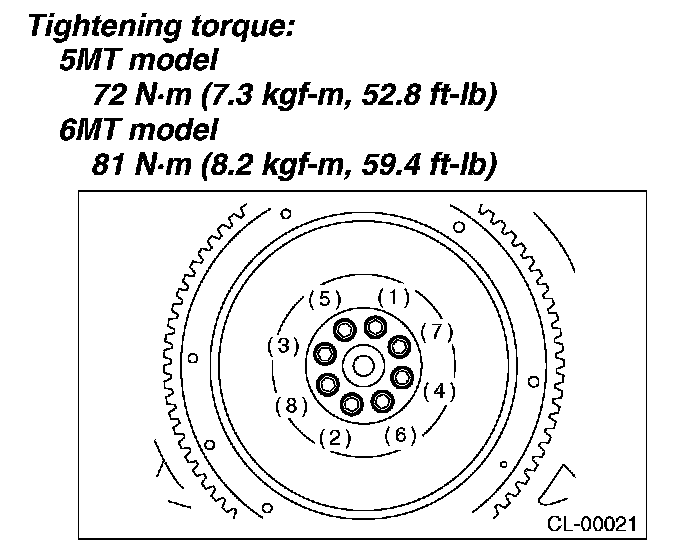

EXCEPT FOR 5MT TURBO MODEL





Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in crisscross order.
