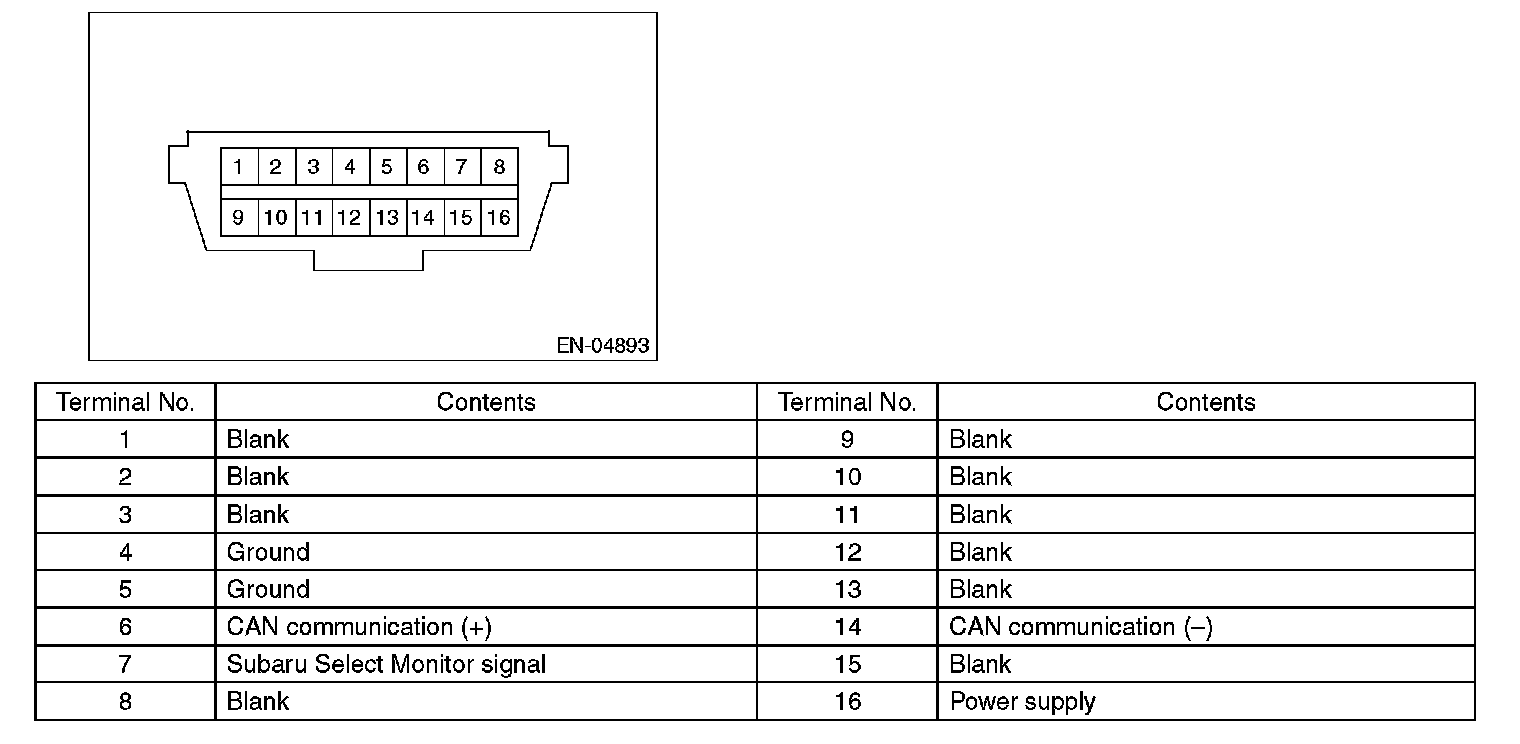

Data Link Connector
Data Link ConnectorNOTE: This connector is used for Subaru Select Monitor.
CAUTION: Do not connect any scan tools except Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged.
NOTE: This connector is used for Subaru Select Monitor.
CAUTION: Do not connect any scan tools except Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged.
