Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL
1. Remove the collector cover.

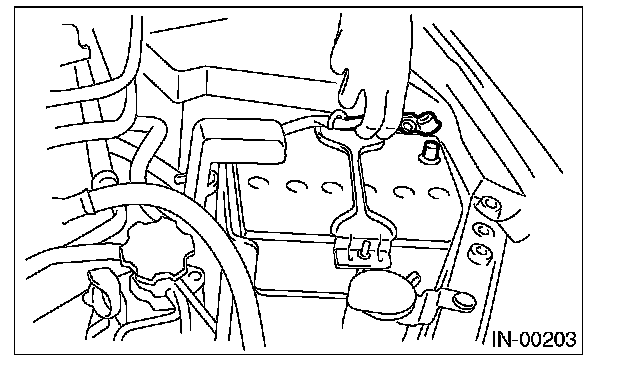

2. Disconnect the ground cable from the battery.

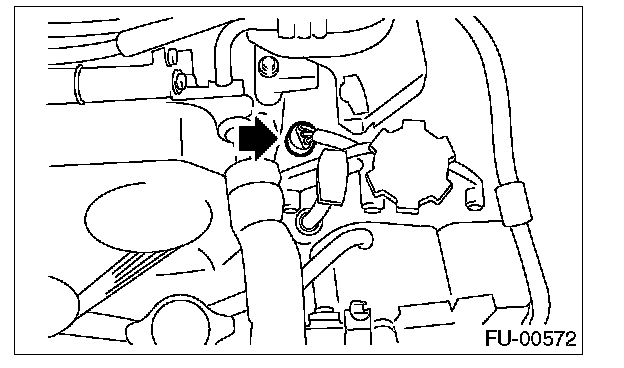

3. Disconnect the connectors from the engine coolant temperature sensor.

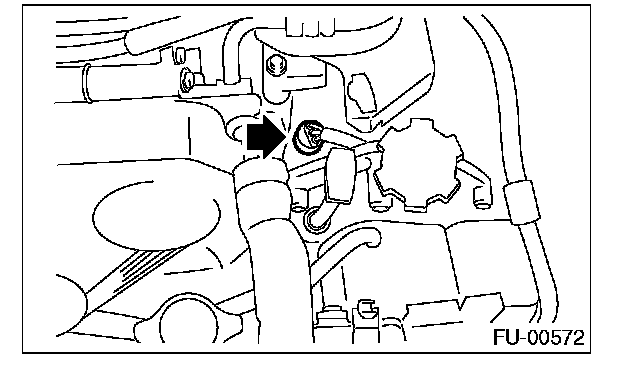

4. Remove the engine coolant temperature sensor.

INSTALLATION
Install in the reverse order of removal.






Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
