Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor

REMOVAL
1. Remove the collector cover.

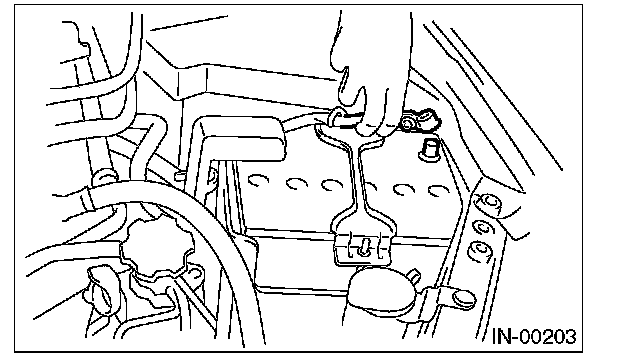

2. Disconnect the ground cable from the battery.
3. Remove the air intake chamber.

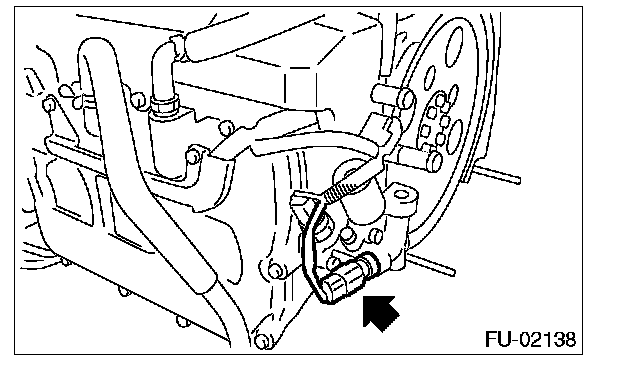

4. Disconnect the connector from the oil temperature sensor.




5. Remove the oil temperature sensor.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
