Electrical Specification
ELECTRICAL SPECIFICATION

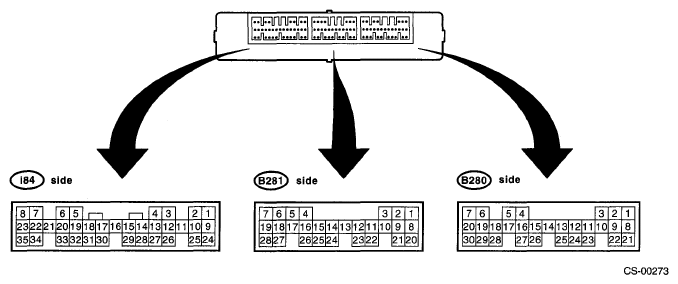

| Item | To connector No. | Terminal No. | Input/Output signal |
|---|---|---|---|
| Measured value and measuring conditions | |||
| Backup power supply | B281 | 1 | 9-16V |
| 2 | |||
| i84 | 7 | ||
| Ignition power supply | B280 | 1 | 10 - 15V when ignition switch is at ON or START. |
| i84 | 24 | 10 - 15V when ignition switch is at ACC. | |
| TCM ("P" range) | B280 | 20 | Pulse signal |
| B280 | 30 | ||
| Stop light switch | B281 | 23 | 9 - 16V when stop light switch is ON. 0 V when stop light switch is OFF. |
| "P" range switch | B281 | 13 | 0 V when select lever is in "P" range. 9 - 16 V when select lever is in other positions than "P" range. |
| Shift lock solenoid signal | i84 | 6 | 8.5 - 16 V when shift lock is released. 0 V when shift lock is operating. |
| Key warning switch signal | B281 | 7 | 9 - 16 V when key is inserted. 0 V when key is removed. |
| Key lock solenoid signal | B280 | 5 | 7.5 - 16 V when ignition switch is turned ON, with select lever in "P" range and brake switch ON. 0 V at other conditions than above. |
| Ground | B280 | 22 | - |
| i84 | 21 | ||
| B281 | 8 | ||
| 9 |
