AT Shift Lock Control System: Location

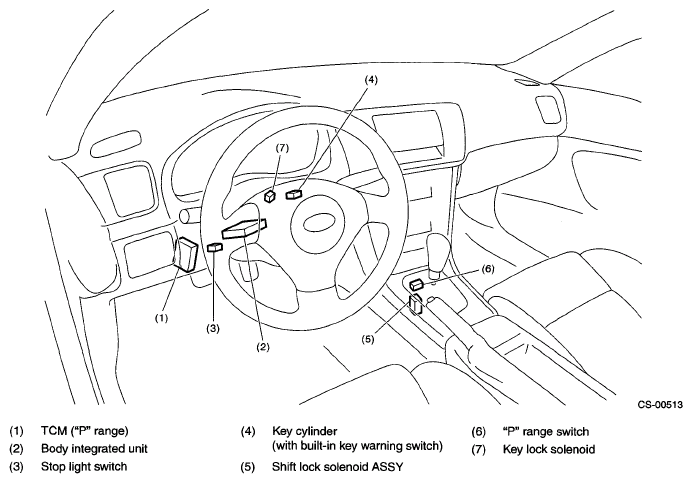

Fig 1: Identifying AT Shift Lock Control System Location (1 Of 2)
G05341787Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying AT Shift Lock Control System Location (2 Of 2)
G05341788Courtesy of SUBARU OF AMERICA, INC.
