5MT Model

NOTE:

Clean all the parts before assembly.
Apply grease [KOPR-KOTE (Part No. 003603001) or equivalent] to each part.

Mount the bushing and cushion rubber to the stay.

Fig 1: Identifying Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the bushing and spacer to boss.

Fig 2: Identifying Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, install the boss to the joint.
Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Identifying Joint Boss
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

Fig 4: Identifying Spring Pin And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing and O-ring, and then install to gear shift lever.

Fig 5: Identifying Bushing And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Fig 6: Identifying Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap ring.

Fig 7: Identifying Washer And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever and rod into boot hole.
Install the rod.
Tightening torque: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 8: Identifying Gear Shift Lever And Rod
Courtesy of SUBARU OF AMERICA, INC.
Install a new lock wire.

Fig 9: Identifying Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Install the lock wire to the stay groove.
- Bend the extra wire to the same direction of lock wire winding.

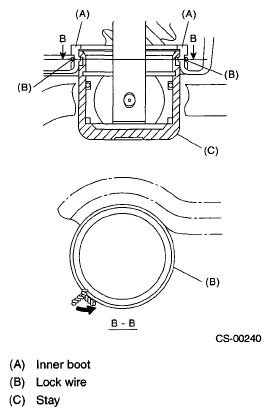

  Fig 10: Identifying Lock Wire In Stay Groove
  Courtesy of SUBARU OF AMERICA, INC.
