Components With Torque Specifications

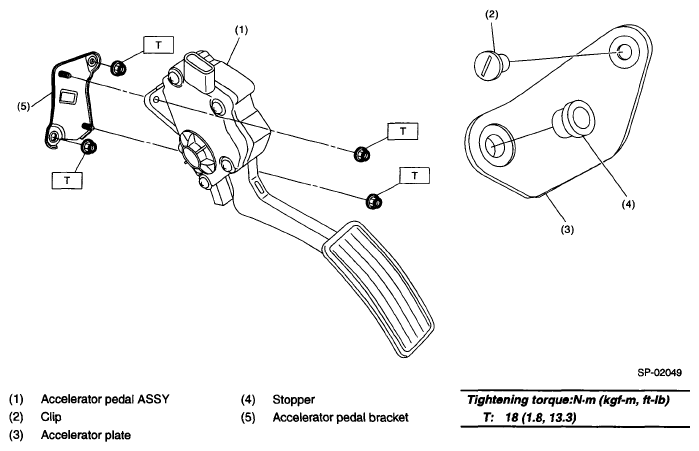

Fig 1: Speed Control System Replacement Components With Torque Specifications
G05665807Courtesy of SUBARU OF AMERICA, INC.
