When Folded Forward

When the reclining lever is operated, the lock plate is pulled up with the wire. The pulled up lock plate is maintained at that position, and it will become possible to fold forward.

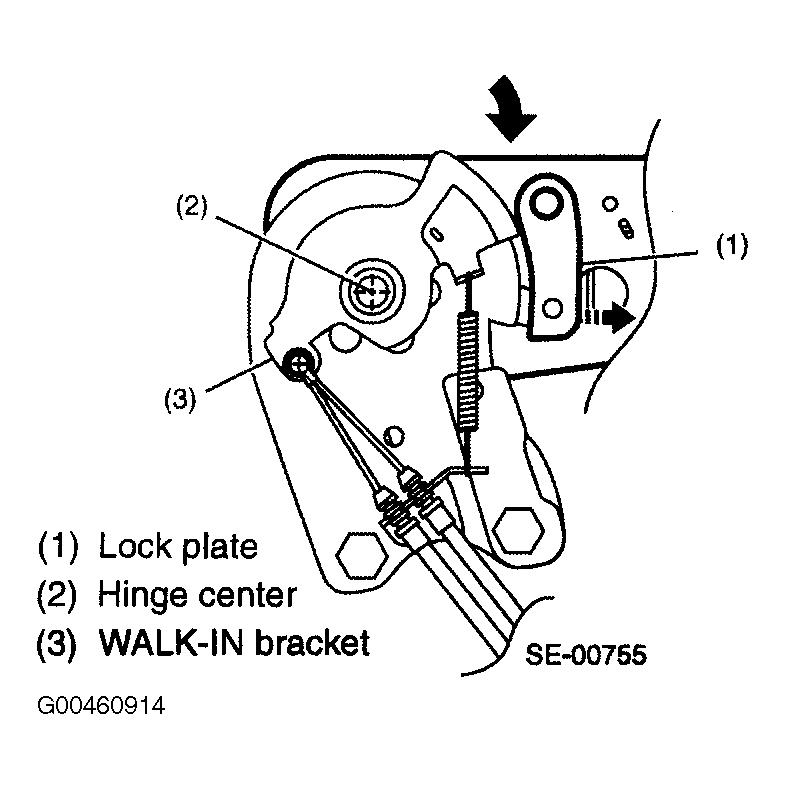

Fig 1: Identifying Folding Mechanism In Folded Position

Courtesy of SUBARU OF AMERICA, INC.
