Transmission Case And Control Device

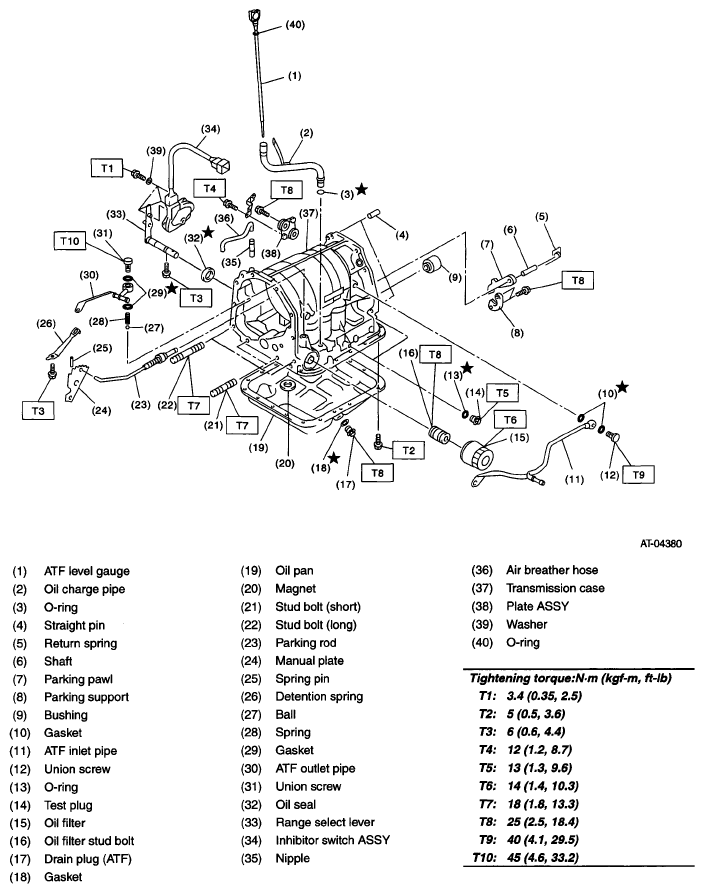

Fig 1: Transmission Case And Control Device Replacement Components With Torque Specifications
G05668189Courtesy of SUBARU OF AMERICA, INC.
