Front Door Glass: Removal

Remove the front door trim.
< Ref. to REMOVAL , Door Trim. >
Remove the sealing cover. < Ref. to REMOVAL , Front Sealing Cover. >
Remove the outer mirror assembly. < Ref. to REMOVAL , Outer Mirror Assembly. >
Remove clip (A), and remove the front end of the weather strip.

Fig 1: Identifying Front End Of Weather Strip Clip
Courtesy of SUBARU OF AMERICA, INC.

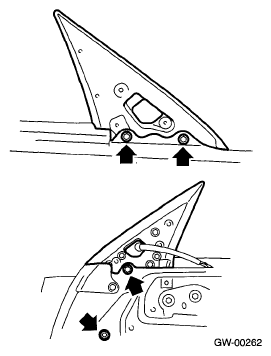

Remove the gusset.

Fig 2: Locating Gusset Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the stabilizers.

Fig 3: Locating Stabilizers Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove clips (A), and remove the rear end of the weather strip.

Fig 4: Locating Rear End Of Weather Strip Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove screw (A) from the rear end of the weather strip outer, to remove the weather strip outer.

Fig 5: Removing Rear End Of Weather Strip Outer Screw
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws to remove the guide assembly.
Operate the power window switch to move the glass to the position shown in the figure, then remove the two nuts through the service holes.

Fig 6: Locating Guide Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the door glass.

Fig 7: Identifying Door Glass
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Since the gear may be disengaged, do not turn regulator in the closing direction after removing glass.
- Avoid impact and damage to the glass.
