Drive Cycle C

Drive the vehicle with following drive patterns.

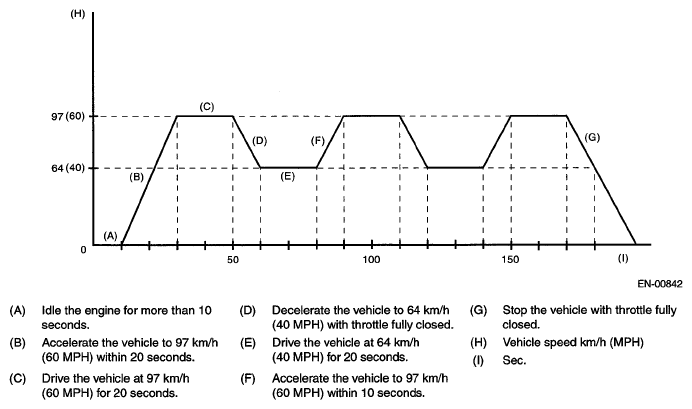

Fig 1: Driving Pattern Graph

Courtesy of SUBARU OF AMERICA, INC.

This drive cycle covers HO2S heater control, MAP/MAF throttle position correlation, MAF circuit range, HO2S circuit, fuel system rich/lean, misfire, intake manifold runner control and post catalyst fuel trim system.
