Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

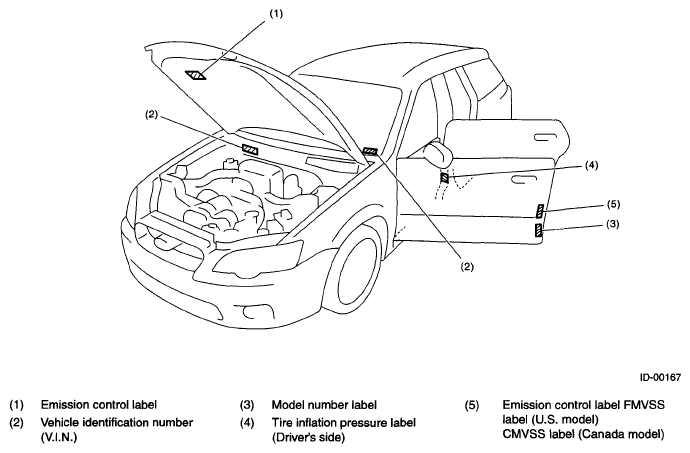

• POSITIONING OF THE PLATE LABEL FOR IDENTIFICATION
  Fig 1: Identifying Positioning Of Plate Label For Identification

  Courtesy of SUBARU OF AMERICA, INC.
• ENGINE
  Fig 2: Identifying Identification Number & Label Locations - Engine

  Courtesy of SUBARU OF AMERICA, INC.
• AUTOMATIC TRANSMISSION 4AT
  Fig 3: Identifying Identification Number & Label Locations - Automatic Transmission 4AT

  Courtesy of SUBARU OF AMERICA, INC.

5AT

Fig 4: Identifying Identification Number & Label Locations - Automatic Transmission 5AT

Courtesy of SUBARU OF AMERICA, INC.

• MANUAL TRANSMISSION 5MT (non-turbo model)
  Fig 5: Identifying Identification Number & Label Locations - Manual Transmission 5MT (Non-Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

  5MT (turbo model)

  Fig 6: Identifying Identification Number & Label Locations - Manual Transmission 5MT (Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

  6MT

  Fig 7: Identifying Identification Number & Label Locations - Manual Transmission 6MT

  Courtesy of SUBARU OF AMERICA, INC.

• REAR DIFFERENTIAL T-TYPE
  Fig 8: Identifying Identification Number & Label Locations - Rear Differential T-Type

  Courtesy of SUBARU OF AMERICA, INC.

  VA1-TYPE

  Fig 9: Identifying Identification Number & Label Locations - Rear Differential VA1-Type

  Courtesy of SUBARU OF AMERICA, INC.

  VA2-TYPE

  Fig 10: Identifying Identification Number & Label Locations - Rear Differential VA2-Type

  Courtesy of SUBARU OF AMERICA, INC.

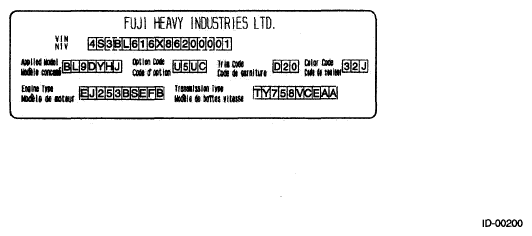

• MODEL NUMBER LABEL
  Fig 11: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
