Oil Pump
H4 model

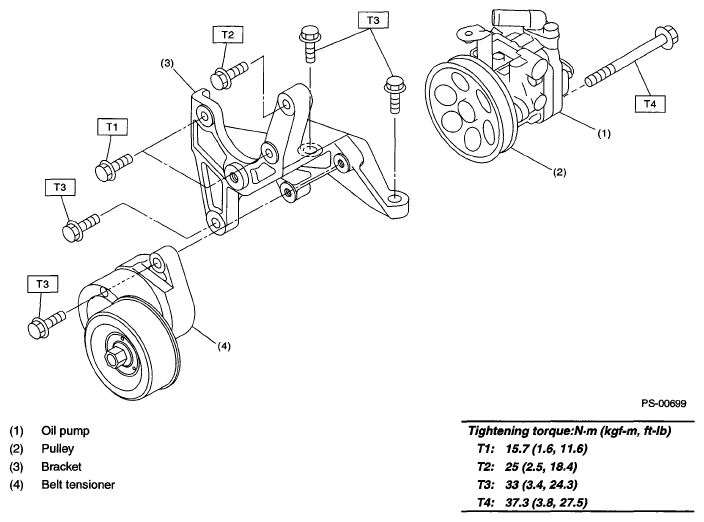

Fig 1: Oil Pump Replacement Components (H4 Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
H6 model

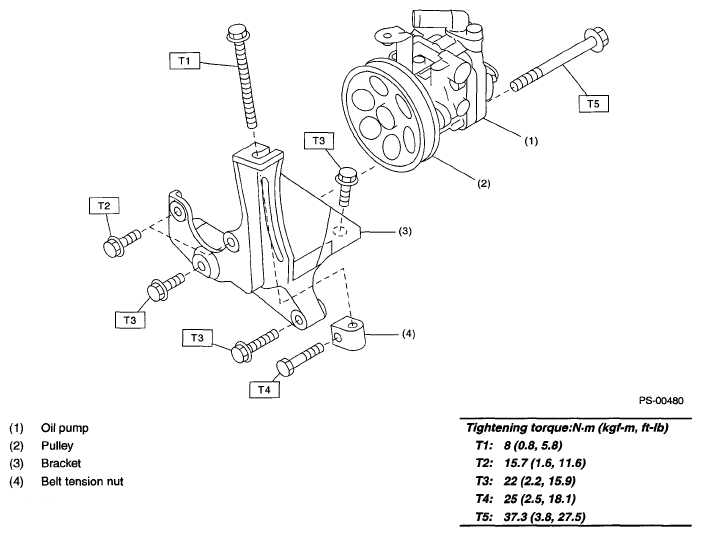

Fig 2: Oil Pump Component (H6 Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
