Power Assisted System
Hose and tank

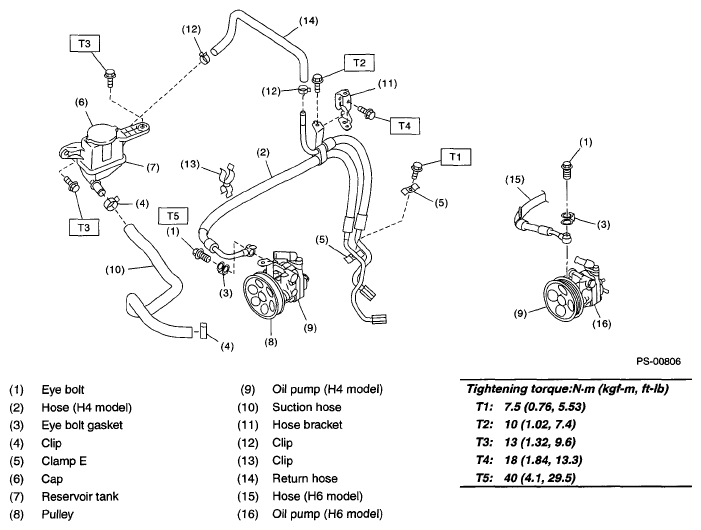

Fig 1: Hose And Tank Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Gearbox

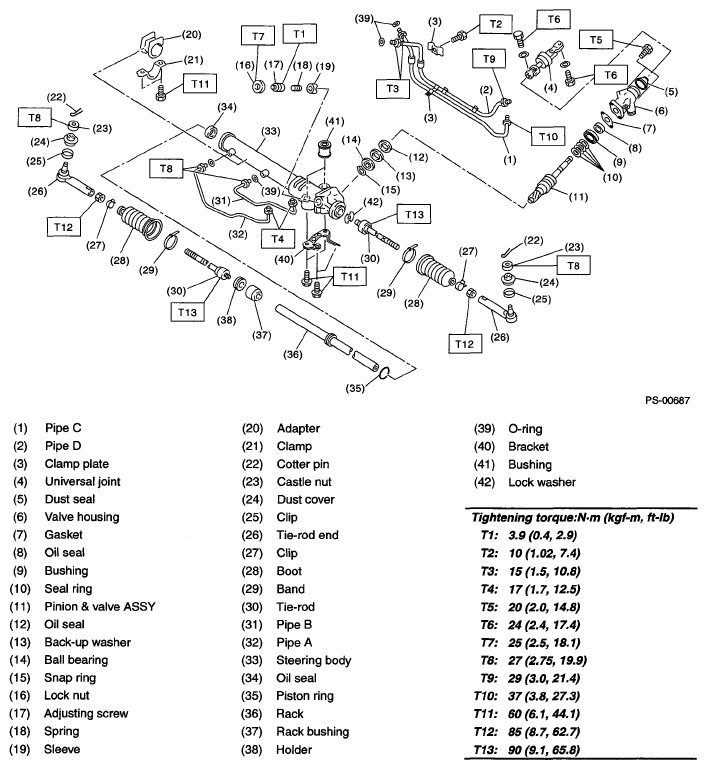

Fig 2: Exploded View Of Gearbox With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
