Components With Torque Specifications

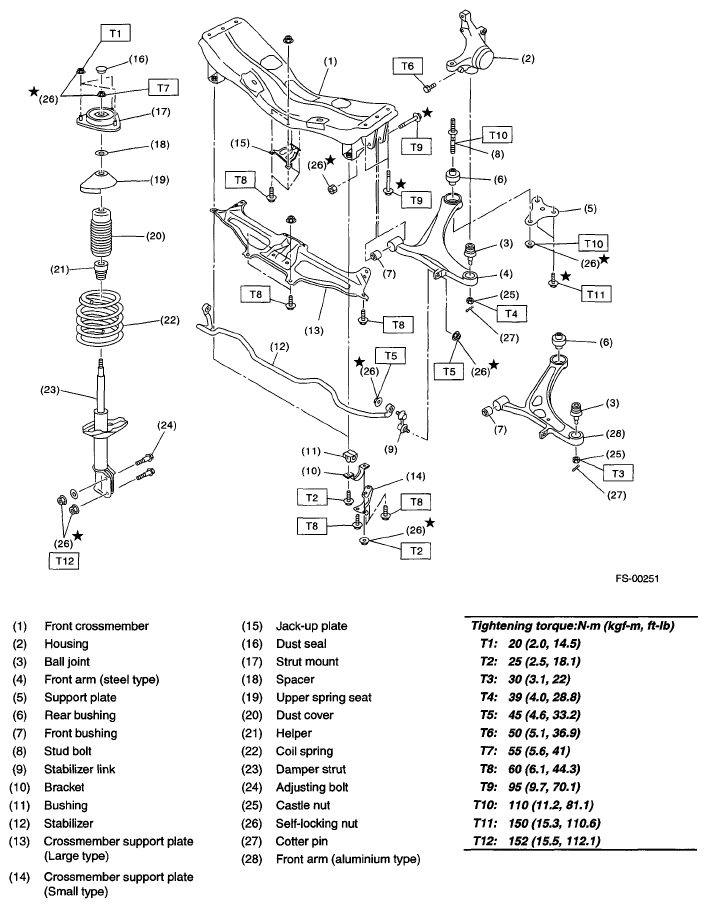

Fig 1: Exploded View Of Front Suspension With Torque Specifications
G05342807Courtesy of SUBARU OF AMERICA, INC.
